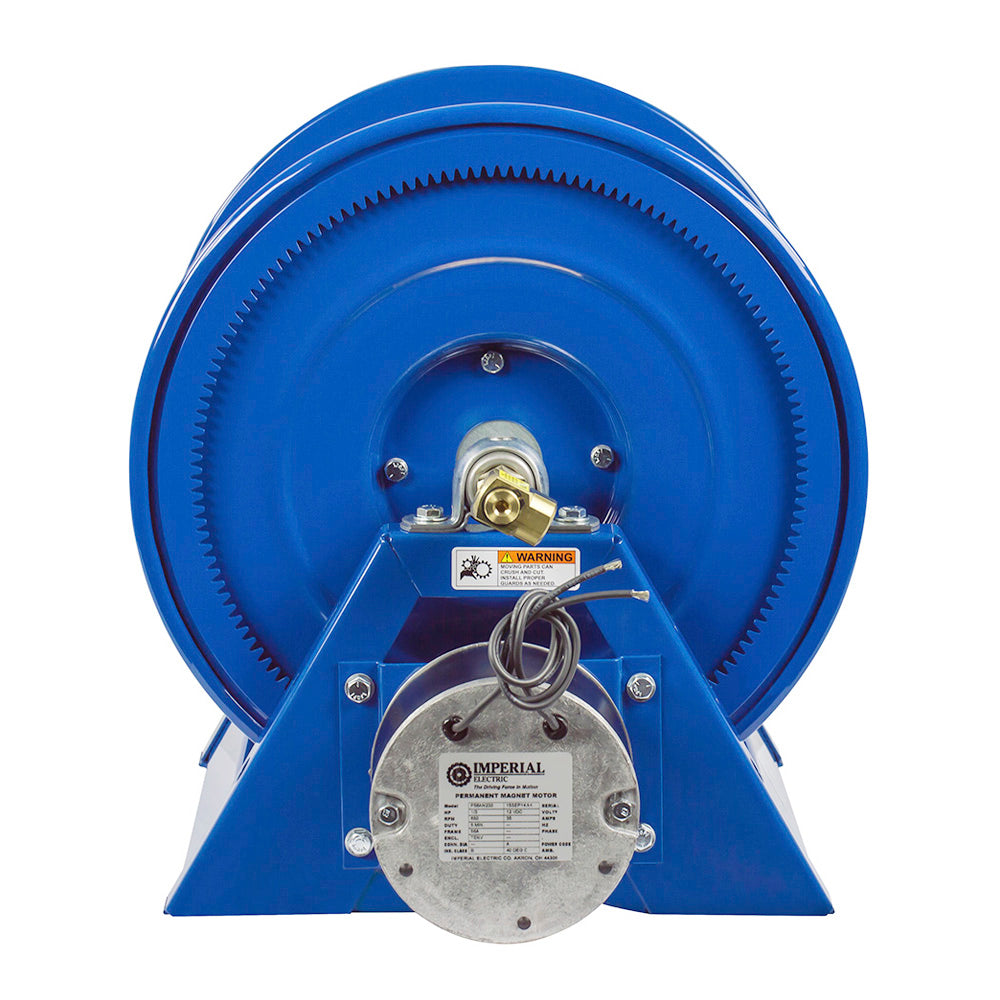

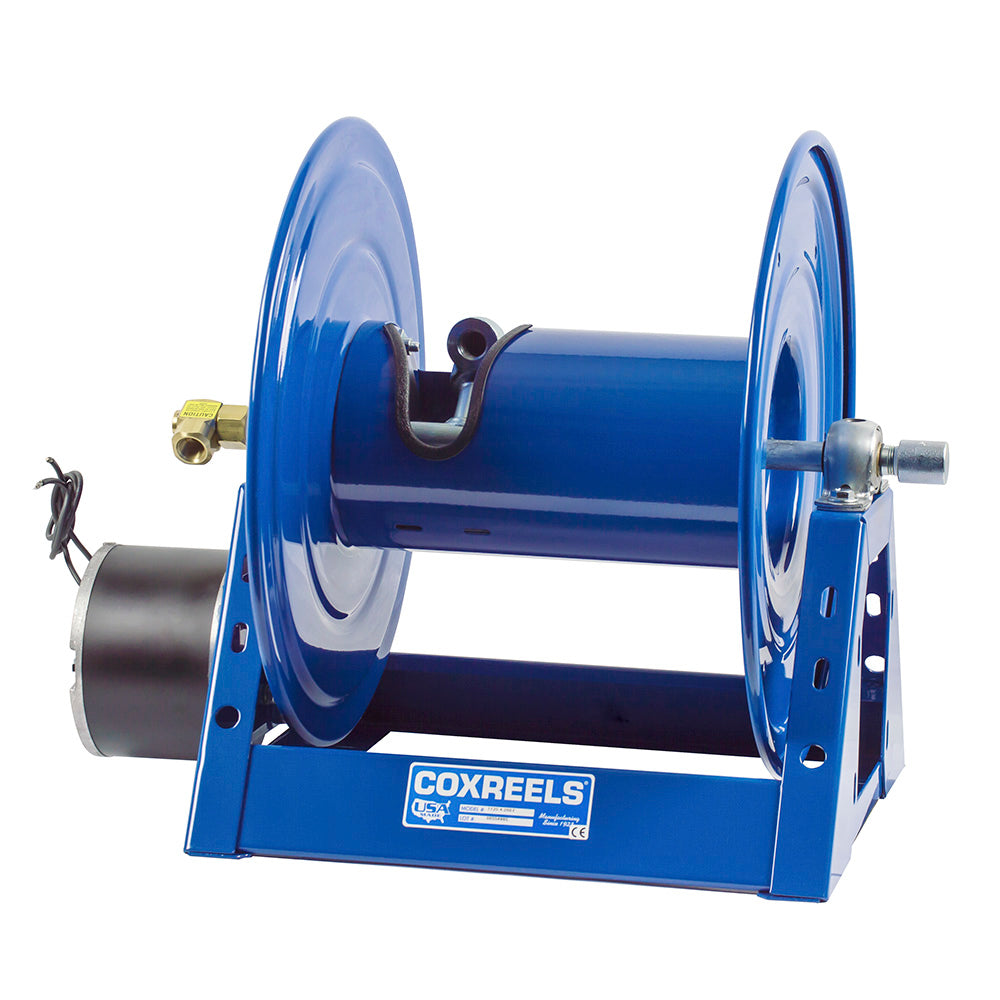

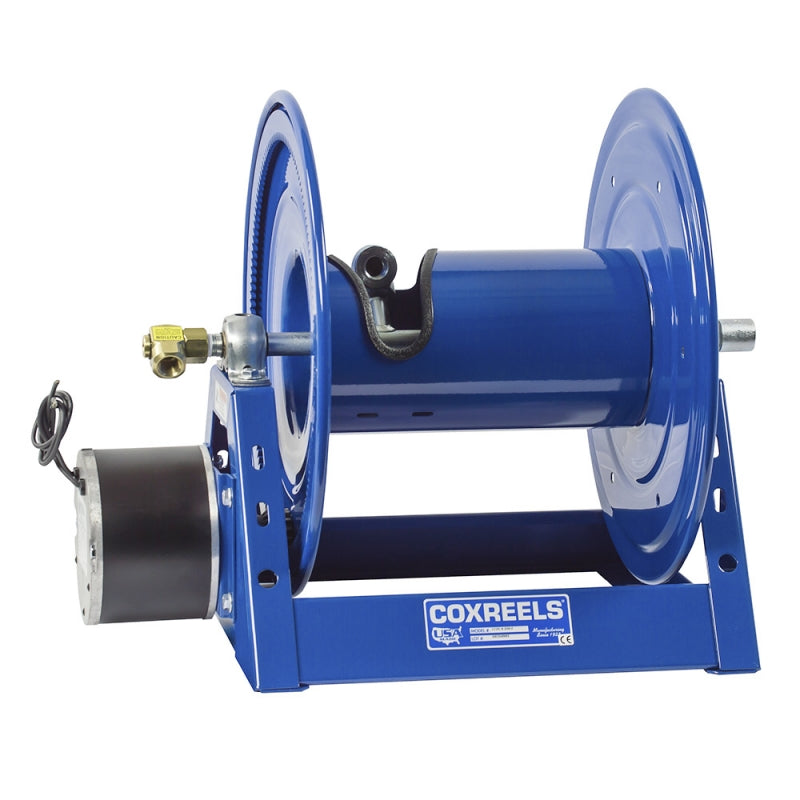

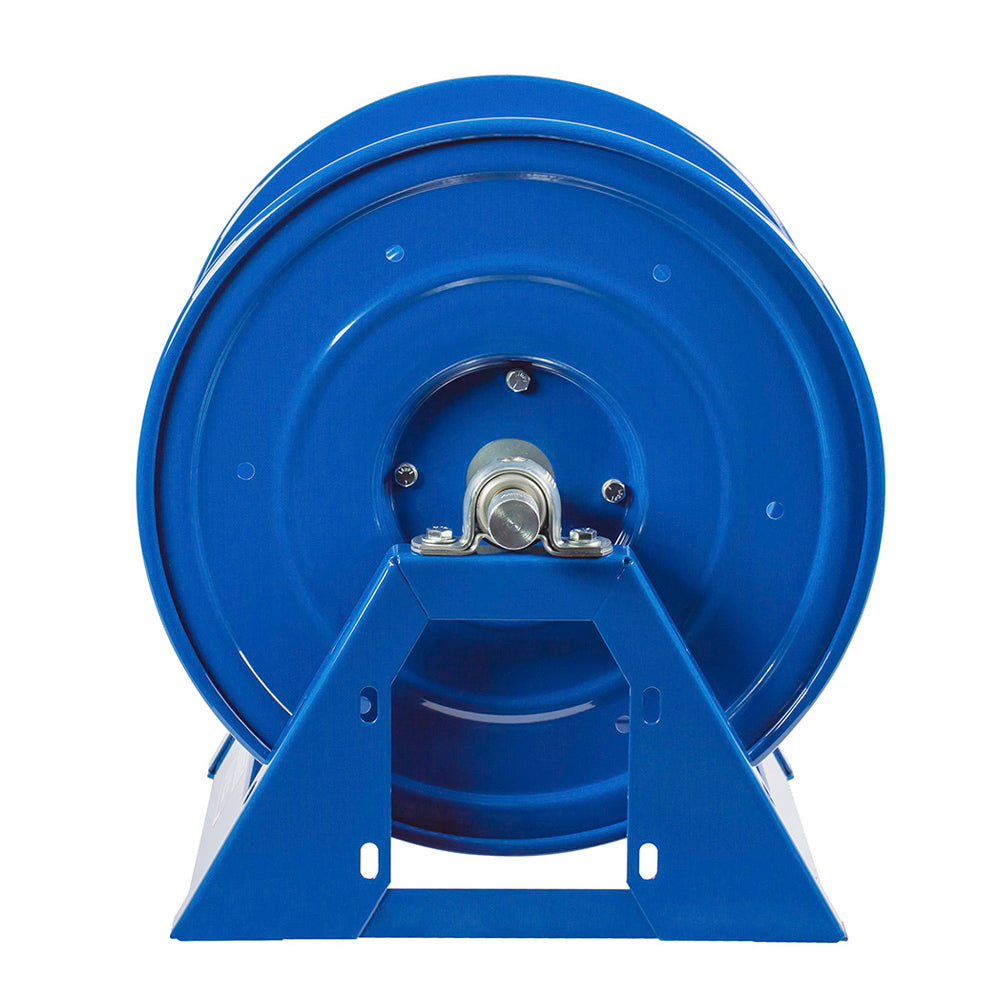

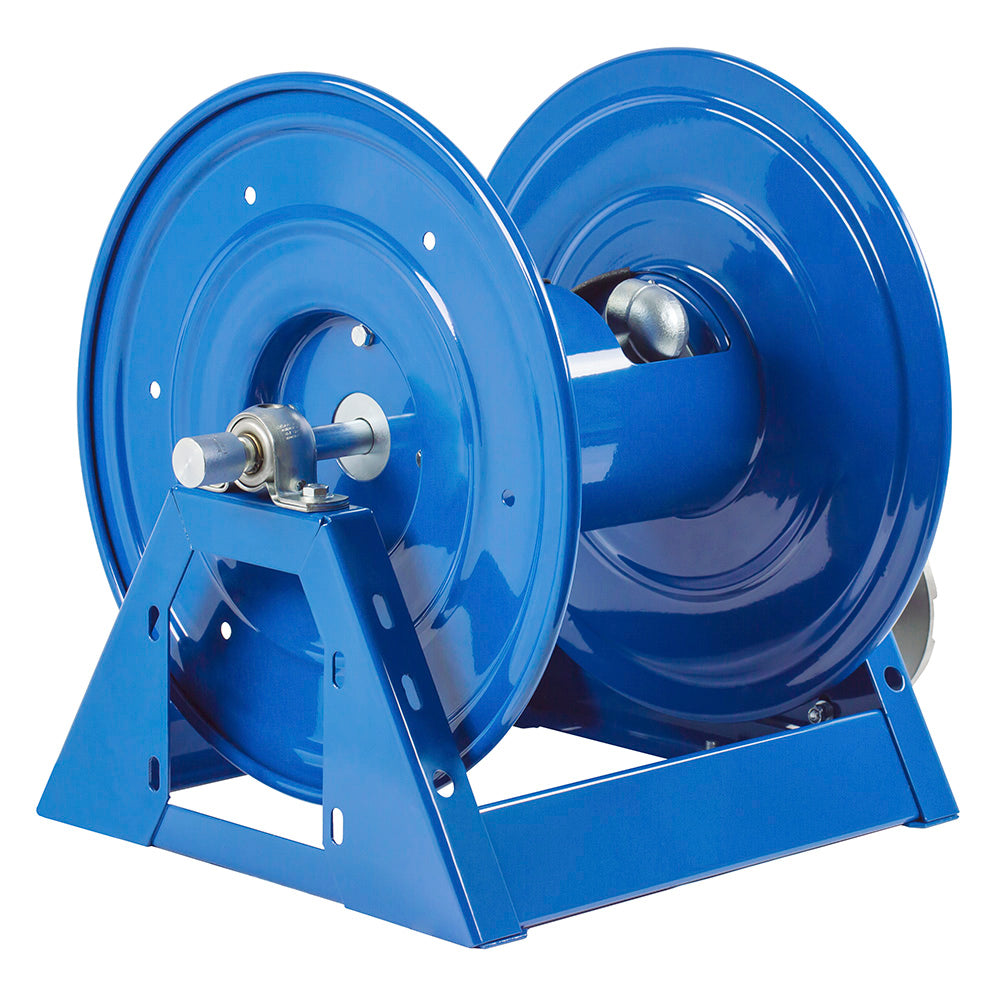

The 1/2" COXREELS 1125 Series motorized hose reel gives you powered hose retrieval in a heavy-duty reel built for truck, trailer, skid, and stationary equipment installations. These models handle 1/2" ID hose at pressures up to 3,000 PSI, with capacities from 100 to 450 feet so you can match the reel to the amount of hose your setup actually needs.
COXREELS builds the 1125 Series around a welded steel A-frame with a direct gear drive for smooth powered retraction without a chain. The low-profile outlet riser and open drum slot help the hose lay flat on the drum, while permanently lubricated self-aligning bearings support smooth reel operation. Choose the standard 12V DC electric motor or the heavier explosion-proof 12V DC motor configuration depending on your application.
Best For
- Pressure washing and washdown equipment
- Truck, trailer, and skid-mounted systems
- Industrial and commercial fluid-handling setups
- Applications that need powered retrieval of long 1/2" hose runs
Motor Options
- E – 12V DC Electric: 1/3 HP reversible electric motor for standard powered hose retrieval
- ED – 12V DC Explosion-Proof Electric: 1/2 HP reversible explosion-proof electric motor for applications requiring the ED motor configuration
Shared Specifications
- Manufacturer: COXREELS
- Series: 1125 Series
- Hose ID: 1/2"
- Maximum Hose OD: 7/8"
- Maximum Pressure: 3,000 PSI
- Hose Included: No
- Rewind: Motorized direct gear drive
- Frame Construction: Heavy-duty welded steel A-frame
- Finish: Chip-resistant and rust-inhibiting CPC powder coat
- Bearings: Permanently lubricated self-aligning pillow block bearings
- Manufacturer Warranty: 2-year limited warranty
