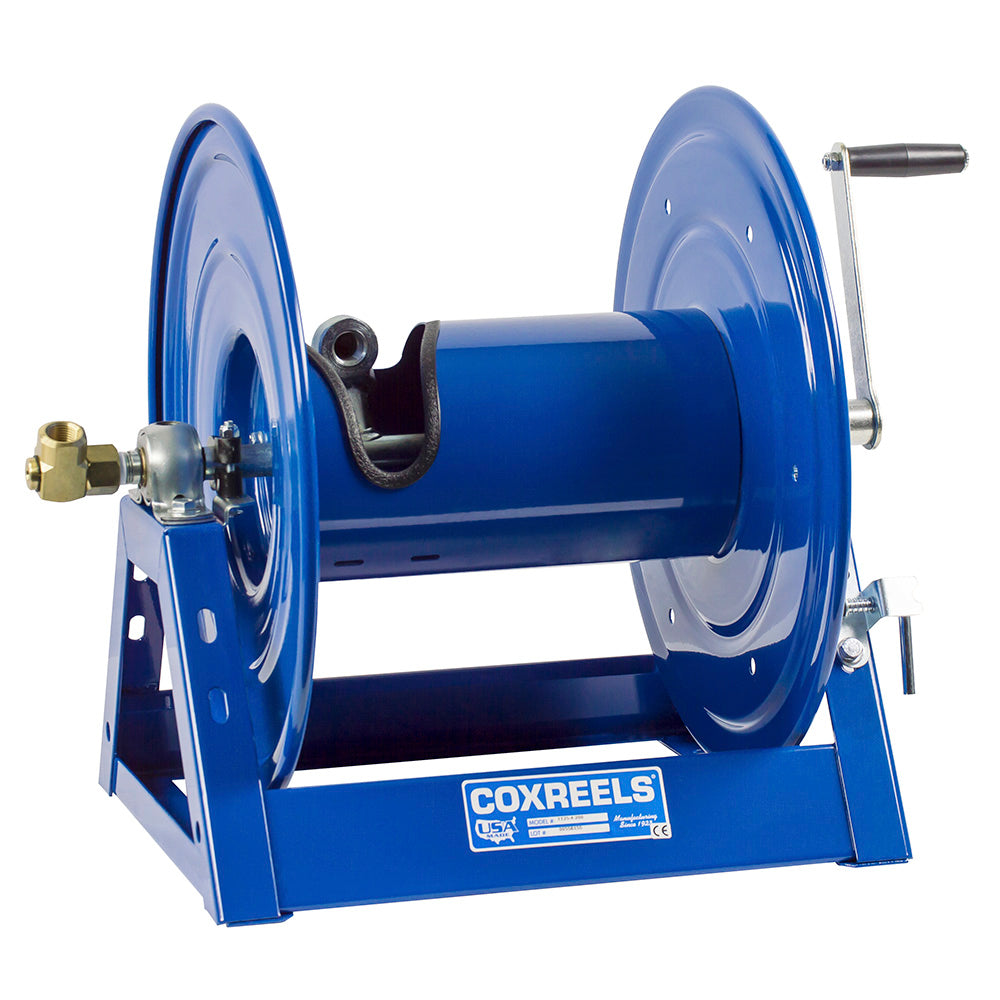

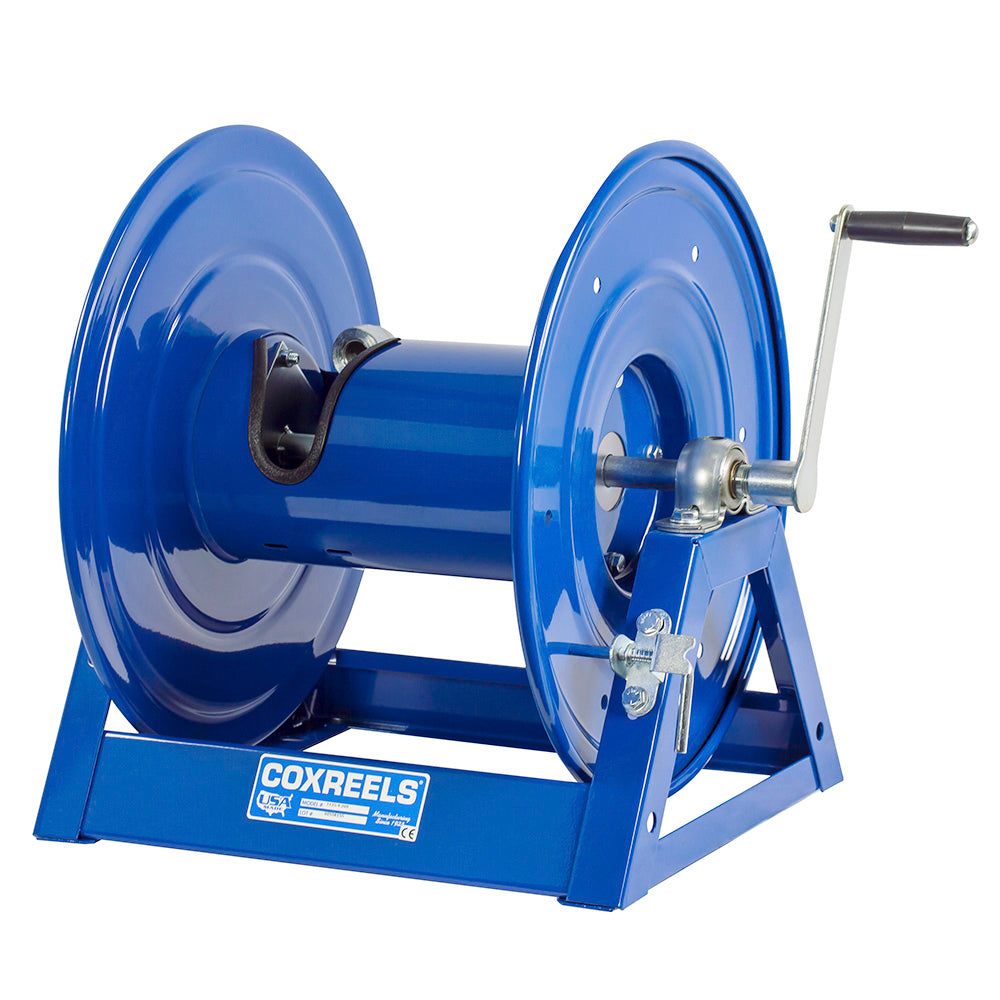

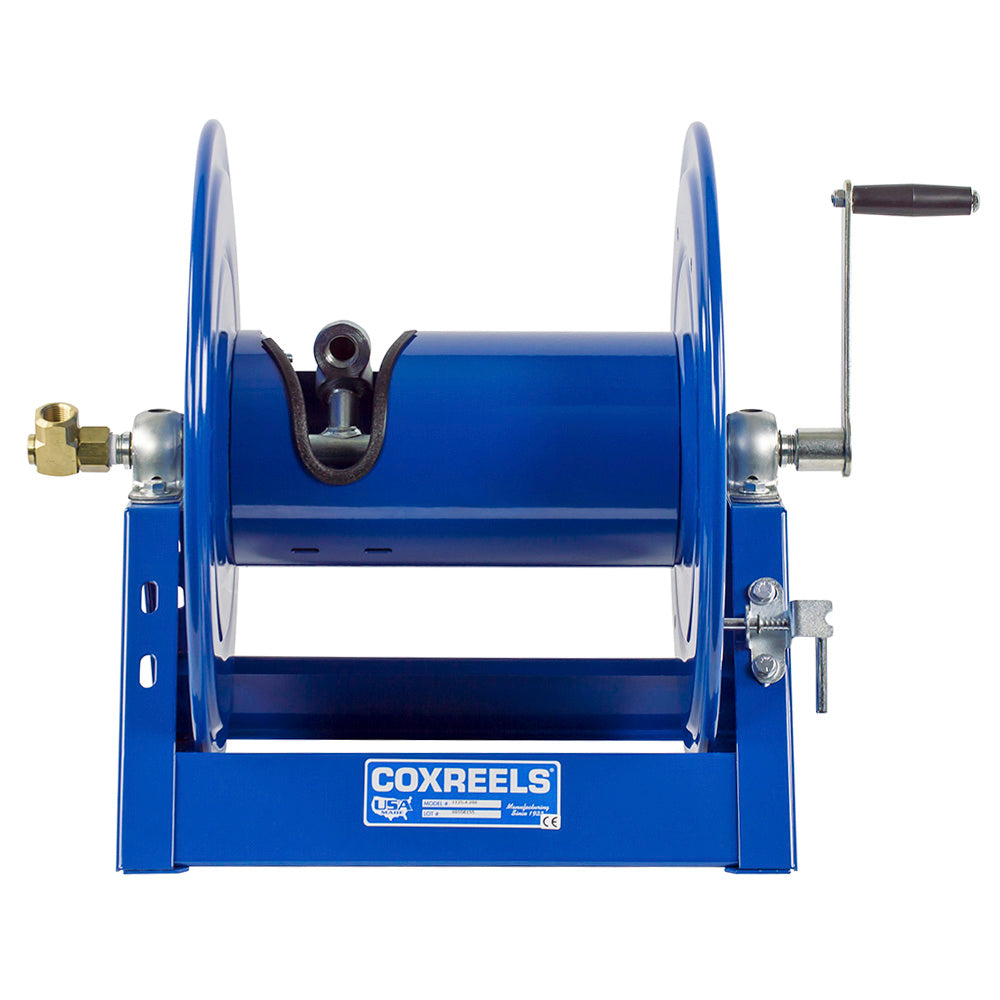

The 1/2" COXREELS 1125 Series hand crank hose reel gives you a simple, dependable way to manage long runs of pressure hose without needing electrical power. Built for 1/2" ID hose and rated up to 3,000 PSI, these reels are available in capacities from 100 to 450 feet so you can match the reel size to your truck, trailer, skid, or stationary setup.

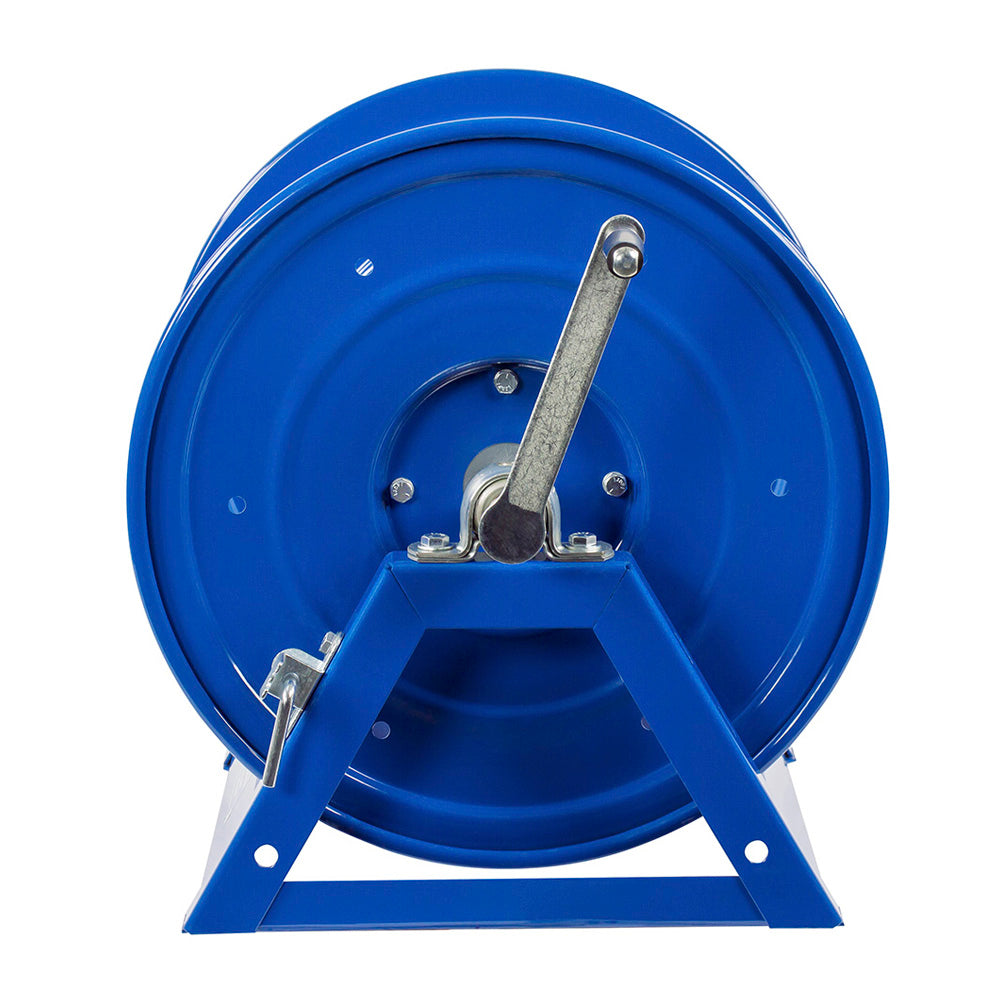

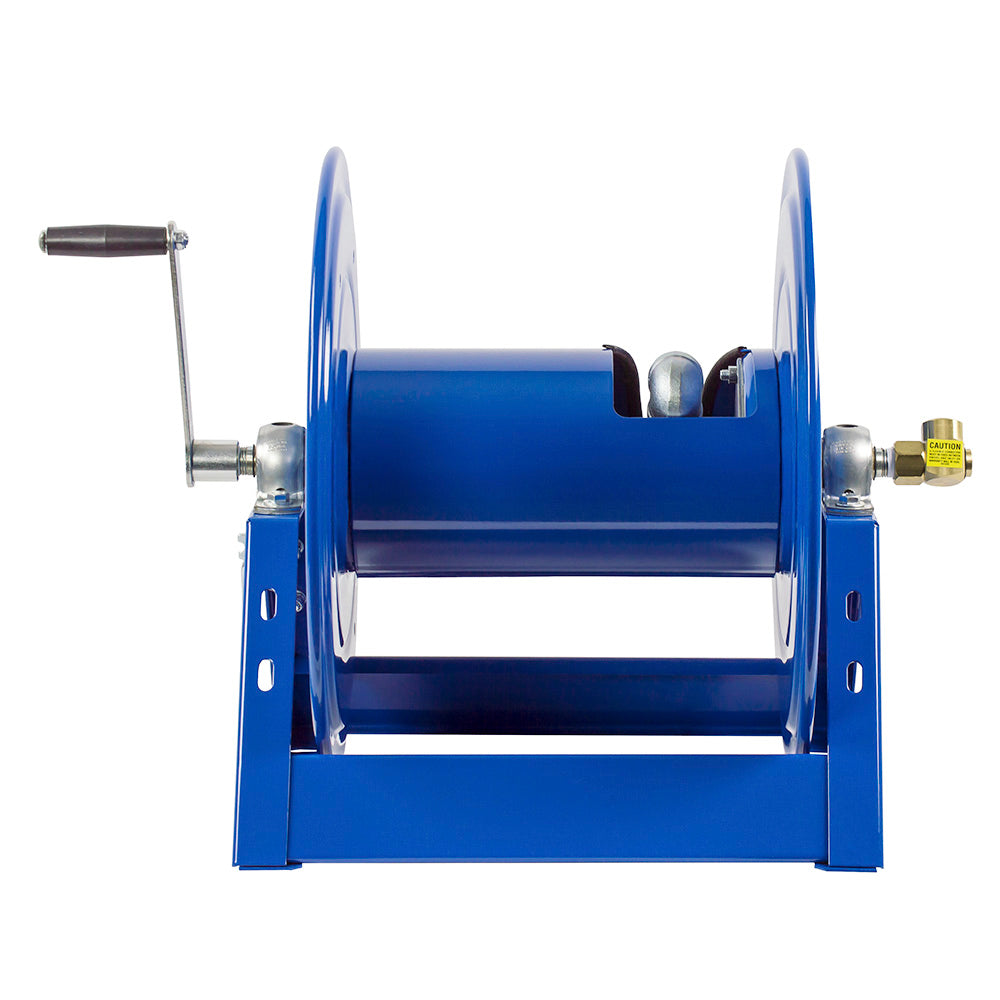

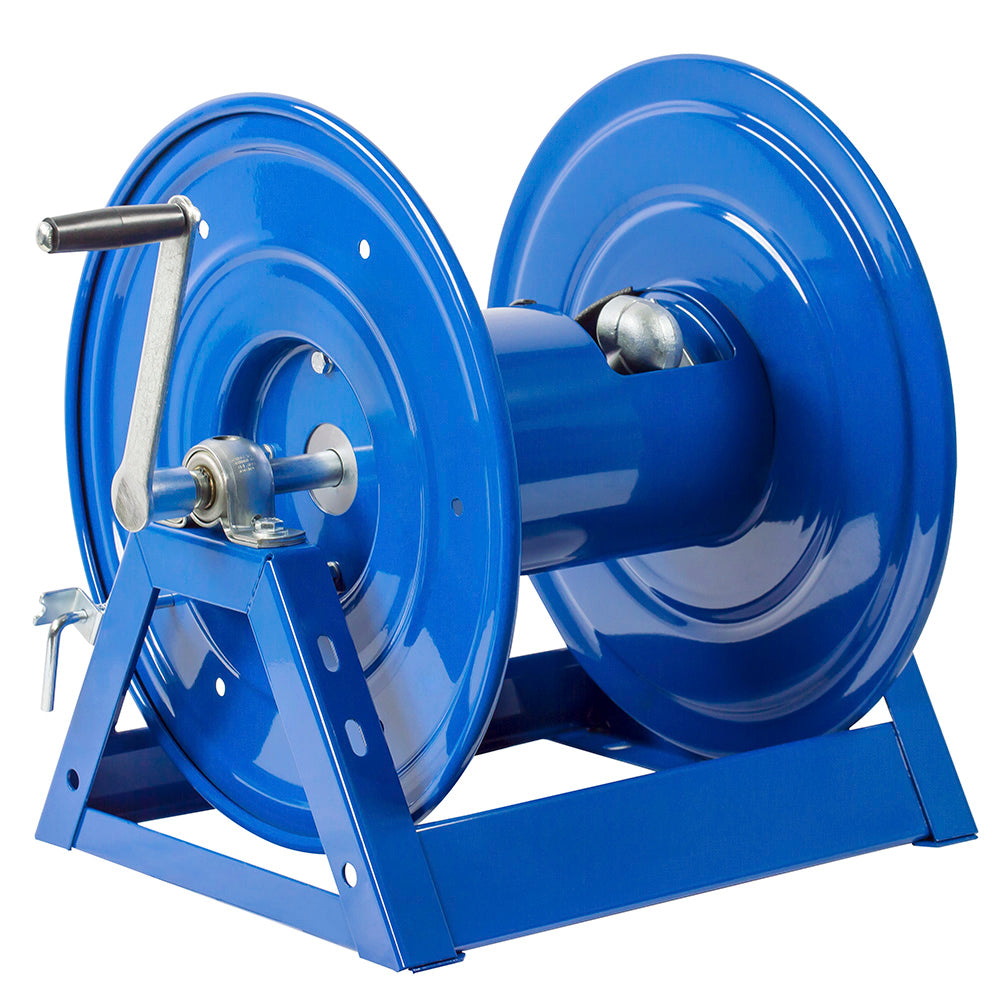

COXREELS builds the 1125 Series around a one-piece welded steel A-frame with a front bevel-geared hand crank for mechanical hose retrieval. The low-profile outlet riser and open drum slot help the hose wrap flat without crimping, while permanently lubricated self-aligning bearings keep the reel turning smoothly. An adjustable tension brake helps prevent free-wheeling, and a long-handled locking pin secures the reel during transport or storage.
Best For
- Pressure washing and washdown equipment
- Truck, trailer, and skid-mounted systems
- Industrial and commercial fluid-handling setups
- Applications where a powered hose reel isn't needed
Shared Specifications
- Manufacturer: COXREELS
- Series: 1125 Series
- Rewind Type: Hand crank
- Hose ID: 1/2"
- Maximum Hose OD: 7/8"
- Maximum Pressure: 3,000 PSI
- Hose Included: No
- Frame: One-piece welded 12-gauge steel A-frame

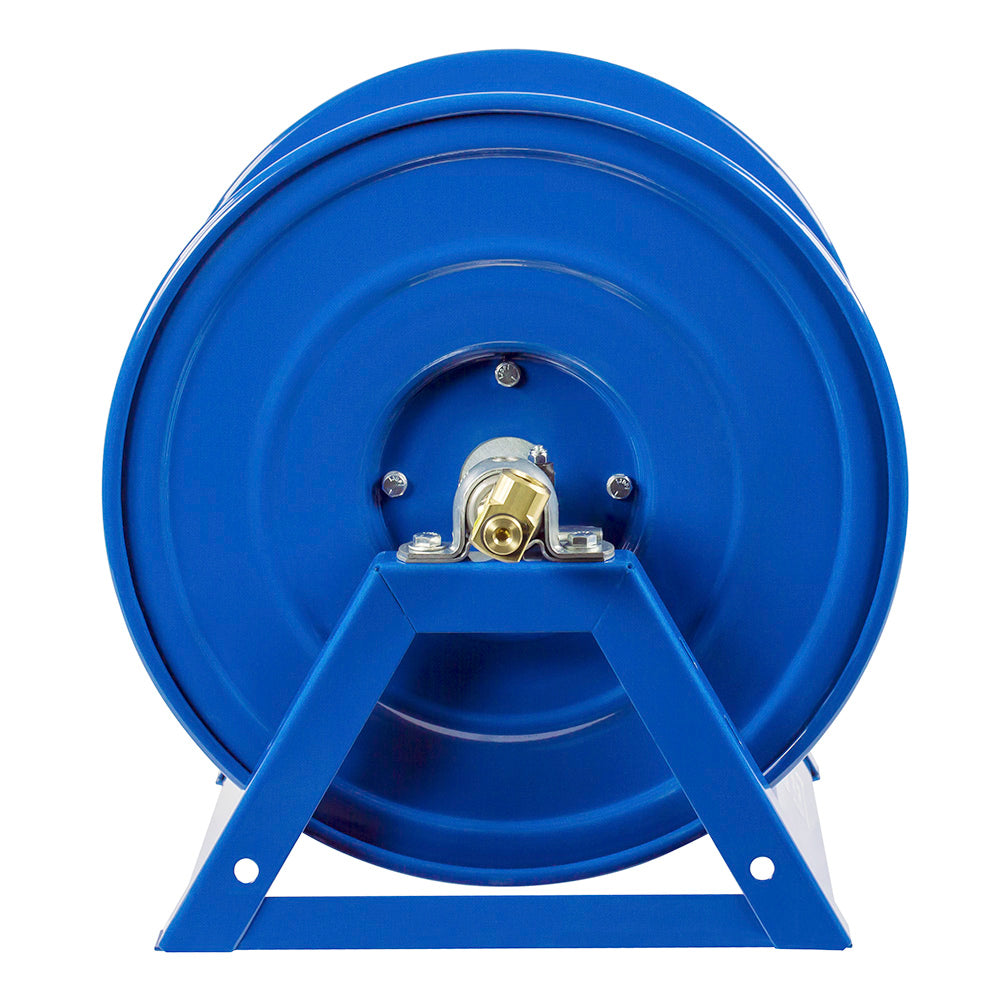

- Swivel: 90° full-flow NPT swivel
- Swivel Seal: Nitrile
- Bearings: Permanently lubricated self-aligning pillow block bearings
- Brake: Adjustable tension brake
- Finish: Chip-resistant and rust-inhibiting CPC powder coat
- Manufacturer Warranty: 2-year limited warranty
- Country of Manufacture: Made in the USA
