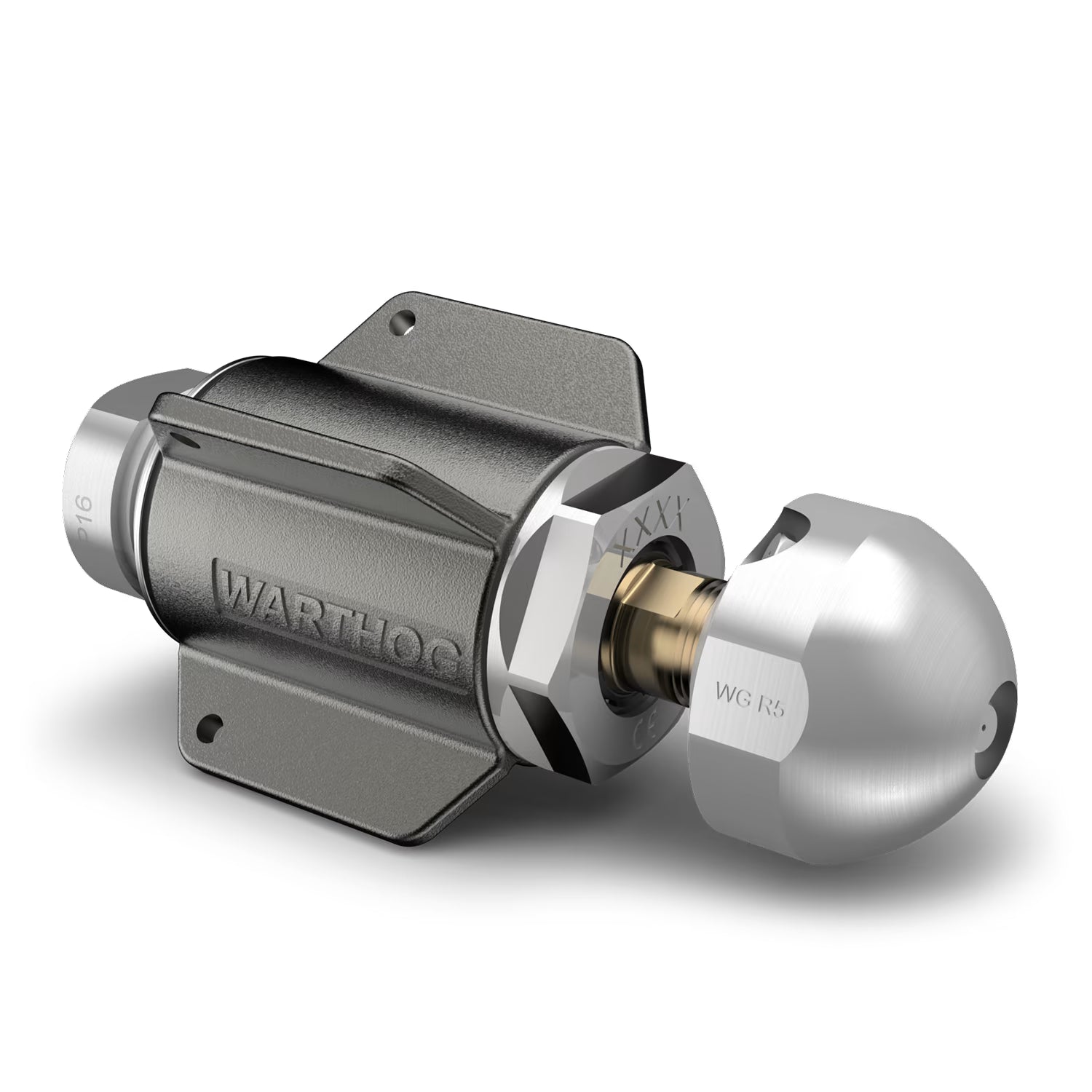

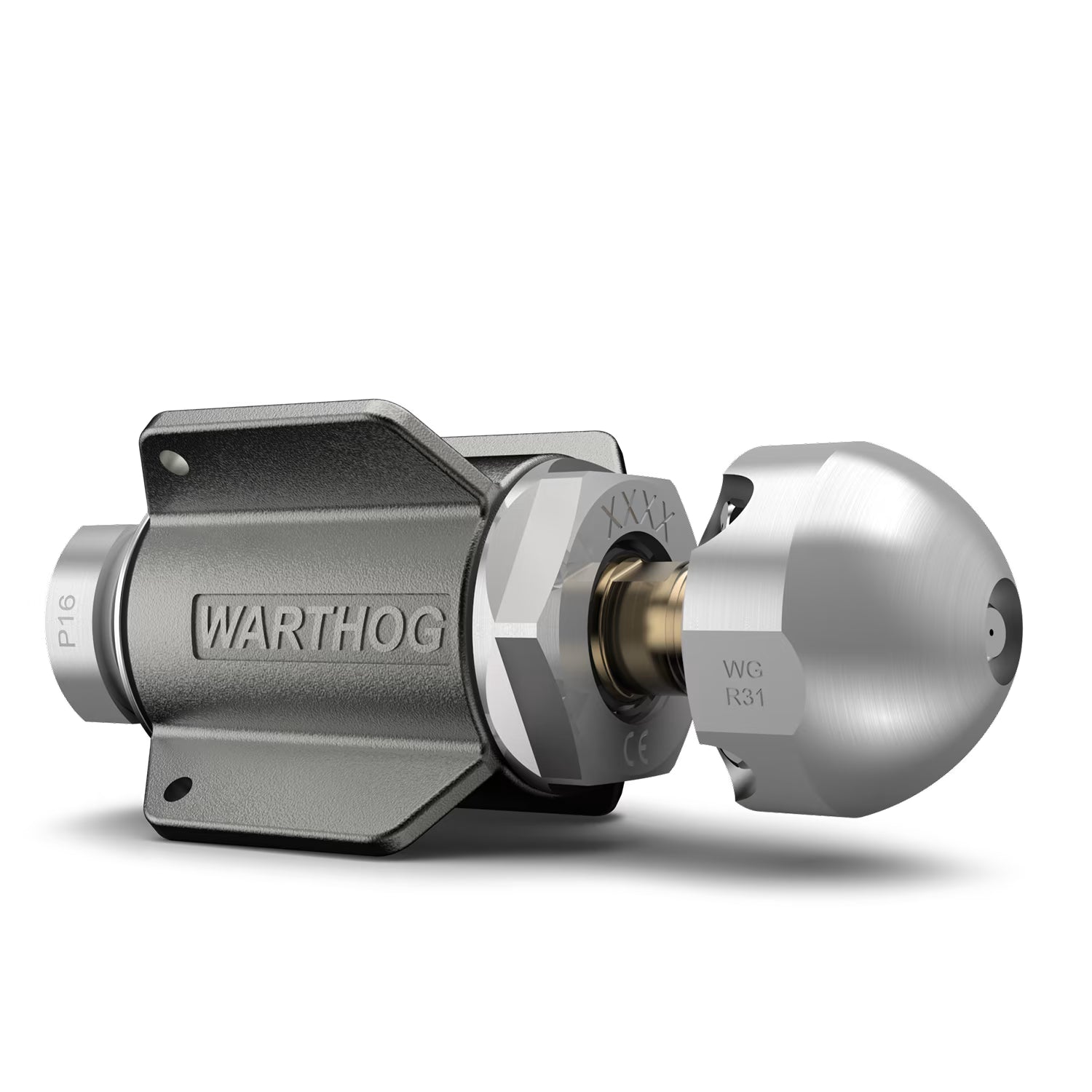

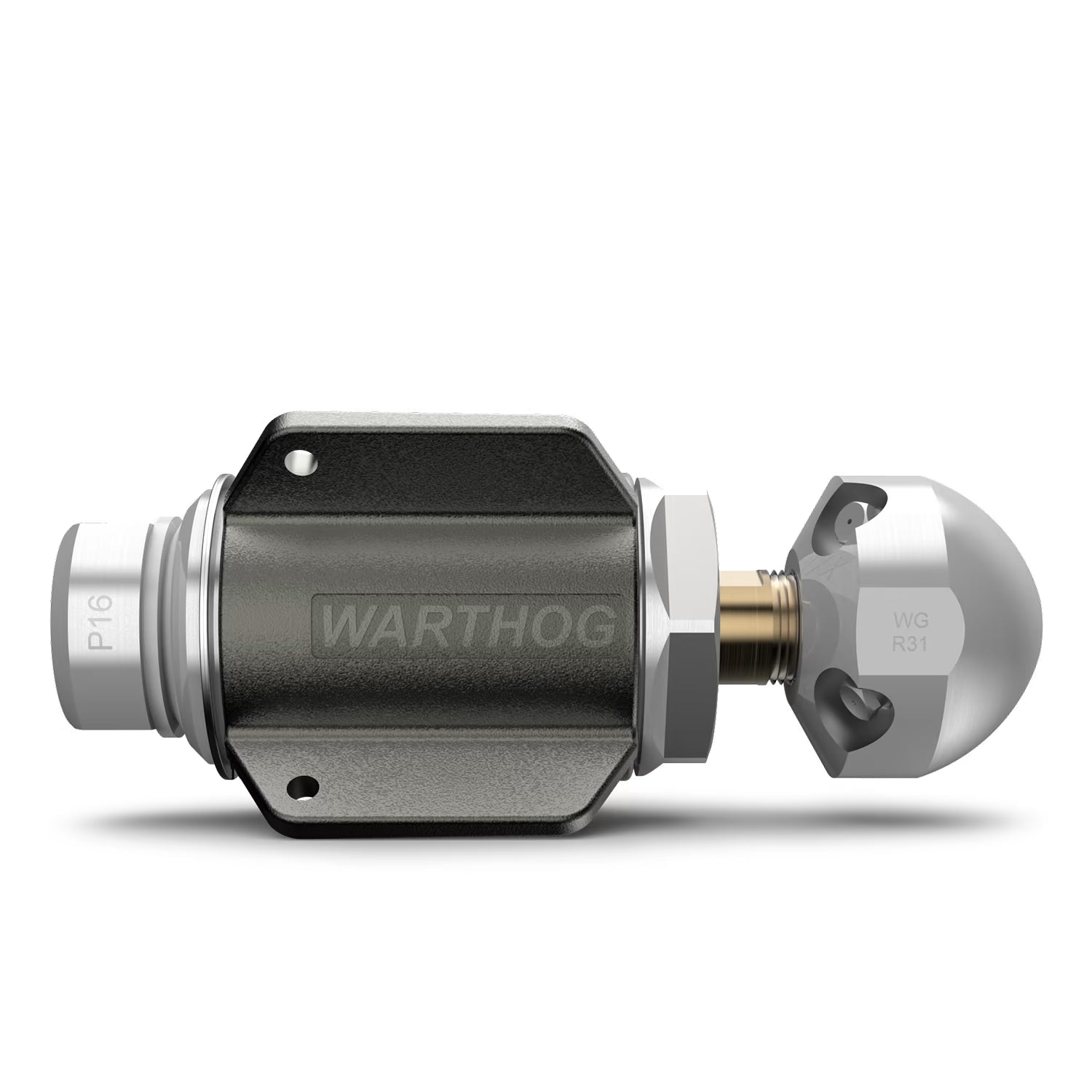

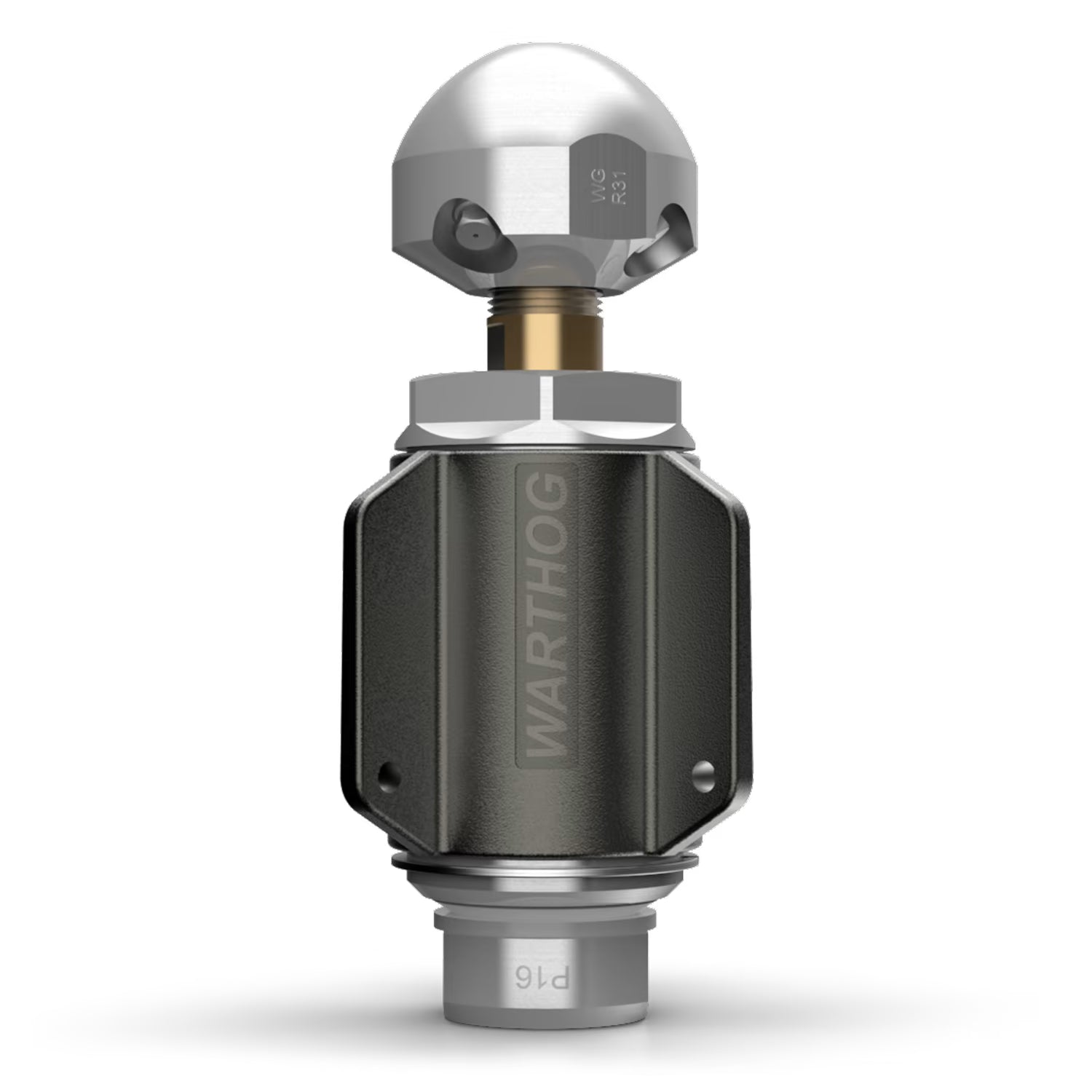

The 1" Warthog WG Classic WG-1-PKG is a controlled-rotation sewer cleaning nozzle built for large municipal and industrial lines. Designed for combination trucks running 1" hose, the WG Classic uses Warthog's controlled-rotation technology to concentrate jet power against stubborn deposits instead of letting the head free-spin through the pipe.
This standard WG package uses a universal head configured for a balanced mix of pulling and flushing power along with cleaning and cutting action. With a 50–80 GPM flow range, 1,200–5,000 PSI pressure range, and an 8"–36" pipe range, this controlled-rotation sewer nozzle is built for demanding sewer maintenance where thorough pipe-wall cleaning and dependable hose pull matter.
Best For
- Municipal sewer cleaning
- Industrial sewer and pipe cleaning
- Heavy deposit removal and pipe-wall cleaning
- Large combination trucks equipped with 1" jetting hose

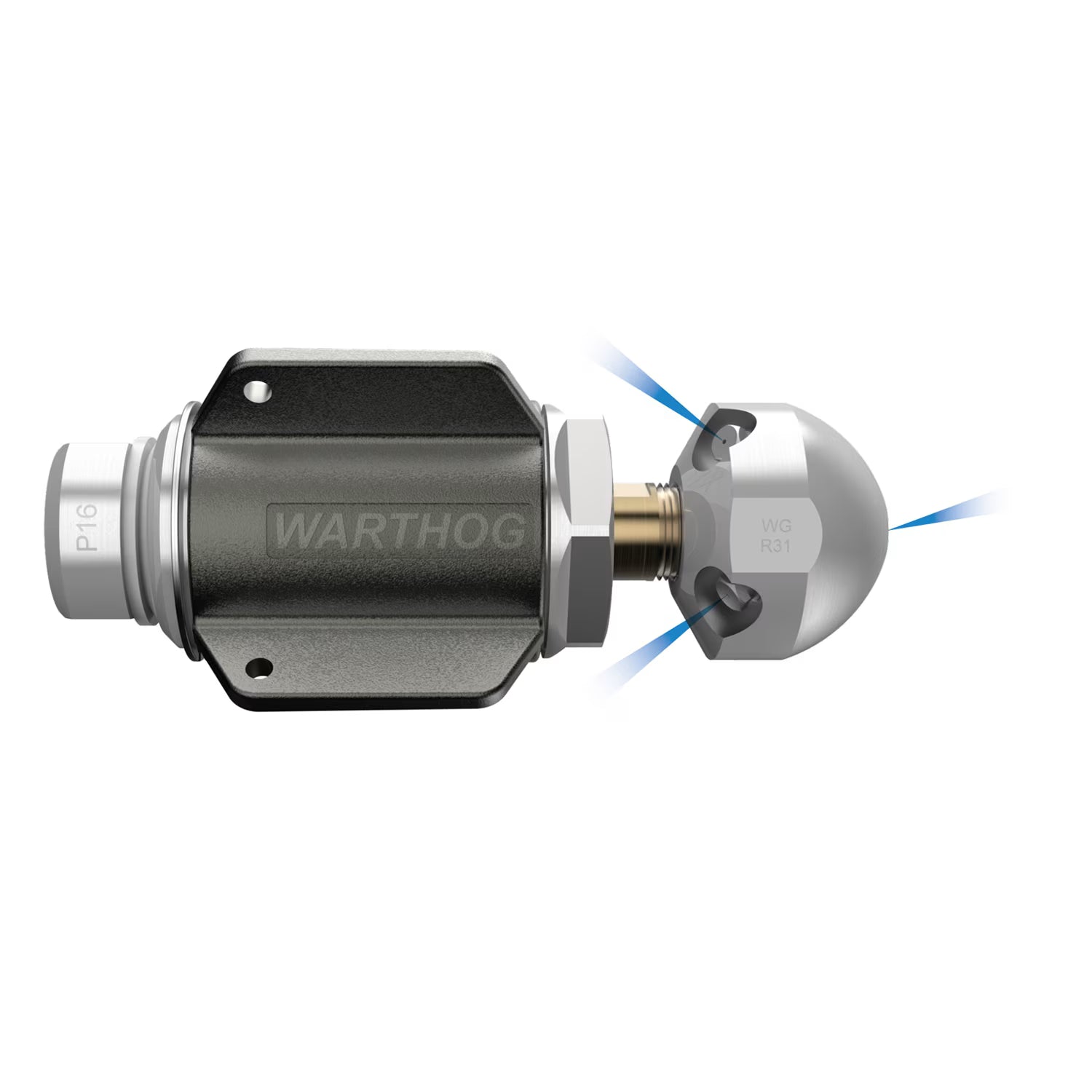

Jet Configuration
- Forward Jet Position: 15° – 1 configurable jet position
- Rear Jet Position: 145° – 2 configurable jet positions
- Additional Rear Jet Position: 145° – 2 configurable jet positions
- Head: WG Classic Standard 5-port universal head
- Configuration: Jetting is configurable to match the operating flow and pressure
Specifications
- Manufacturer: Warthog
- Series: WG Classic
- Part Number: WG-1-PKG
- Nozzle Type: Controlled Rotation
- Inlet Connection: 1" NPT or 1" BSPP
- Pipe Size: 8"–36"
- Flow Range: 50–80 GPM
- Pressure Range: 1,200–5,000 PSI
- Maximum Pressure: 5,000 PSI
- Length: 9"
- Diameter: 5"
- Weight: 9.2 lb.
- Recycled Water Compatible: No
- Recommended Service Interval: 50–60 operating hours
