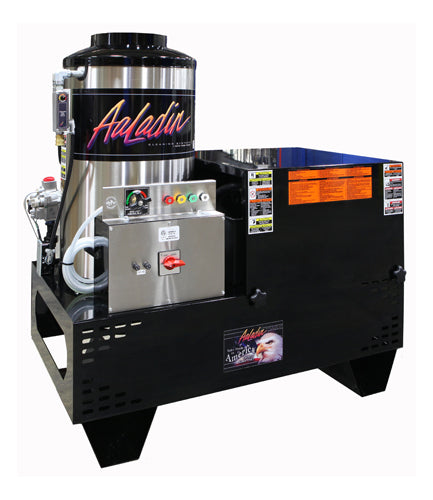

The AaLadin 17 Series stationary hot water pressure washer is built for facilities that need dependable, high-volume cleaning power every day. Delivering 4–5 GPM at 1,600–3,000 PSI, the 17 Series is ideal for removing grease, oil, dirt, and other tough contaminants in industrial plants, fleet maintenance shops, manufacturing facilities, and agricultural operations. Available in both stationary and portable configurations, the series lets you choose the setup that best fits your workflow.
Engineered for long-term reliability, the 17 Series features a heavy-duty belt- or clutch-driven pump system, an ASTM A53 Schedule 80 steel heating coil, an efficient natural gas or LP-fired burner, and an automotive-quality powder-coated finish. Easy-access service points, electronic ignition, low water shutoff protection, and a watertight electrical panel help minimize downtime, while premium SL and SC models add features like time-delay shutdown, an hour meter, and clutch drive for even greater durability.
SS Model:
- Easy Access Pump Module Hood
- Automotive Quality Powder Coat Finish
- Ground Spacing Legs •FuelEfficientCombustionChamber
- Electronic Ignition
- Quick Coil Access
- ASTM A53 Schedule 80 Steel Heating Coil
- Trigger Gun Control •3/8” x 50’ High Pressure Hose w/Safety Hose Guards
- Wire Braid Discharge Hose
- High Pressure Soap
- LowWaterShutoffProtection
- Watertight Electrical Panel
- Heavy Duty Electro Plated Fittings
- Draft Diverter
- ETL Listed
- Insulated Wand w/4000 PSI Trigger Gun
SL Model- Includes All the Features of SS Plus:
- Time Delay Shutdown
- Hour Meter
- 0/15/25/40 degree Quick Coupled Nozzles
SC Model- Includes All the Features of SS Plus:
- Clutch Drive
17 Series Models
| Model | Type | GPM | PSI | HP | Drive | Volts | Amps | Phase | BTU | Stack | Dimensions (L × W × H) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17-416 | SS / SL / SC | 4 | 1,600 | 4 | Belt / Clutch | 230 | 20 | 1 | 420,772 / 415,000 | 10" | 45" × 26" × 47" | 620 lb |
| 17-423 | SS / SL / SC | 4 | 2,300 | 6 | Belt / Clutch | 230 / 440 | 30 / 20 / 15 | 1 / 3 | 420,772 / 415,000 | 10" | 45" × 26" × 47" | 650 lb |
| 17-430 | SS / SL / SC | 4 | 3,000 | 8 / 7.5 | Belt / Clutch | 230 / 440 | 40 / 25 / 15 | 1 / 3 | 420,772 / 415,000 | 10" | 45" × 26" × 47" | 670 lb |
| 17-525 | SS / SL / SC | 5 | 2,500 | 8 / 7.5 | Belt / Clutch | 230 / 440 | 40 / 25 / 15 | 1 / 3 | 420,772 / 440,000 | 10" | 45" × 26" × 47" | 650 lb |
| 17-530 | SS / SL / SLC | 5 | 3,000 | 10 | Belt / Clutch | 230 / 440 | 50 / 25 / 15 | 1 / 3 | 420,772 / 440,000 | 10" | 45" × 26" × 47" | 740 lb |
