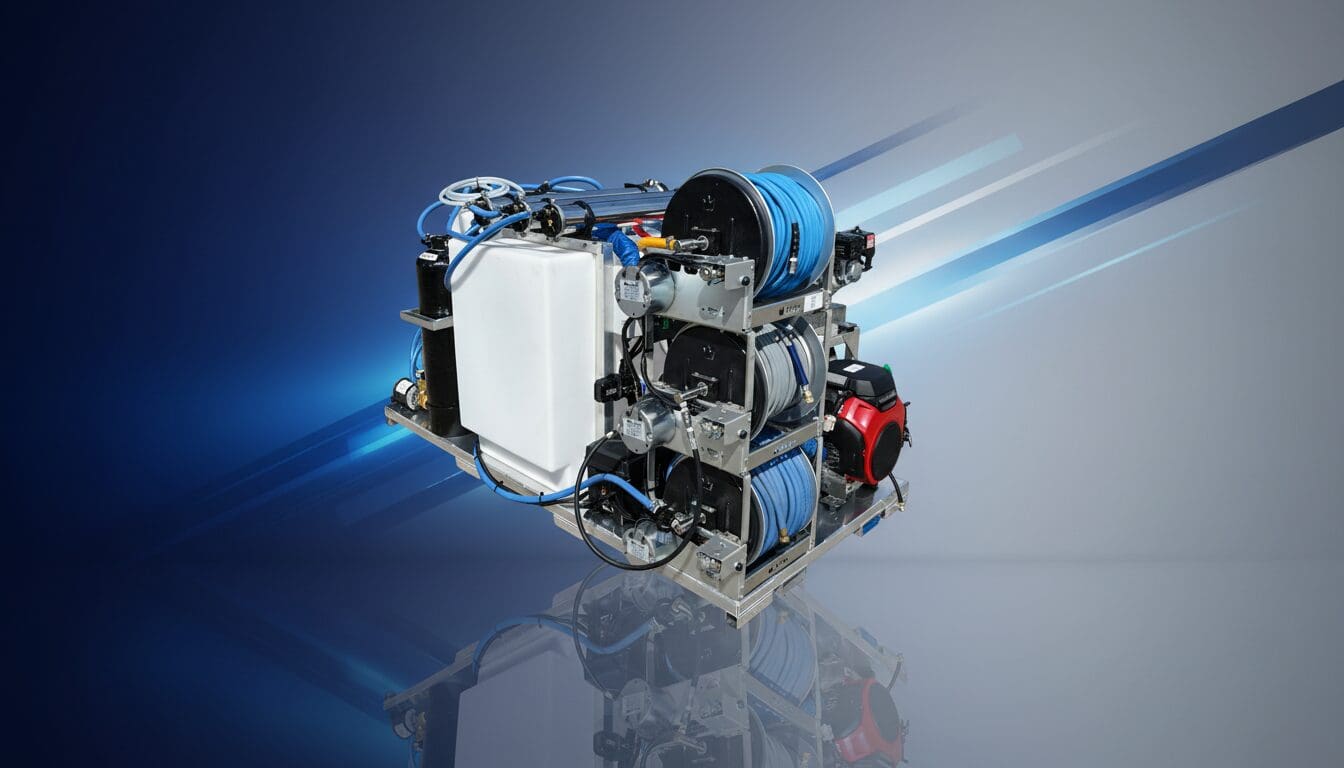

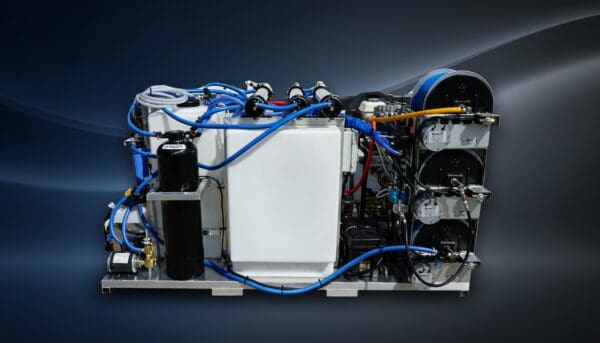

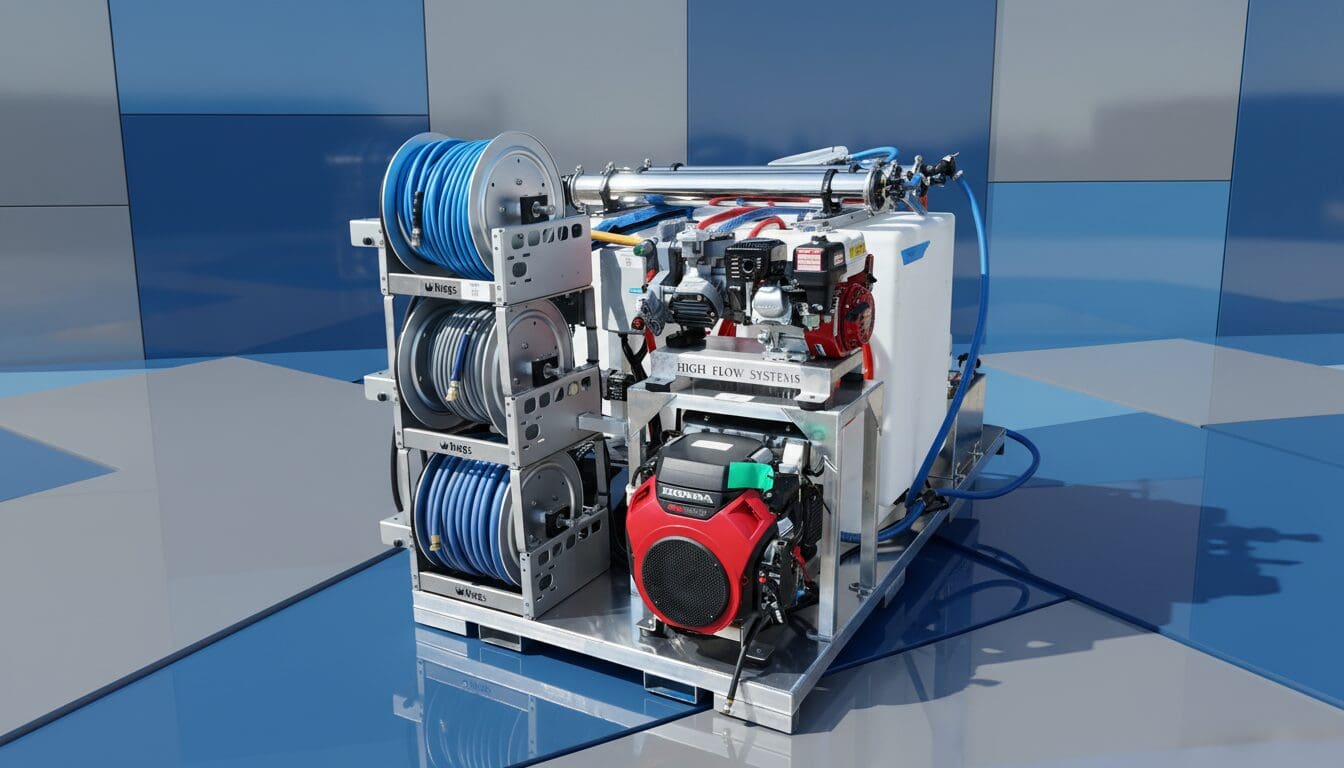

The Apex Van Skid for Drone Washing combines pressure washing, soft washing, and high-capacity pure water production in one commercial van-mounted system. The pressure wash side delivers 8 GPM at 3500 PSI from a gear-driven triplex plunger pump powered by an electric-start Honda GX690 gas engine. RigLink remote start and stop gives you control without having to return to the skid.
The soft wash system pairs a Comet P40 diaphragm pump rated at 11.5 GPM and 300 PSI with an electric-start Honda GX160/GX200 gas engine. For pure water work, the skid adds a 4-stage RO/DI filtration system with three RO membranes, a high-capacity DI resin tank, and a 110V booster pump. This drone washing van skid is set up for commercial crews that need multiple cleaning methods in one organized package.
Pressure Wash System
- Flow: 8 GPM
- Pressure: 3500 PSI
- Pump: Industrial gear-driven triplex plunger pump
- Engine: Electric-start Honda GX690 gas engine
- Remote Control: RigLink remote engine start/stop
- Mounting: Stainless steel platform with vibration isolators
- Chemical Injection: RigLink remote downstream injector bypass with ClearView V4 soap selector
Soft Wash System
- Pump: Gear-driven Comet P40 diaphragm pump
- Flow: 11.5 GPM
- Pressure: 300 PSI
- Engine: Electric-start Honda GX160/GX200 gas engine
- Remote Control: RigLink remote engine start/stop
- Mounting: Corrosion-resistant stainless steel platform with vibration isolators
Chemical Metering System
- Proportioner: ClearView Hydro-Mixer XL
- Valve Controls: Raw water, soap, chemical, and DI water
- Soap Selector: Allows you to switch between two soaps
- Mix Control: Labeled valves help with estimating and adjusting output ratios
- Remote Rinse: RigLink remote rinse module turns chemical and soap on or off remotely
4-Stage RO/DI Pure Water System
- Filtration: 4-stage RO/DI pure water system
- Prefilters: 10" sediment and 10" carbon prefilters

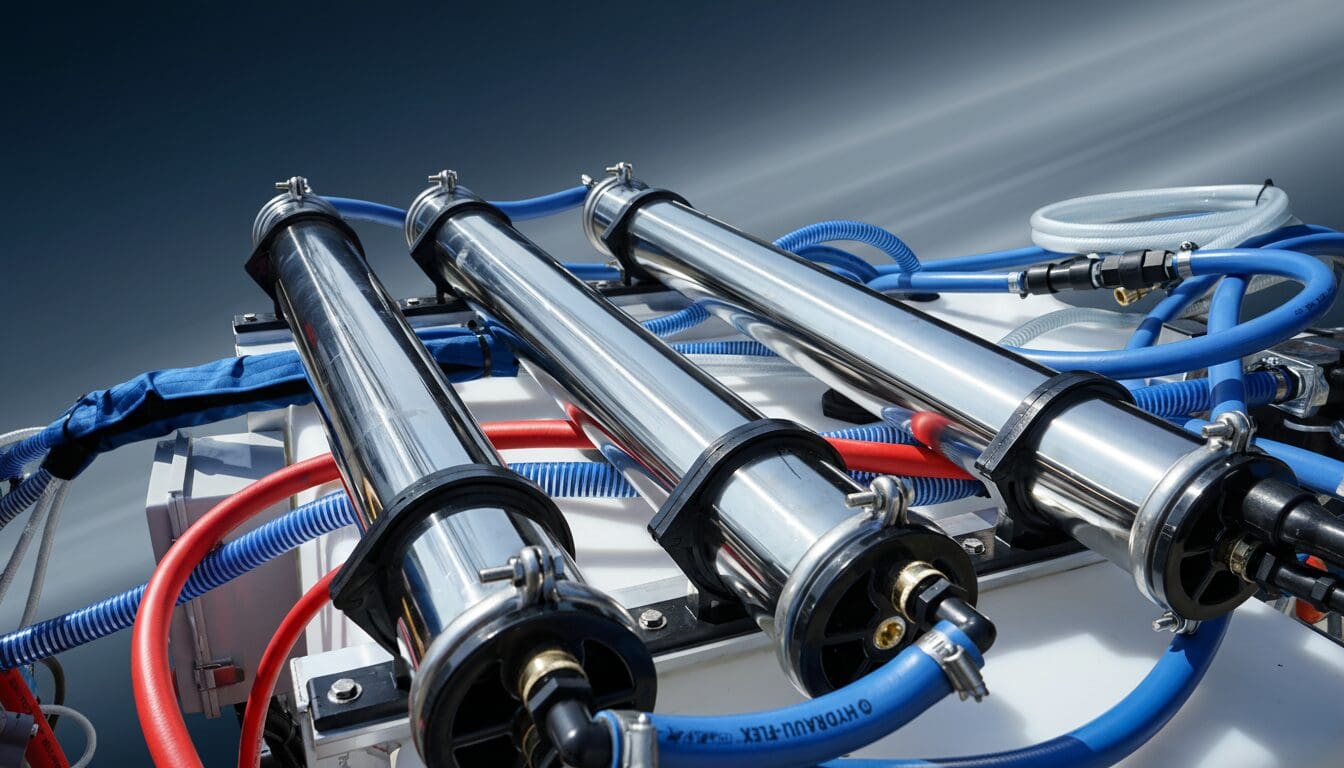

- Reverse Osmosis: Three RO membranes
- DI Filtration: One high-capacity DI resin tank
- Booster Pump: 110V booster pump
- Water Quality Monitoring: Inline dual TDS meter measures incoming and filtered water quality
Tank Configuration
- Raw/DI Water Tank: 200 gallons
- Chemical Tank: 55 gallons
- Soap Tanks: Two 7-gallon tanks
Hose & Reel Setup
- Hose Reels: Three 12" electric reels with aluminum frames and stainless steel internals
- High-Pressure Hose: 200' x 3/8" gray non-marking hose
- Water Supply Hose: 200' x 5/8" hose
- Soft Wash Hose: 100' x 5/8" plus 200' x 3/8" soft wash hose
Electrical System
- Battery: Group 27 marine deep-cycle battery included for powering system electronics
- Battery Protection: Battery is housed in a waterproof box
- Fuse Panel: Waterproof fuse panel protects motors and wiring and includes an on/off switch
- Battery Charging: Onboard charger included
- RO/DI Booster Pump: Requires 110V power
Standard Accessories
- Pressure Wash: High-pressure gun, insulated wand, and J-Rod with nozzles
- Soft Wash: Gun, wand, and J-Rod with nozzles
Skid & Van Fitment
- Construction: Premium aluminum platform, TIG welded
- Platform Length: 96"
- Platform Width: 48"
- Overall Height: 60"
- Minimum Cargo Length: 96"
- Recommended Cargo Length: 120" to 144" for additional storage space
- Van Applications: Designed for compatible high-top commercial vans such as the Ford Transit, Ram ProMaster, and Mercedes-Benz Sprinter
Specifications
- Product Type: Commercial drone washing van skid
- Pressure Washer Output: 8 GPM at 3500 PSI
- Pressure Washer Engine: Honda GX690, electric start
- Soft Wash Output: 11.5 GPM at 300 PSI
- Soft Wash Pump: Comet P40 diaphragm pump
- Soft Wash Engine: Honda GX160/GX200, electric start
- Pure Water System: 4-stage RO/DI filtration
- RO Membranes: Three
- DI Resin Tanks: One high-capacity tank
- RO/DI Booster Pump: 110V
- Raw/DI Water Capacity: 200 gallons
- Chemical Capacity: 55 gallons
- Soap Capacity: Two 7-gallon tanks
- Hose Reels: Three 12" electric reels
- Platform Dimensions: 96" L x 48" W
- Overall Height: 60"
