The Compact Dual Purpose Van Skid gives professional cleaning crews high- and low-pressure washing capability from one compact van-mounted system. Its 8 GPM dual-purpose pump handles both operating modes, helping you cover different cleaning applications without dedicating space to separate pump systems.
Built specifically for low-top commercial vans, this 8 GPM van skid measures 7' long, 4' wide, and 46" tall. The system combines raw water, chemical, and pure water storage with a Hydro-Mixer XL proportioner, high-output pure water system, RigLink remote rinse, and 12" electric hose reels.

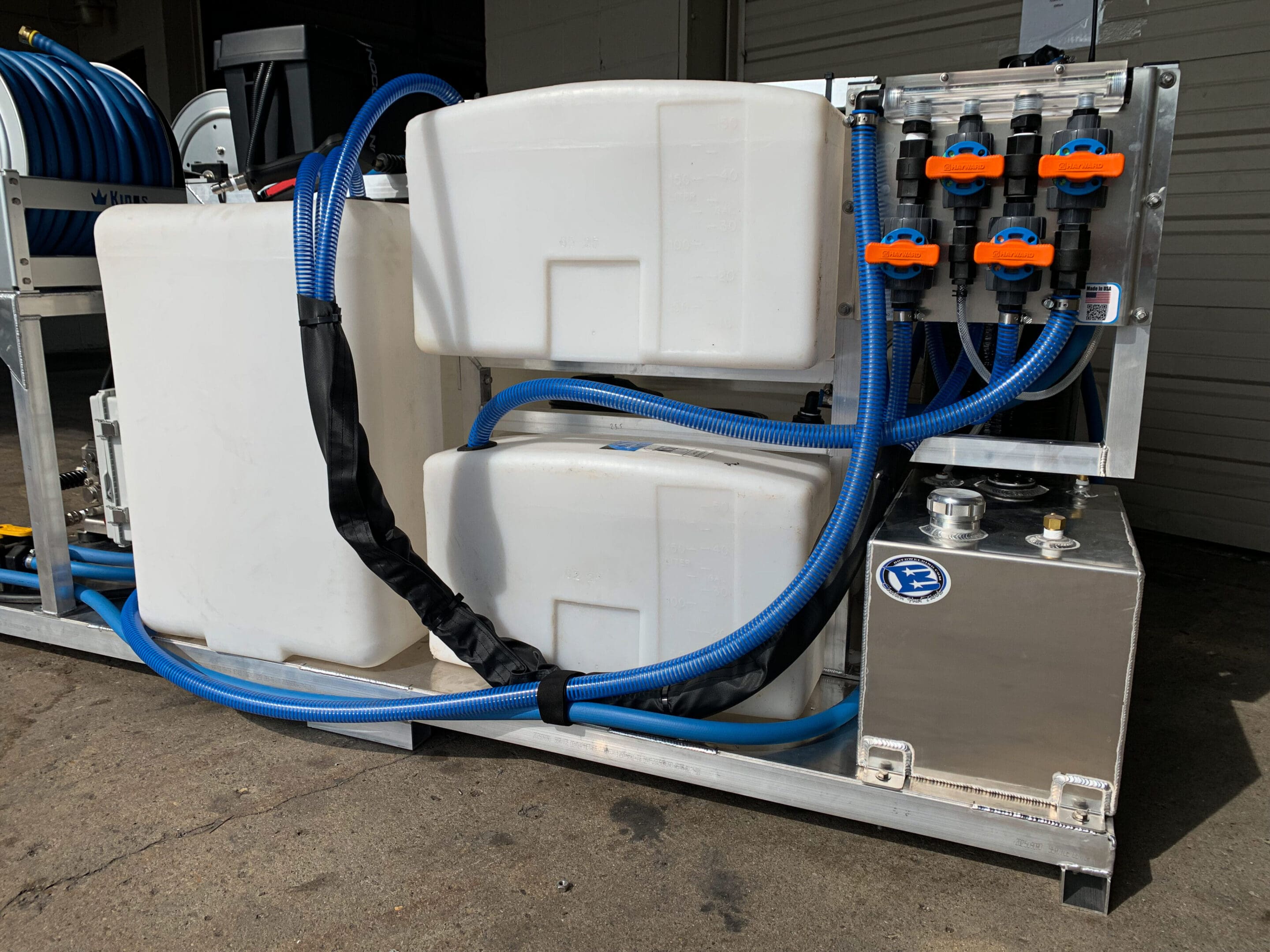

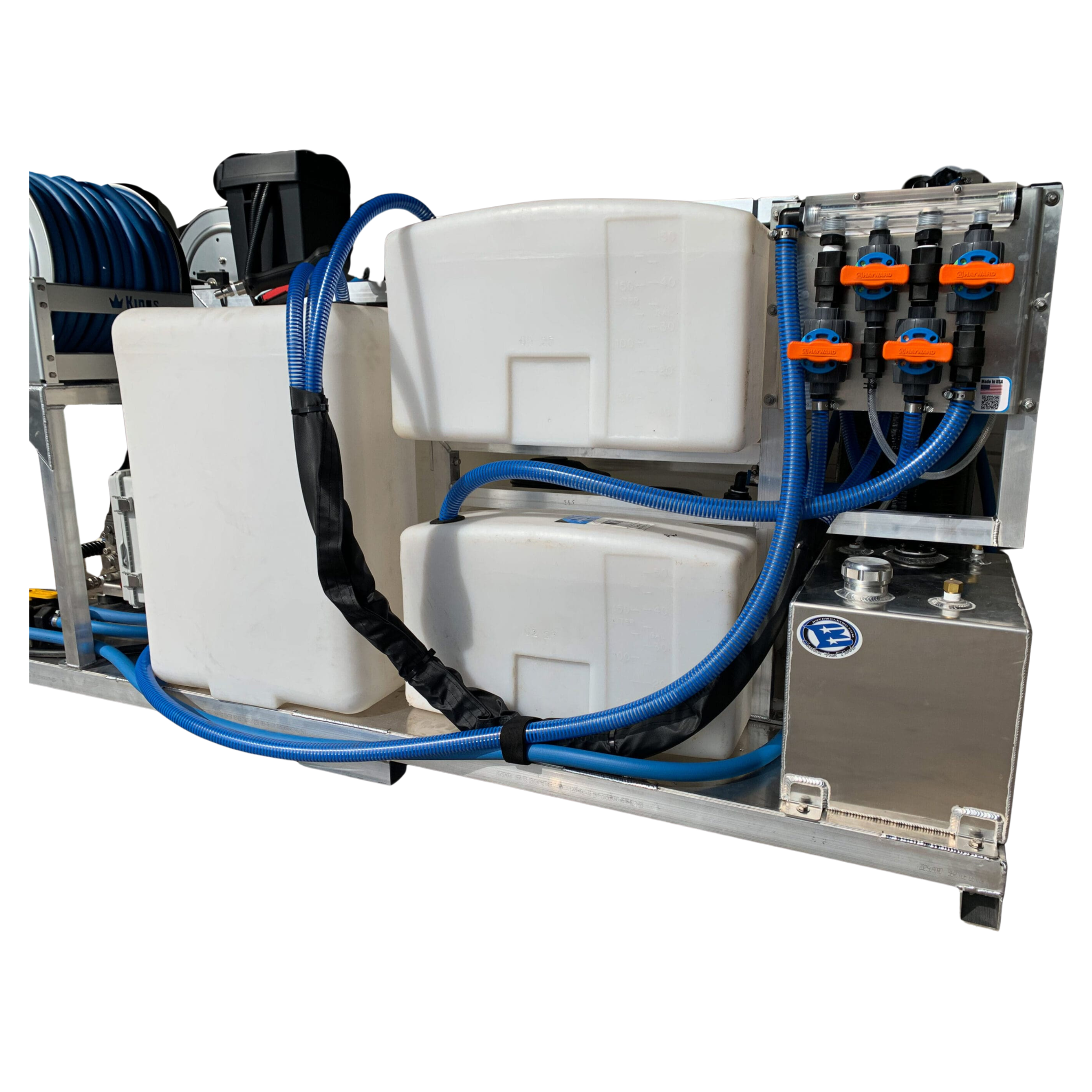

Tank Configuration
- Raw Water Tank: 100 gallons
- Chemical Tank: 55 gallons
- Pure Water Tank: 55 gallons
Washing & Water Systems
- Dual-Purpose Pump: 8 GPM high- and low-pressure pump
- Proportioner: Hydro-Mixer XL

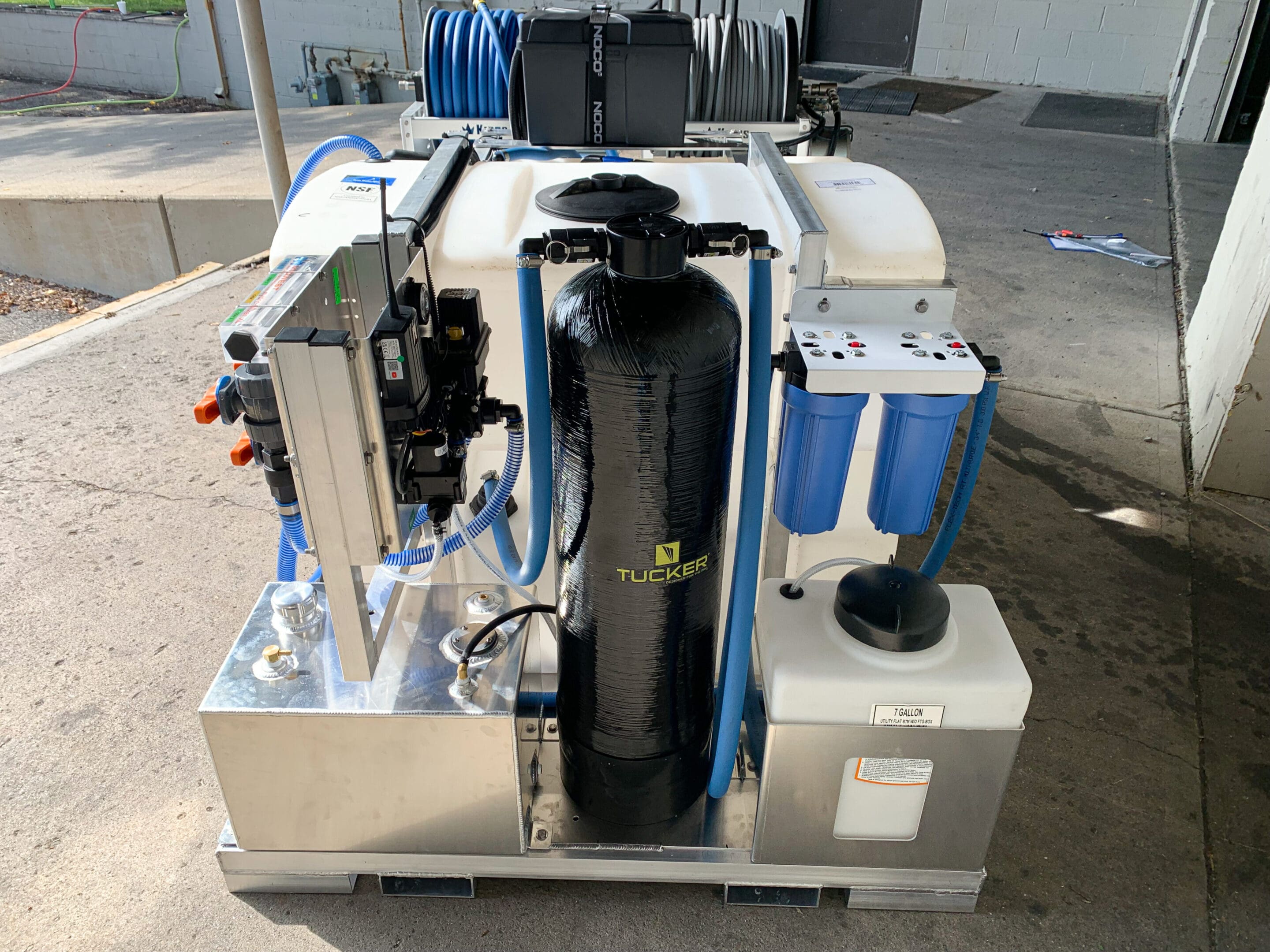

- Pure Water System: High-output pure water system
- Remote Rinse: RigLink remote rinse modul

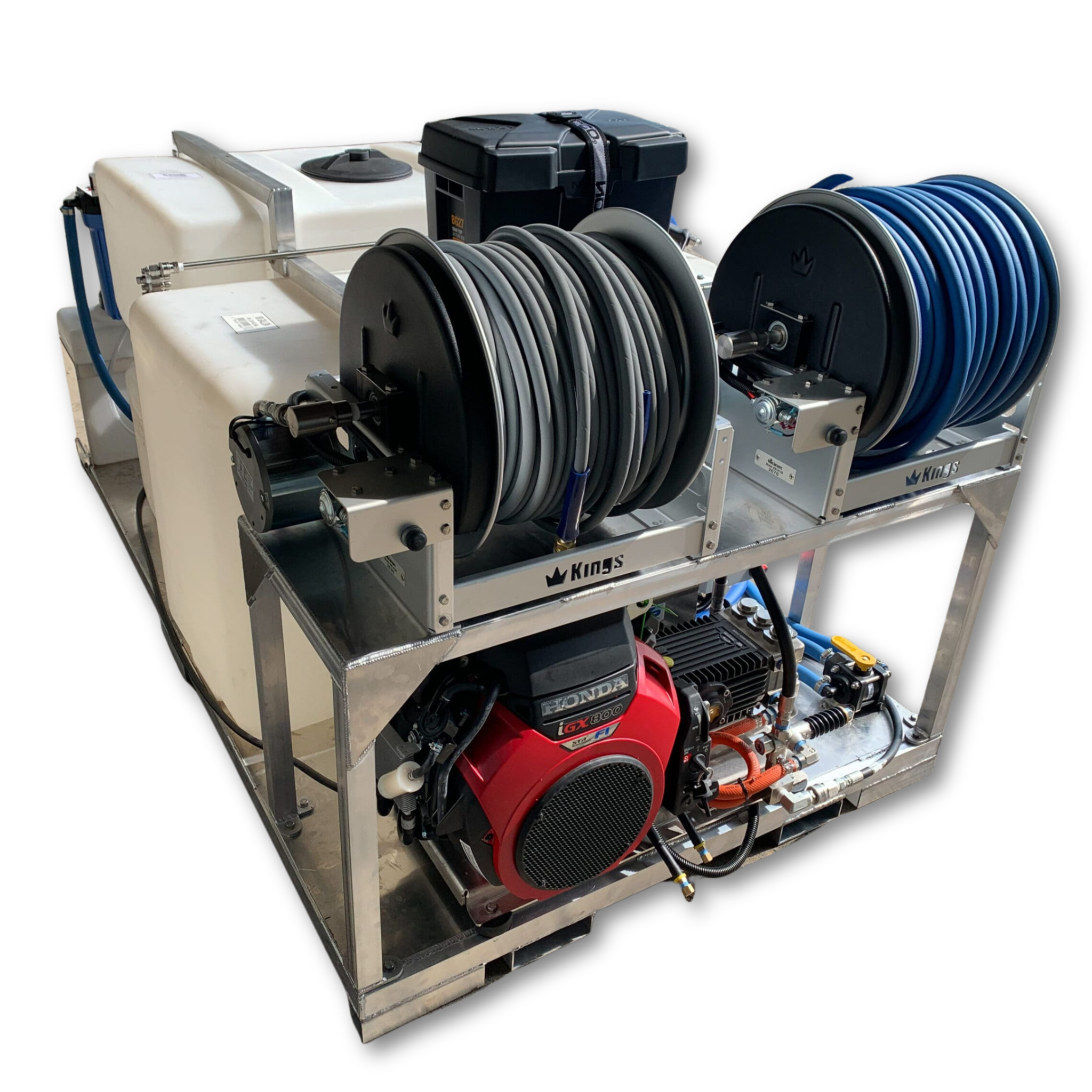

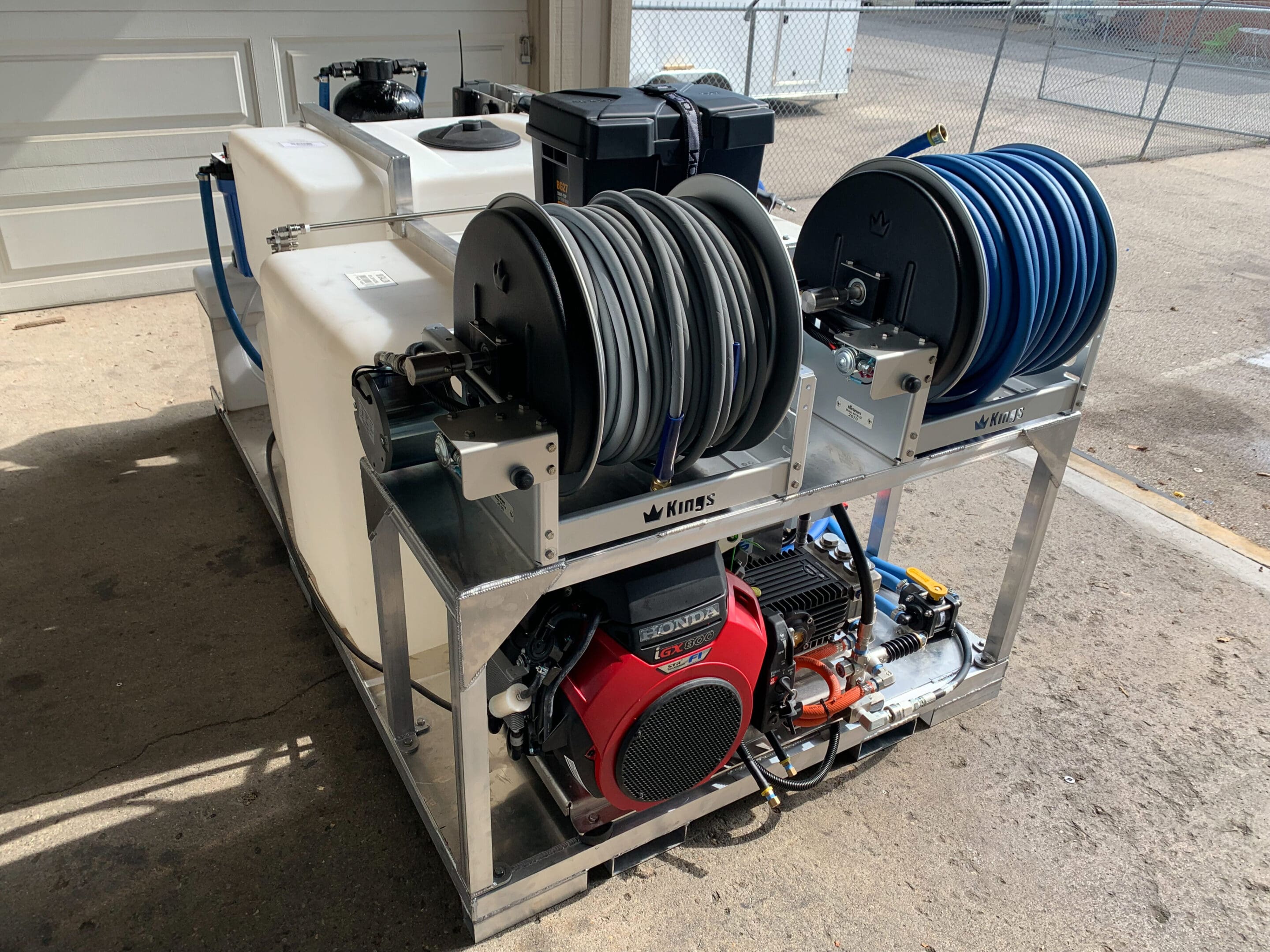

- Hose Reels: 12" electric reels
Dimensions & Weight
- Length: 84"
- Width: 48"
- Overall Height: 46"
- Dry Weight: 862 lbs.
Specifications
- Product Type: Dual-purpose van-mounted washing skid
- Pump Flow: 8 GPM
- Operating Modes: High- and low-pressure washing
- Raw Water Capacity: 100 gallons
- Chemical Capacity: 55 gallons
- Pure Water Capacity: 55 gallons
- Proportioning System: Hydro-Mixer XL
- Remote System: RigLink remote rinse module
- Reels: 12" electric reels
- Dry Weight: 862 lbs.
- Overall Dimensions: 7' L x 4' W x 46" H
