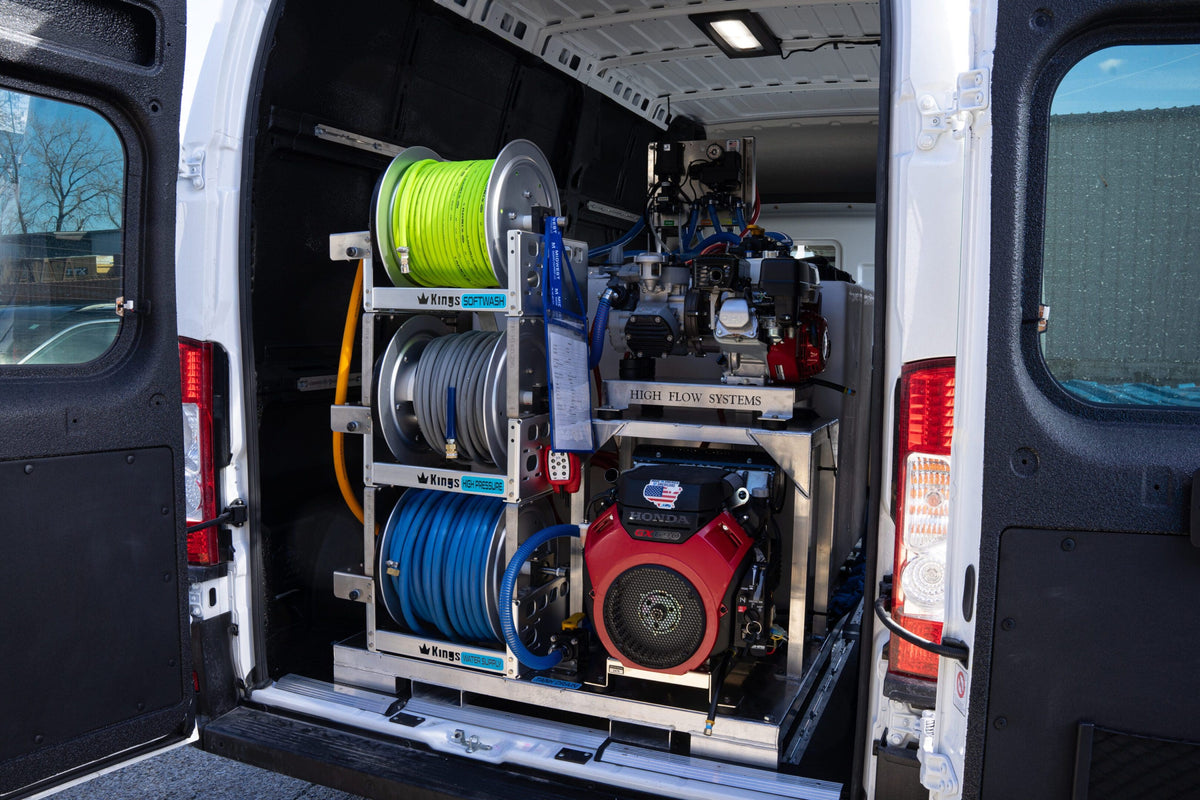

The Core Van Skid for Drone Washing gives professional cleaning crews pressure washing, soft washing, and DI pure water capability on one van-mounted platform. The pressure washing system delivers 8 GPM at 3500 PSI from a gear-driven triplex plunger pump powered by an electric-start Honda GX690 gas engine.
The soft wash side uses a gear-driven Comet P40 diaphragm pump rated at 11.5 GPM and 300 PSI, powered by an electric-start Honda GX160/GX200 gas engine. Add in a ClearView Hydro-Mixer XL, 3-stage DI filtration, 200 gallons of raw/DI water capacity, and three dedicated hose reels, and you get a drone washing van skid built to handle multiple cleaning methods from one organized setup.
Pressure Wash System
- Flow: 8 GPM
- Pressure: 3500 PSI
- Pump: Industrial gear-driven triplex plunger pump
- Engine: Electric-start Honda GX690 gas engine
- Engine Mount: Stainless steel platform with vibration isolators
- Chemical Injection: Manual downstream injector bypass with ClearView V4 soap selector
Soft Wash System
- Pump: Gear-driven Comet P40 diaphragm pump
- Flow: 11.5 GPM
- Pressure: 300 PSI
- Engine: Electric-start Honda GX160/GX200 gas engine
- Mounting: Pump and engine are mounted on a corrosion-resistant stainless steel platform with vibration isolators
Chemical Metering System
- Proportioner: ClearView Hydro-Mixer XL
- Valve Controls: Raw water, soap, chemical, and DI water
- Soap Selector: Allows you to switch between two soaps
- Mix Adjustment: Labeled valves help you estimate and adjust output ratios while cleaning
- Flush System: Manual flush valve for flushing chemical from the system
3-Stage DI Pure Water System
- Filtration: 3-stage DI filtration system
- Prefilters: 10" sediment and 10" carbon prefilters
- DI Filtration: Two high-capacity DI resin tanks
- Water Quality Monitoring: Manual TDS meter included
Tank Configuration
- Raw/DI Water Tank: 200 gallons
- Chemical Tank: 55 gallons
- Soap Tanks: Two 7-gallon tanks
Hose & Reel Setup
- Reels: Three 12" manual reels with aluminum frames and stainless steel internals
- High-Pressure Hose: 200' x 3/8" gray non-marking hose
- Water Supply Hose: 200' x 5/8" hose
- Soft Wash Hose: 100' x 5/8" hose plus 200' x 3/8" hose
Electrical & Starting System
- Battery: Group 27 marine deep-cycle battery
- Purpose: Battery provides starting power for the engines
- Battery Protection: Battery is housed in a waterproof box
Skid & Van Fitment
- Construction: Premium aluminum platform, TIG welded
- Platform Length: 96"
- Platform Width: 48"
- Overall Height: 60"
- Minimum Van Cargo Length: 96"
- Recommended Cargo Length: 120" to 144" for additional storage space
- Van Applications: Designed for high-top commercial vans such as Ford Transit, Ram ProMaster, and Mercedes-Benz Sprinter configurations with adequate cargo space
Specifications
- Product Type: Drone washing van skid
- Pressure Washer Output: 8 GPM at 3500 PSI
- Pressure Washer Engine: Honda GX690, electric start
- Soft Wash Output: 11.5 GPM at 300 PSI
- Soft Wash Pump: Comet P40 diaphragm pump
- Soft Wash Engine: Honda GX160/GX200, electric start
- Pure Water System: 3-stage DI filtration
- Water Capacity: 200 gallons raw/DI water
- Chemical Capacity: 55 gallons
- Soap Capacity: Two 7-gallon tanks
- Hose Reels: Three 12" manual reels
- Platform Dimensions: 96" L x 48" W
- Overall Height: 60"
