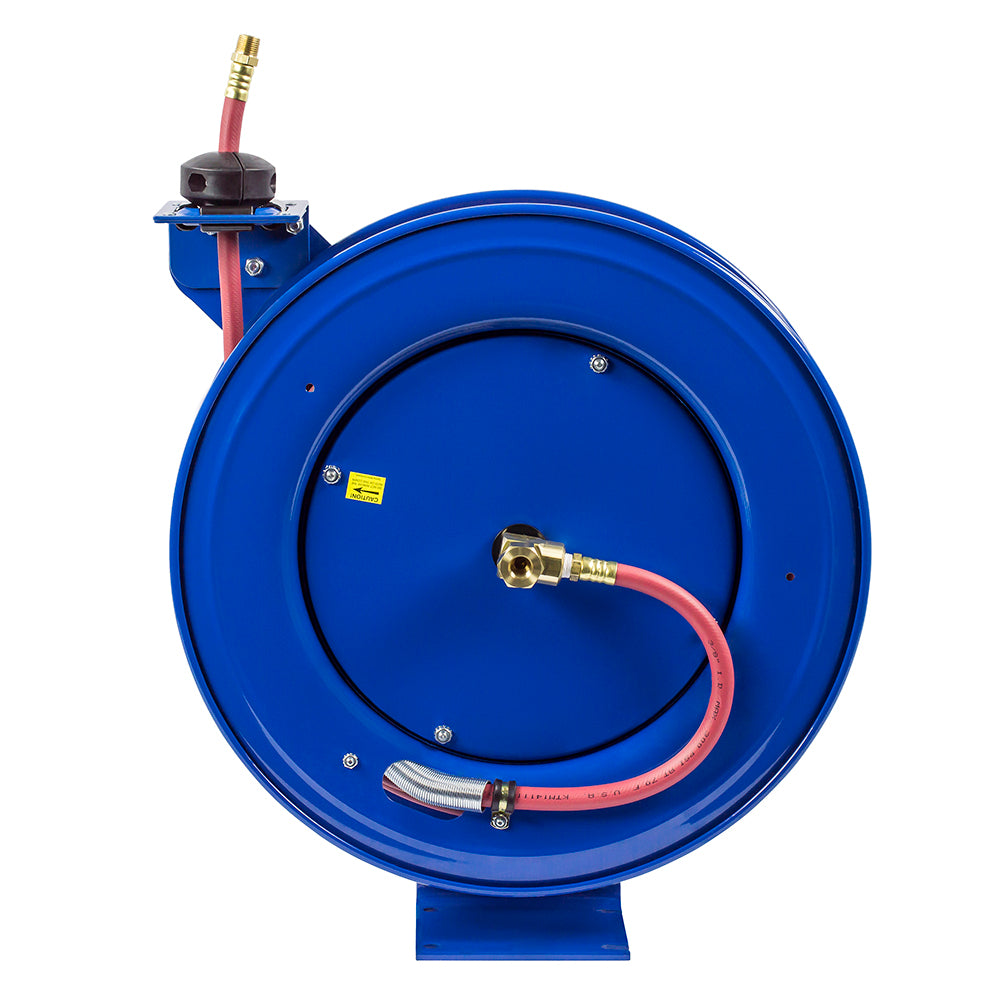

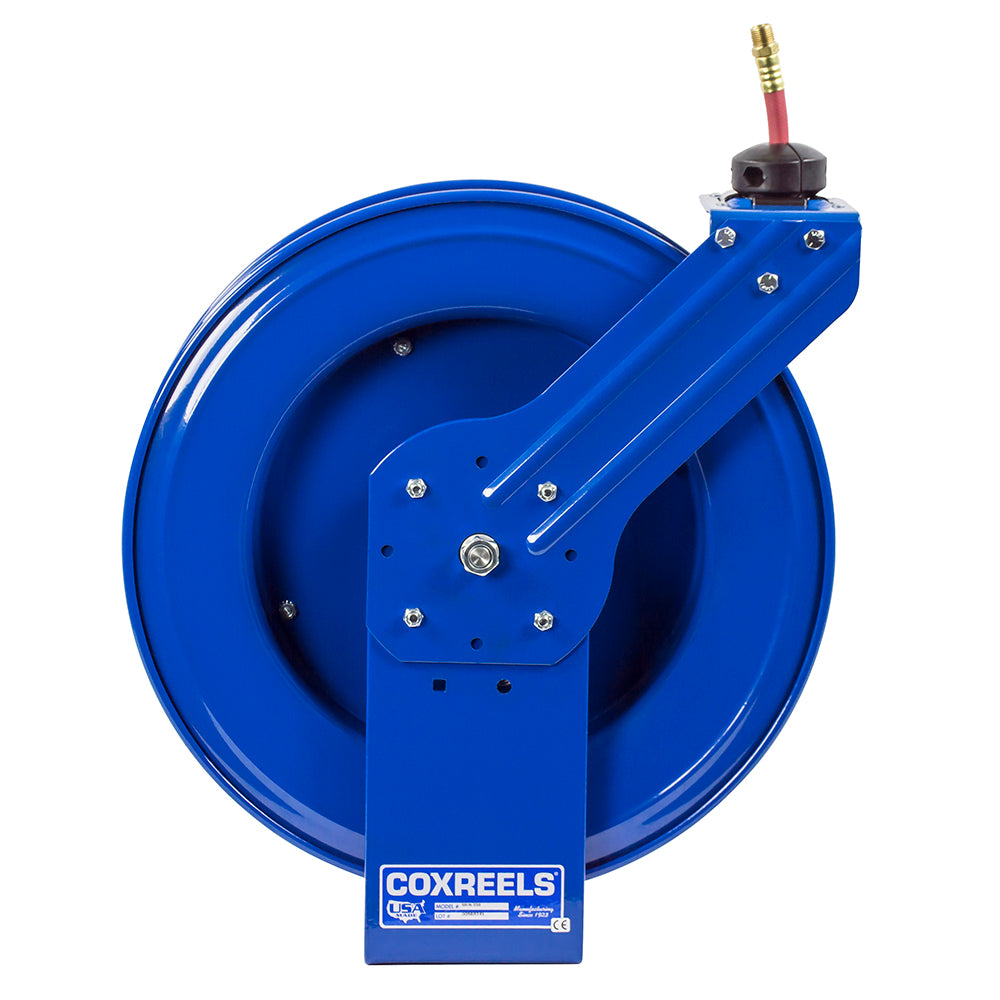

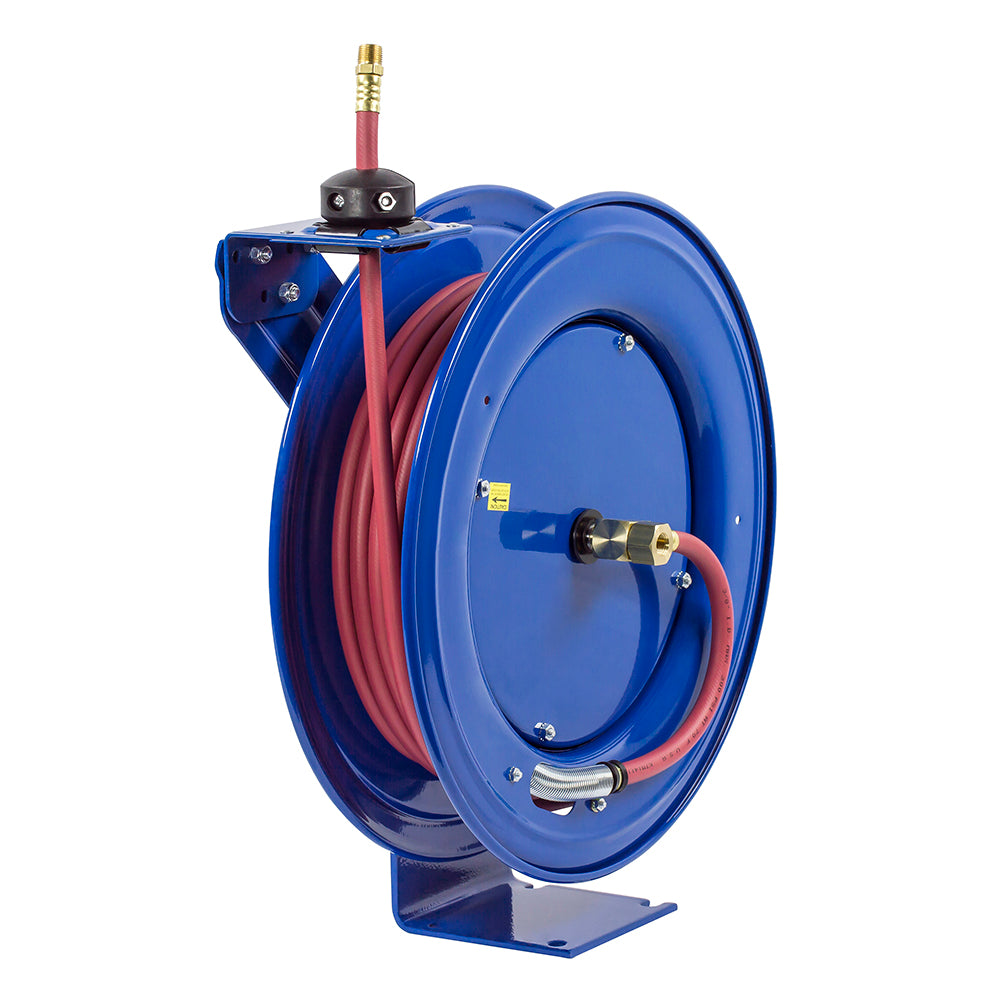

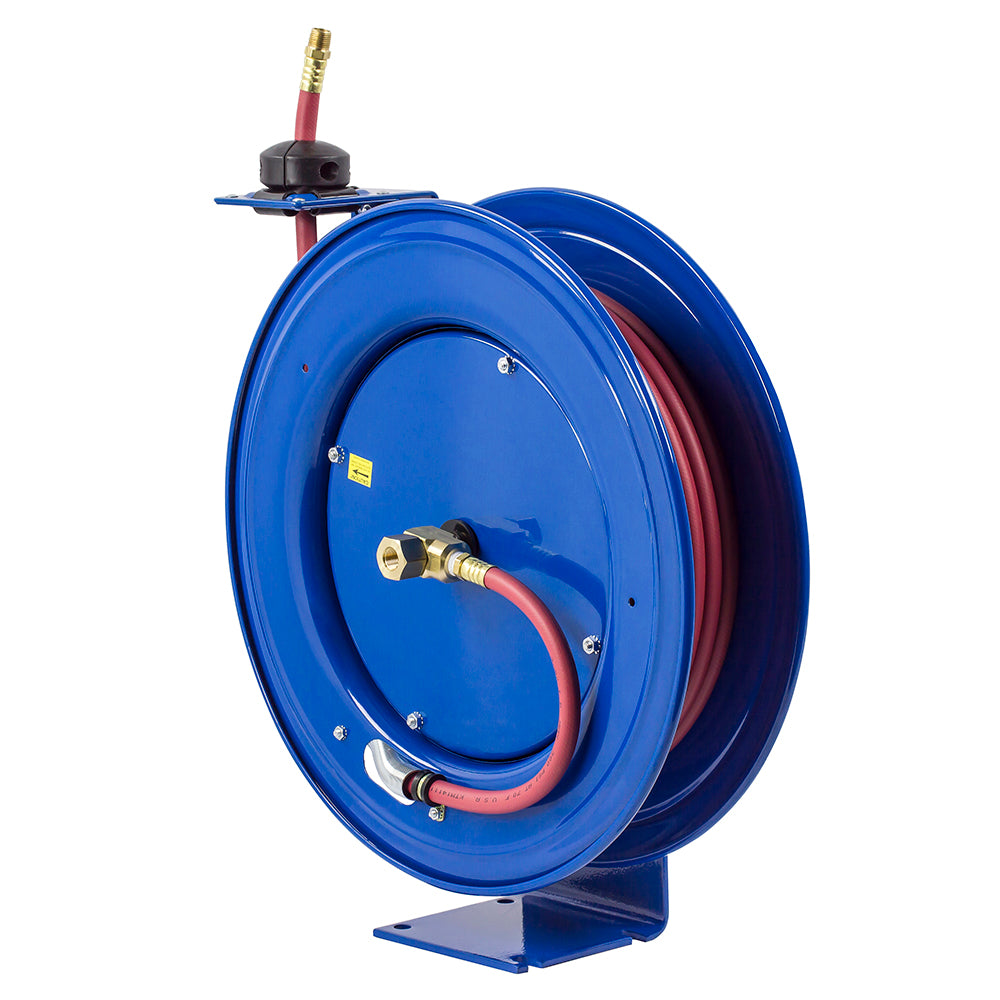

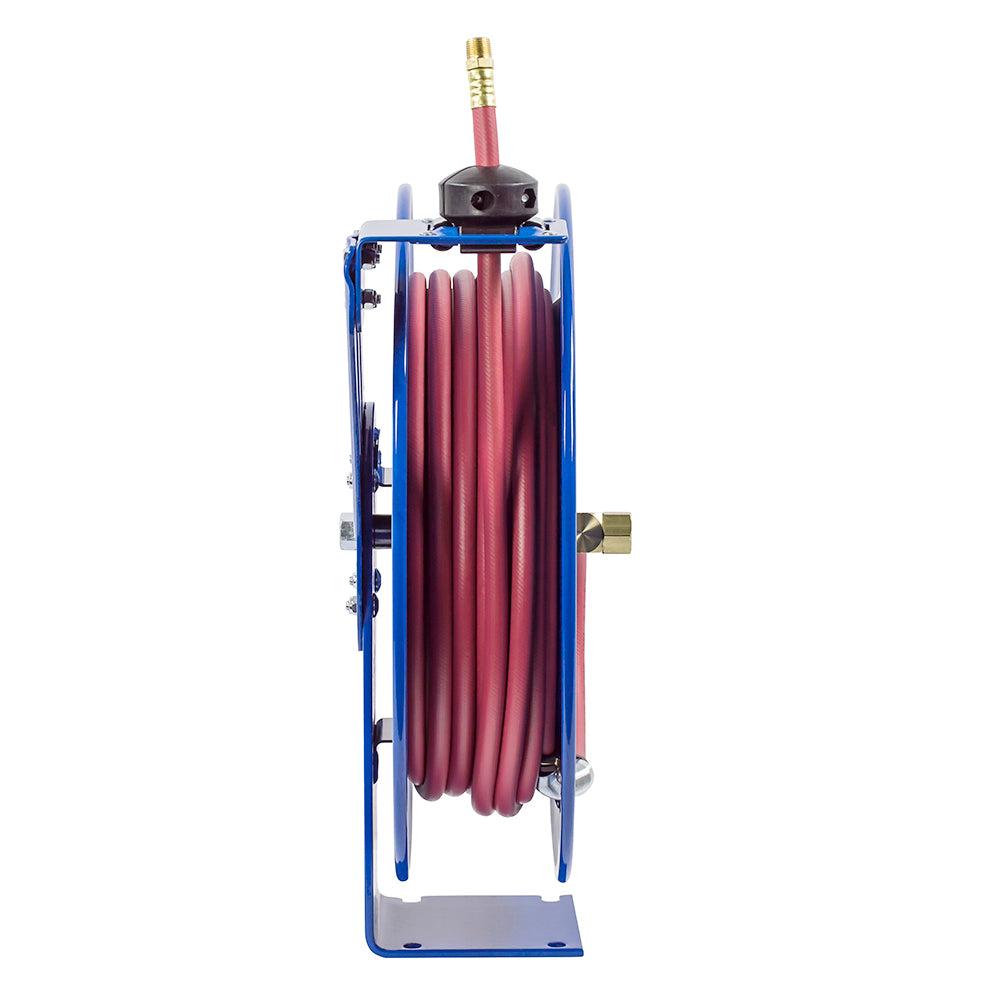

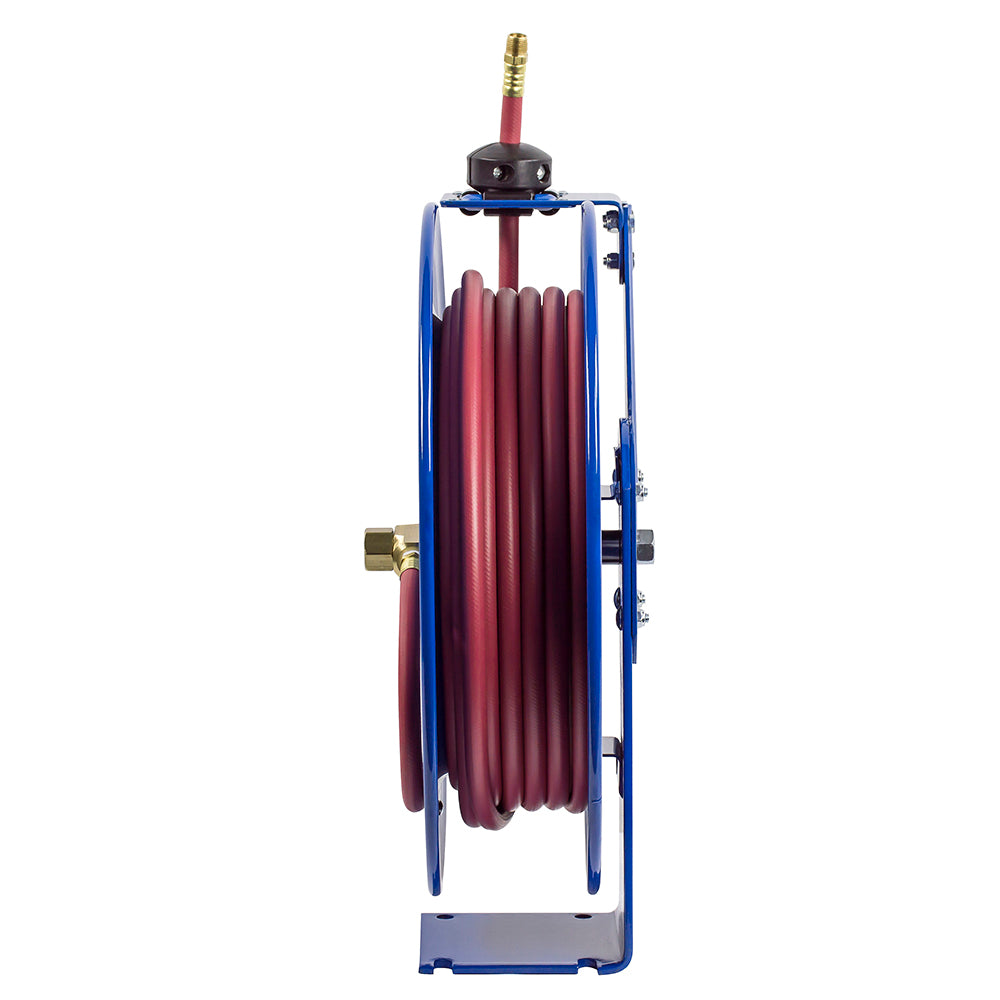

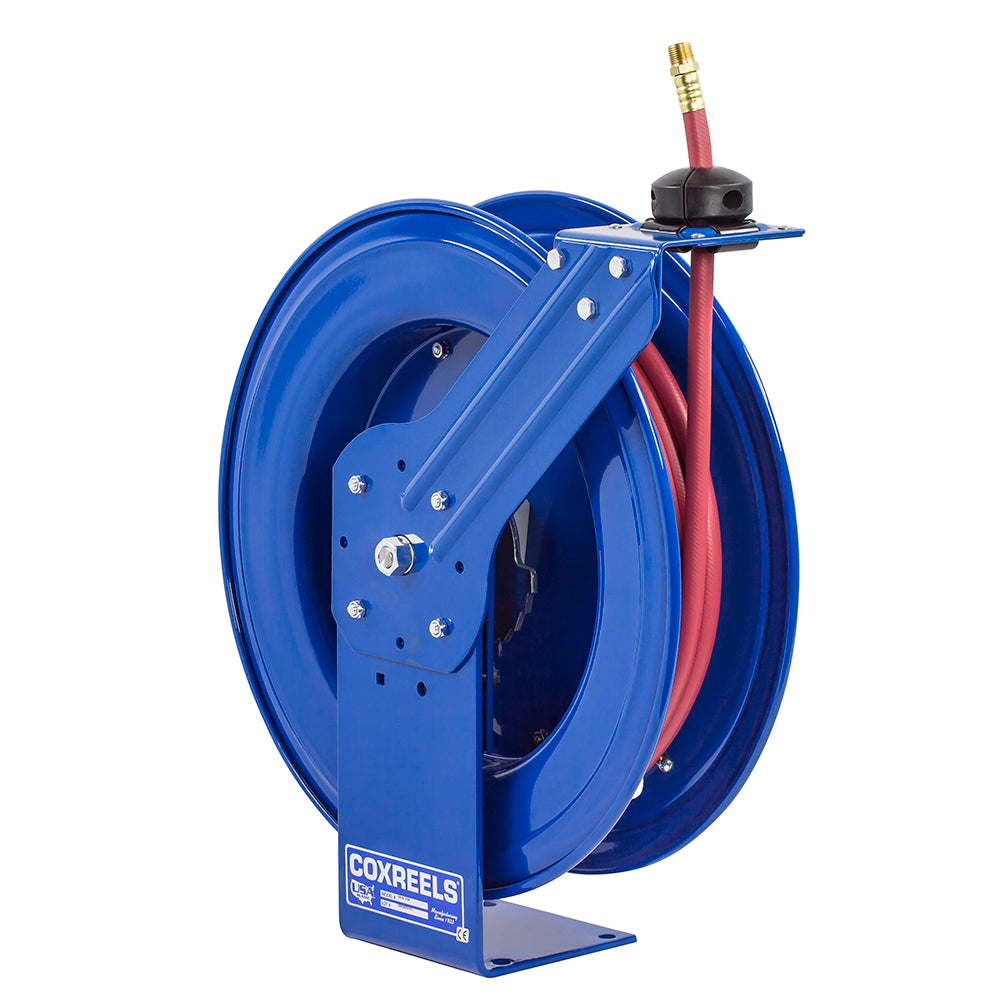

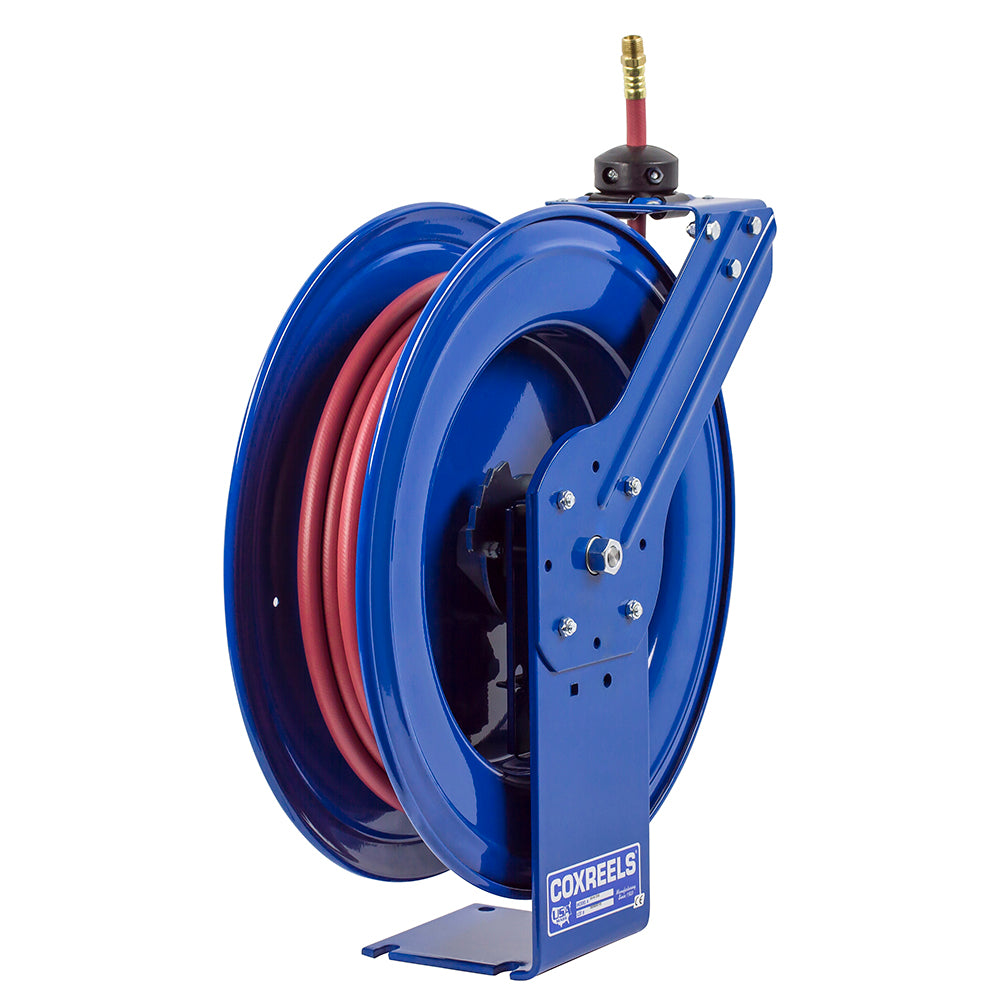

The COXREELS SH Series Super Hub™ is a heavy-duty spring-driven hose reel built for high-pressure applications where you need dependable hose storage and automatic retraction. These HPL models handle 3/8" I.D. hose at pressures up to 4,000 PSI and are available with 35', 40' or 50' hose capacity. Hose is not included, so you can match the reel with the high-pressure hose your equipment requires.
The SH Series uses COXREELS' Super Hub™ dual axle support system to improve stability, reduce vibration and strengthen the reel structure during operation. A 1/4" steel base, 1" solid steel axle and lubricated precision bearings give this high-pressure hose reel a solid foundation for professional equipment. The adjustable guide arm supports wall, floor, vehicle and overhead mounting positions.
Key Features
- 4,000 PSI Rating: All three HPL models are designed for 3/8" I.D. high-pressure hose.
- Super Hub™ Support: Dual axle support increases stability, reduces vibration and strengthens the reel structure.
- Spring-Driven Retraction: Enclosed, factory-tuned cartridge-style spring motor automatically retracts the hose.
- Heavy-Duty Construction: Professional-grade steel construction with a solid one-piece 1/4" steel base and support post.
- Multi-Position Guide Arm: Adjusts for wall, floor, vehicle and overhead mounting positions.
- Multi-Position Lock Ratchet: Secures the hose at the working length you need.
Best For
- High-pressure water and cleaning systems
- Truck- and vehicle-mounted equipment
- Commercial and industrial equipment
- Professional pressure washing setups
Shared Specifications
- Series: COXREELS SH Series Super Hub™
- Reel Type: Spring-driven high-pressure hose reel
- Hose I.D.: 3/8"
- Hose O.D.: 11/16"
- Maximum Pressure: 4,000 PSI
- Hose Included: No
- Construction: Professional-grade heavy-duty steel
- Base & Support Post: Solid one-piece 1/4" heavy-gauge steel
- Axle: 1" solid steel
- Bearings: Lubricated precision bearings
- Support System: Super Hub™ dual axle support
- Spring Motor: Enclosed, factory-tuned cartridge-style
- Spring: Non-corrosive stainless steel
- Locking System: Multi-position lock ratchet
- Guide Arm: Adjustable for wall, floor, vehicle and overhead mounting
- High-Pressure Swivel: Zinc-plated steel
- Swivel Seals: Nitrile
- Hose Stop: Adjustable solid rubber
- Finish: Chip-resistant and rust-inhibiting CPC powder coat
- Mounting Pattern: 4" x 5"
- Base Dimensions: 6" x 6"
- Country of Manufacture: Made in USA
- Manufacturer Warranty: 2-year limited warranty
Variant Specifications
HPL-N-335 – 3/8" x 35'
- Model: HPL-N-335
- Hose I.D.: 3/8"
- Hose O.D.: 11/16"
- Hose Capacity: 35'
- Maximum Pressure: 4,000 PSI
- Hose Included: No
- Shipping Weight: 52 lbs.
- Overall Dimensions: 8.75" W x 25.5" H x 19.5" L
- Mounting Pattern: 4" x 5"
- Base Dimensions: 6" x 6"
HPL-N-340 – 3/8" x 40'
- Model: HPL-N-340
- Hose I.D.: 3/8"
- Hose O.D.: 11/16"
- Hose Capacity: 40'
- Maximum Pressure: 4,000 PSI
- Hose Included: No
- Shipping Weight: 54 lbs.
- Overall Dimensions: 8.75" W x 25.5" H x 19.5" L
- Mounting Pattern: 4" x 5"
- Base Dimensions: 6" x 6"
HPL-N-350 – 3/8" x 50'
- Model: HPL-N-350
- Hose I.D.: 3/8"
- Hose O.D.: 11/16"
- Hose Capacity: 50'
- Maximum Pressure: 4,000 PSI
- Hose Included: No
- Shipping Weight: 53 lbs.
- Overall Dimensions: 9.25" W x 25.5" H x 19.5" L
- Mounting Pattern: 4" x 5"
- Base Dimensions: 6" x 6"
