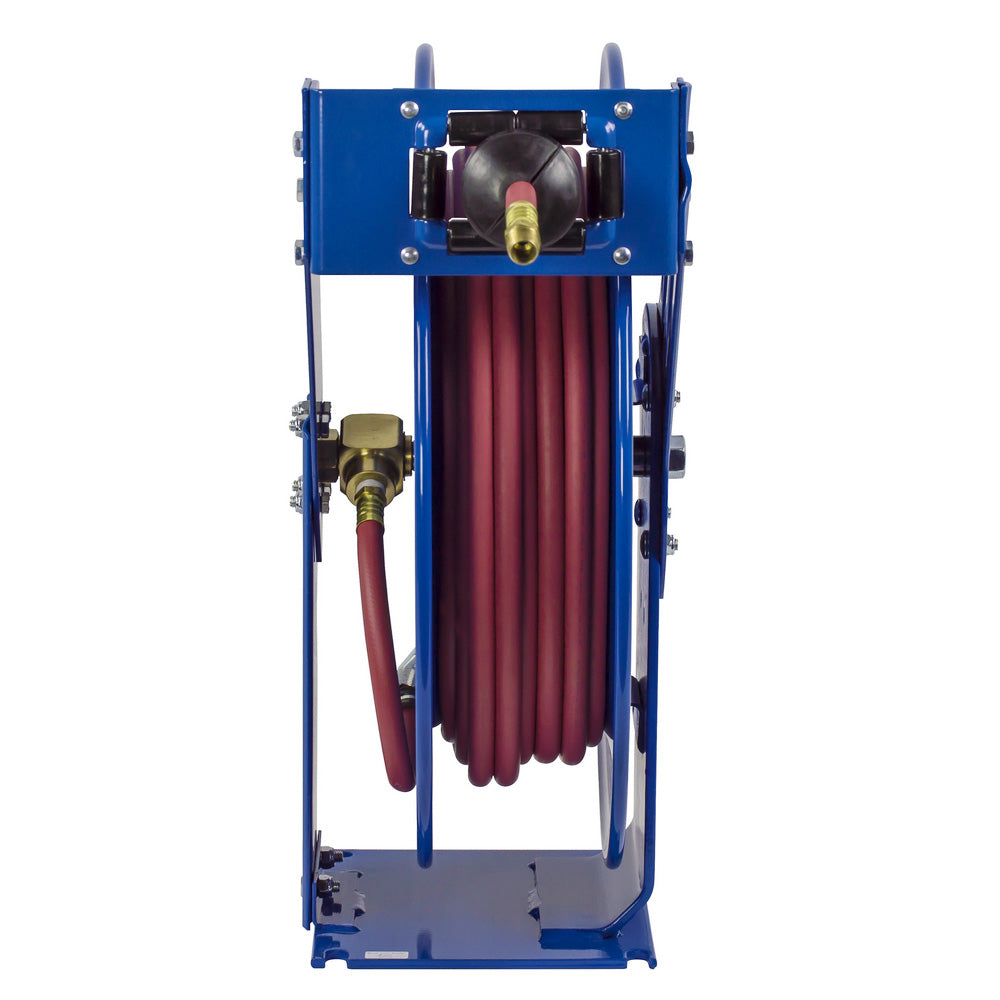

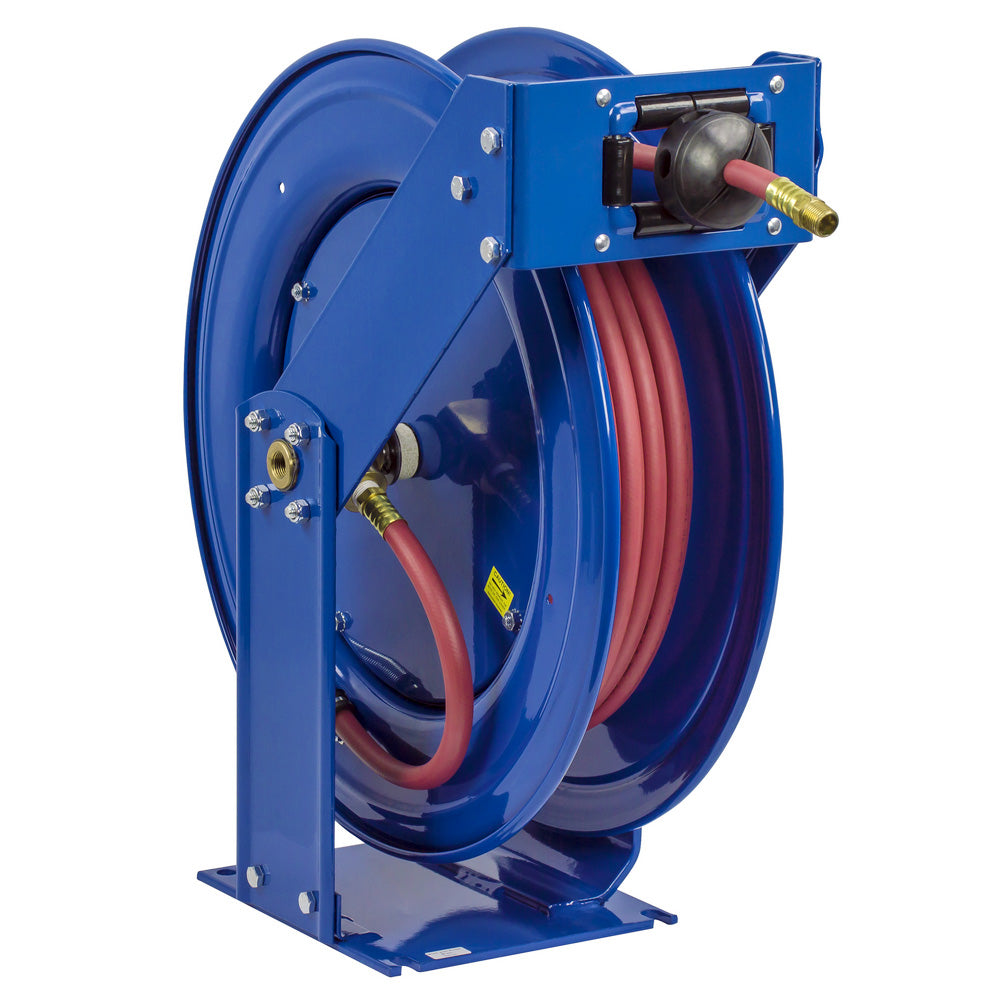

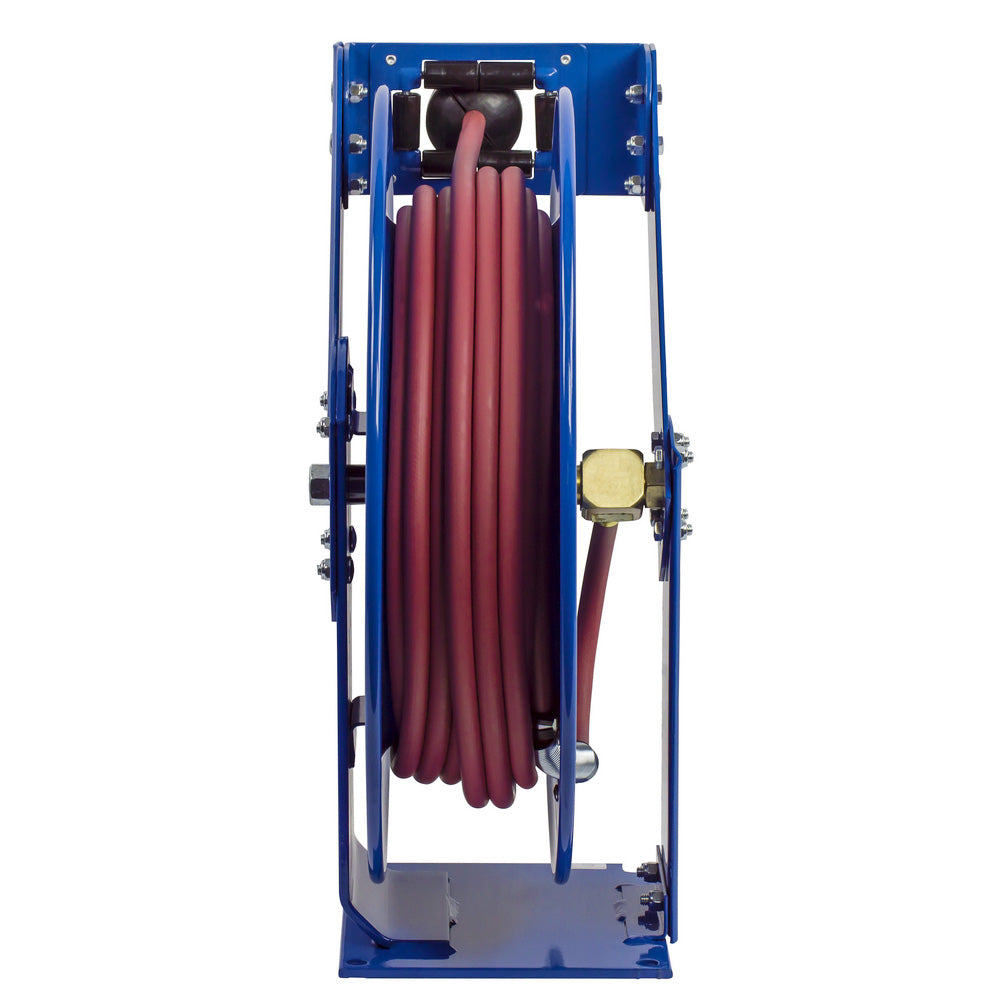

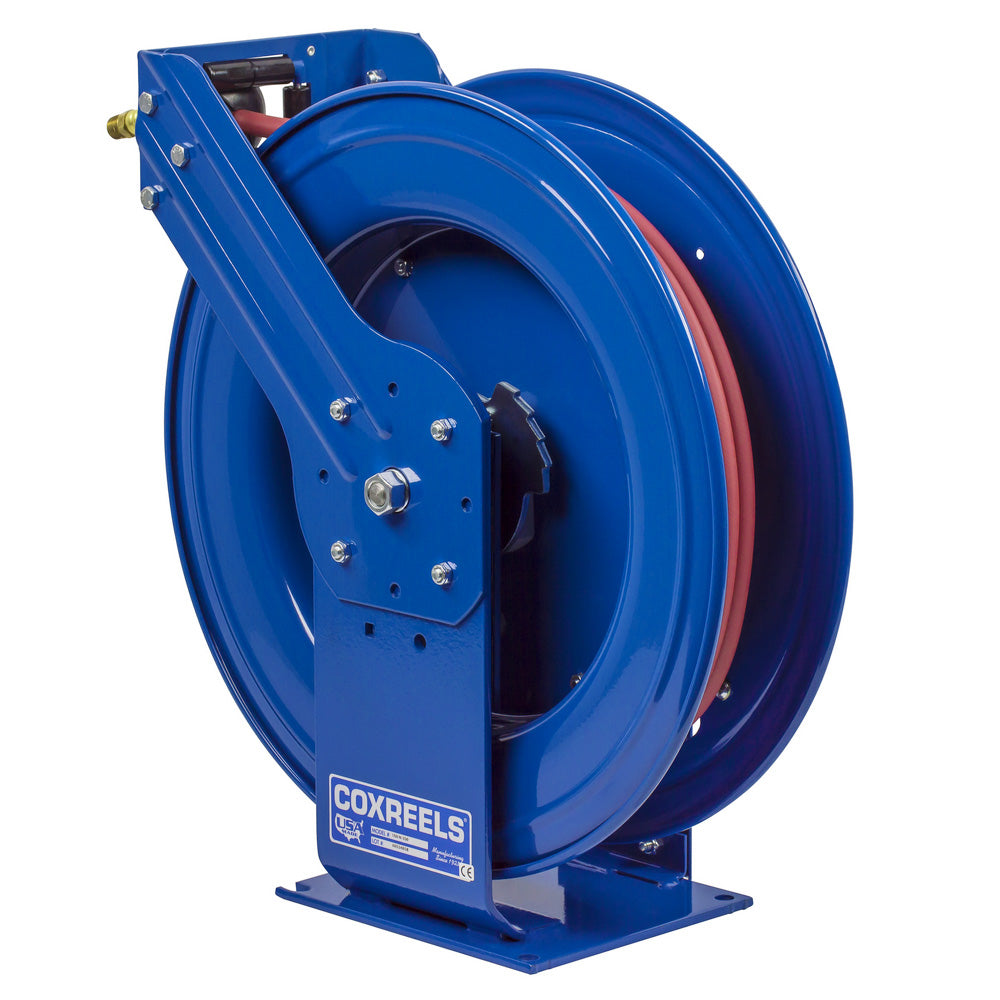

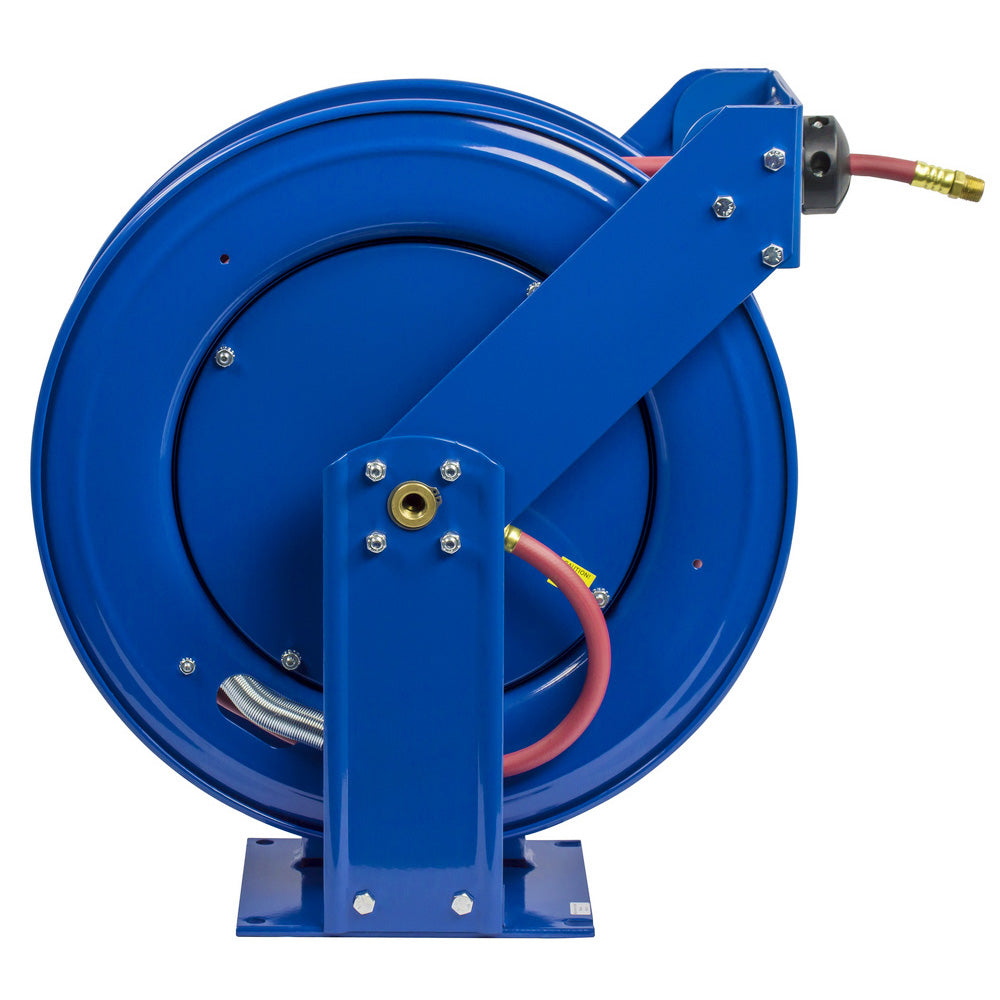

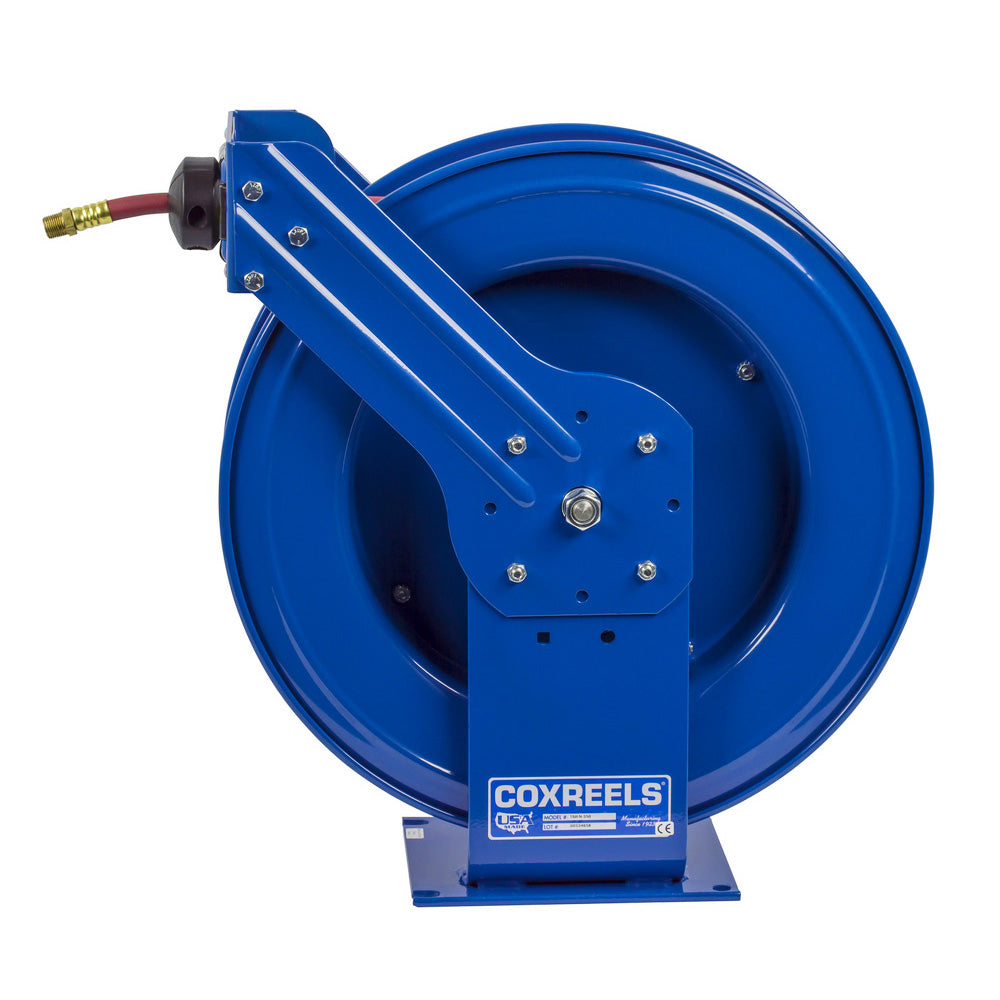

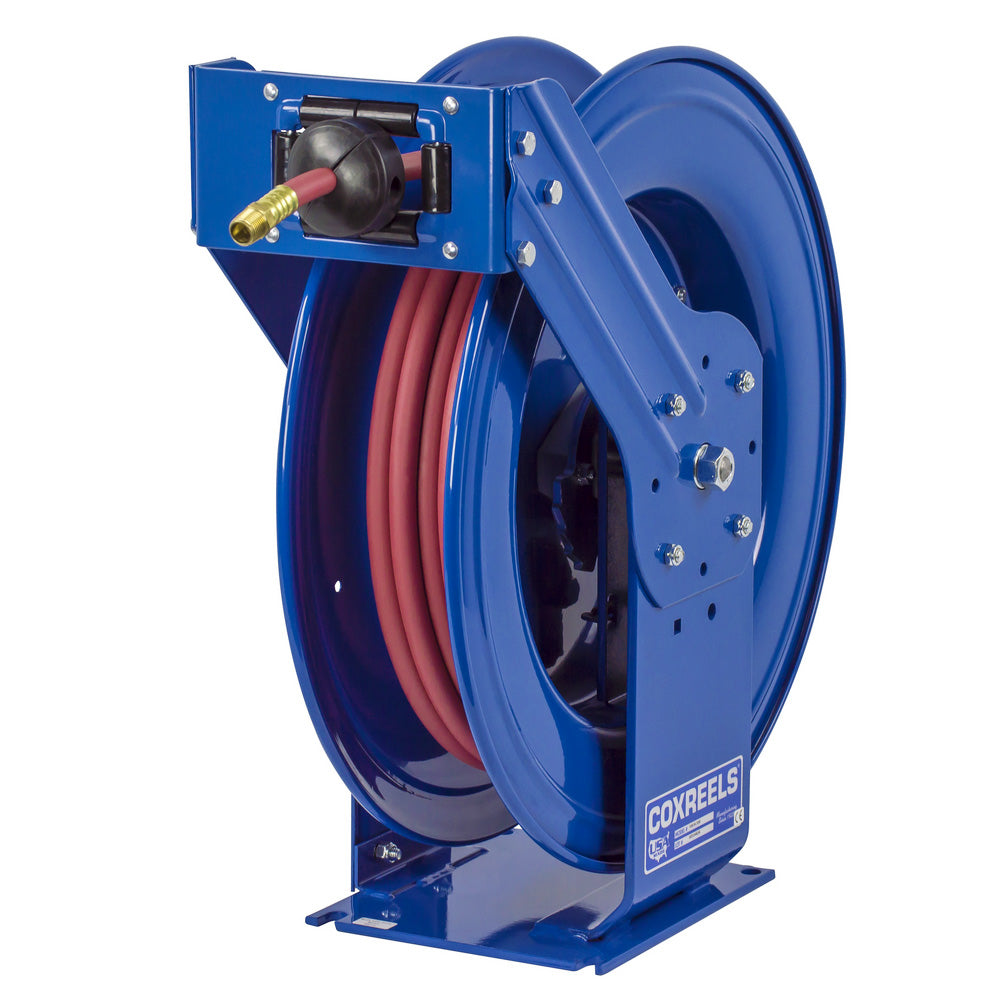

The COXREELS T Series gives you a heavy-duty spring-driven hose reel built for high-pressure hose and rugged mobile equipment. The THPL-N-350 and THPL-N-375 are designed for 3/8" hose, handle pressures up to 4,000 PSI and come without hose so you can pair the reel with the hose that fits your setup.
Built around a dual-pedestal 1/4" steel base, the T Series uses COXREELS' Super Hub™ triple axle support to strengthen the reel and help reduce vibration. An enclosed cartridge-style spring motor handles automatic retraction, while the multi-position lock ratchet holds the hose at the working length you need. The adjustable guide arm also gives you flexibility for wall, floor, vehicle or overhead installation, making this high-pressure hose reel a practical fit for truck-mounted and professional equipment builds.
Best For
- Truck- and vehicle-mounted equipment
- High-pressure water and cleaning systems
- Commercial and industrial equipment builds
- Rugged mobile applications
Shared Specifications
- Series: COXREELS T Series Truck Mount
- Reel Type: Spring-driven hose reel
- Hose I.D.: 3/8"
- Hose O.D.: 11/16"
- Maximum Pressure: 4,000 PSI
- Hose Included: No
- Construction: Professional-grade heavy-duty steel
- Base & Support Posts: Solid one-piece 1/4" heavy-gauge steel
- Axle: 1" solid steel
- Bearings: Lubricated precision bearings
- Spring: Non-corrosive stainless steel
- Spring Motor: Enclosed, factory-tuned cartridge-style
- Locking System: Multi-position lock ratchet
- Guide Arm: Adjustable for wall, floor, vehicle and overhead mounting
- High-Pressure Swivel: Zinc-plated steel
- Swivel Seals: Nitrile
- Hose Stop: Adjustable solid rubber
- Finish: Chip-resistant and rust-inhibiting CPC powder coat
- Mounting Pattern: 7" x 8"
- Base Dimensions: 8" x 9"
- Manufacture: Made in USA
