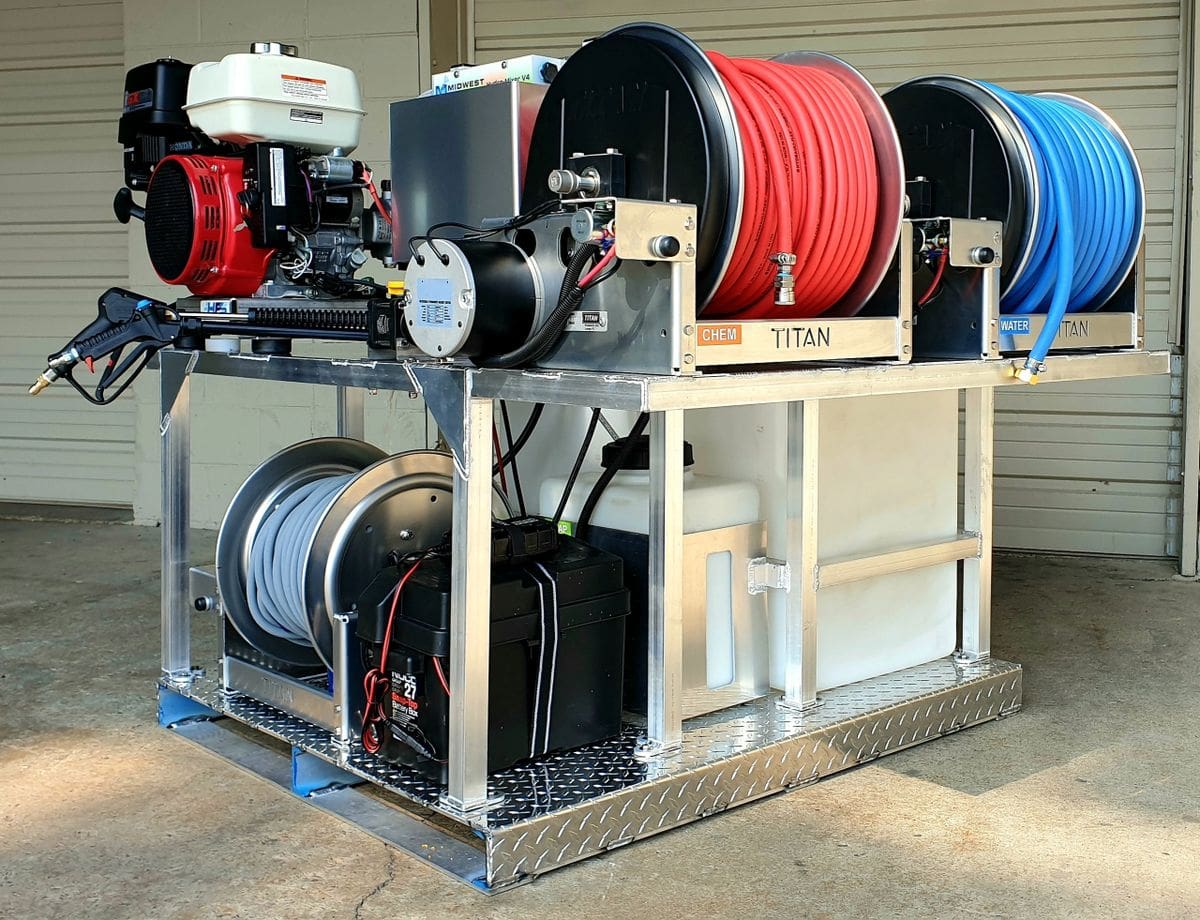

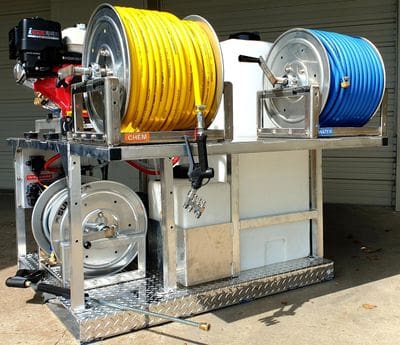

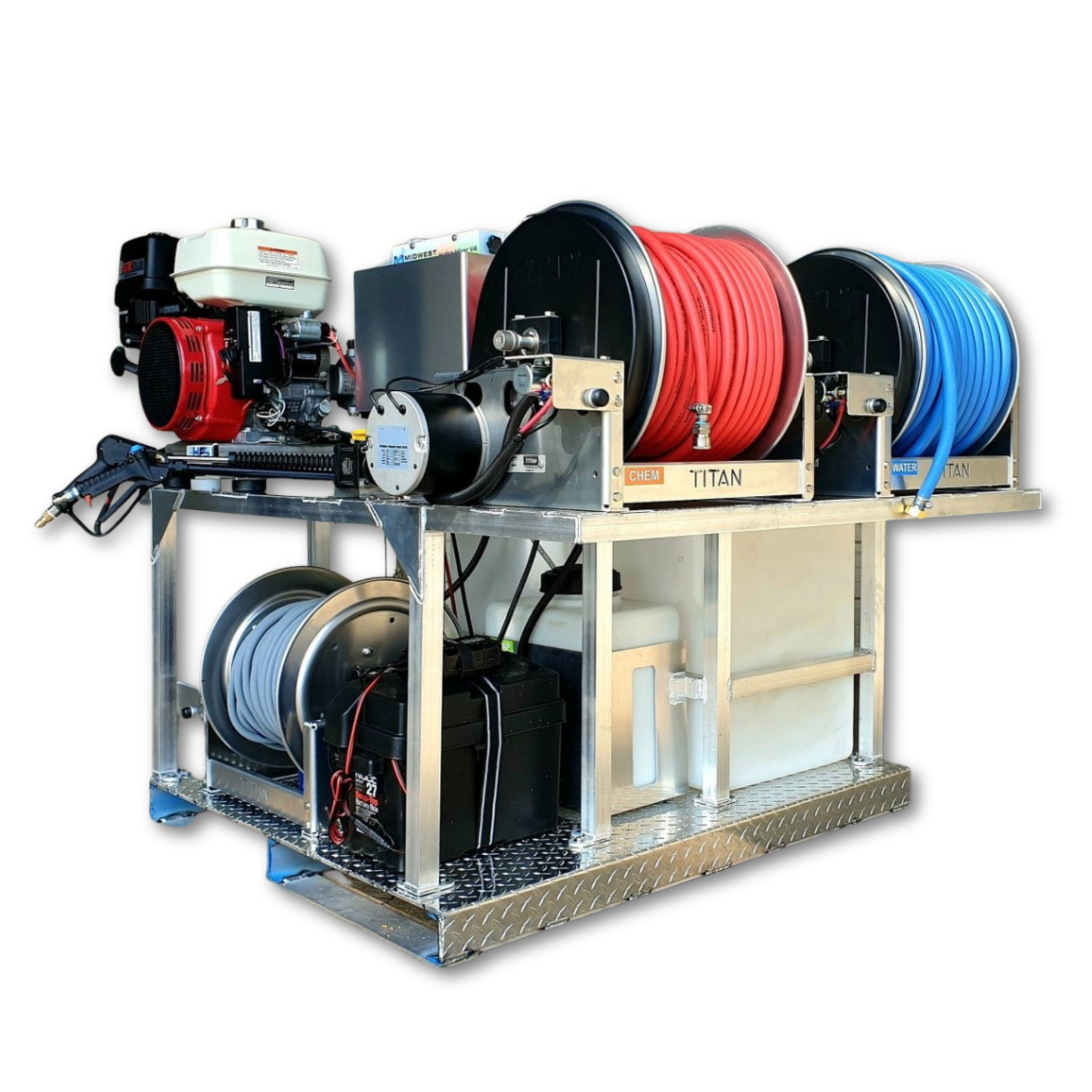

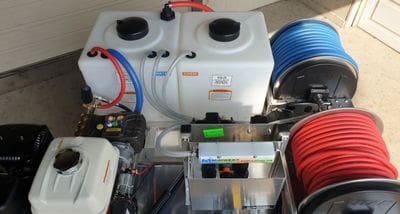

The Cyclone + PW Compact Soft Wash & Pressure Washer Truck Skid gives exterior cleaning contractors both soft washing and pressure washing capability on a compact 40" x 48" platform. The soft wash side uses a 7 GPM Remco Fatboy 12V on-demand pump, while the pressure washer delivers 5.7 GPM at 3000 PSI with a gear-drive pump and electric-start Honda GX390 gas engine.
With 55-gallon water and SH tanks, a 7-gallon soap tank, three matching hose reels, and a Hydro-Mixer V4 proportioning system, this compact soft wash and pressure washer skid keeps your main cleaning equipment together in one organized package. Its smaller footprint is designed for short truck beds and compact pickups where space matters.
Soft Wash System

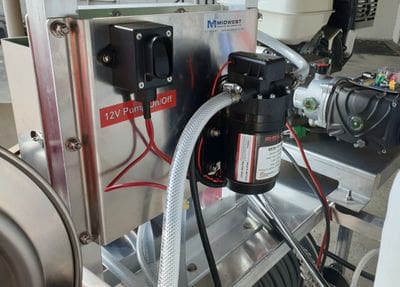

- Power Source: 12V electric
- Pump: Remco Fatboy on-demand pump
- Flow: 7 GPM
- Electrical Protection: Fuse protection
- Control: Heavy-duty on/off switch
- Soft Wash Hose: 200' x 1/2"
- Connections: Stainless steel quick connects on the soft wash system
Pressure Washer System
- Flow: 5.7 GPM
- Pressure: 3000 PSI

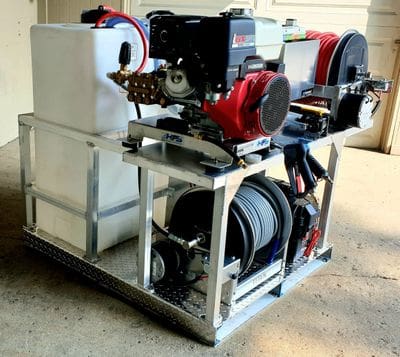

- Engine: Electric-start Honda GX390 gas engine
- Drive: Gear drive
- Bypass: Set up to bypass back to the water tank
- High-Pressure Hose: 200' x 3/8" non-marking gray hose
Tank Configuration
- Water Tank: 55 gallons
- SH Tank: 55 gallons
- Soap Tank: 7 gallons
- Water Tank Shutoff: Float shutoff included
- Supply Filtration: Strainers and filters on all supply lines

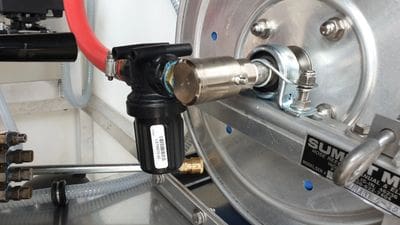

- SH Filtration: SH-resistant filter with titanium clamp

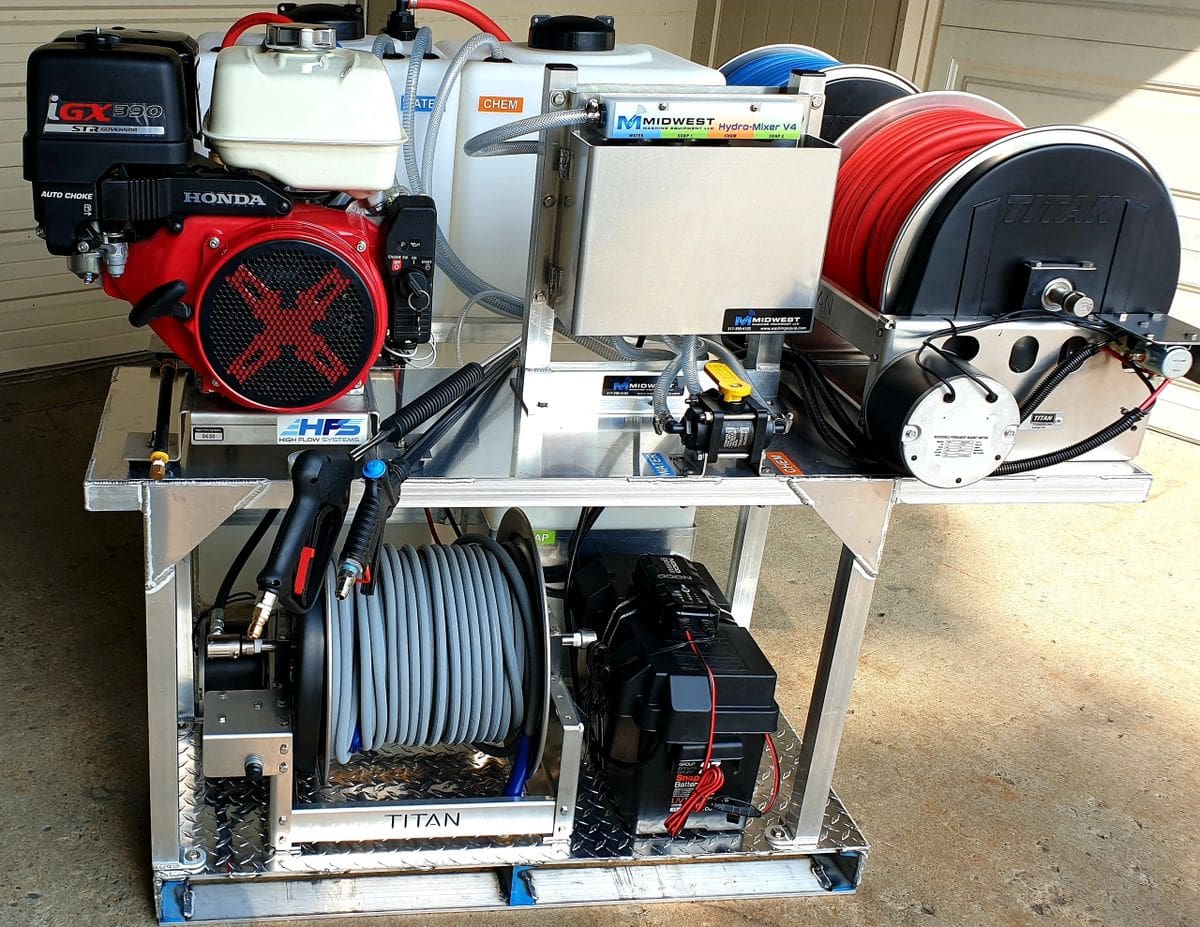

Hydro-Mixer V4
- Proportioning System: Hydro-Mixer V4
- Soap Control: Single soap valve
- Flush System: Manual flush valve

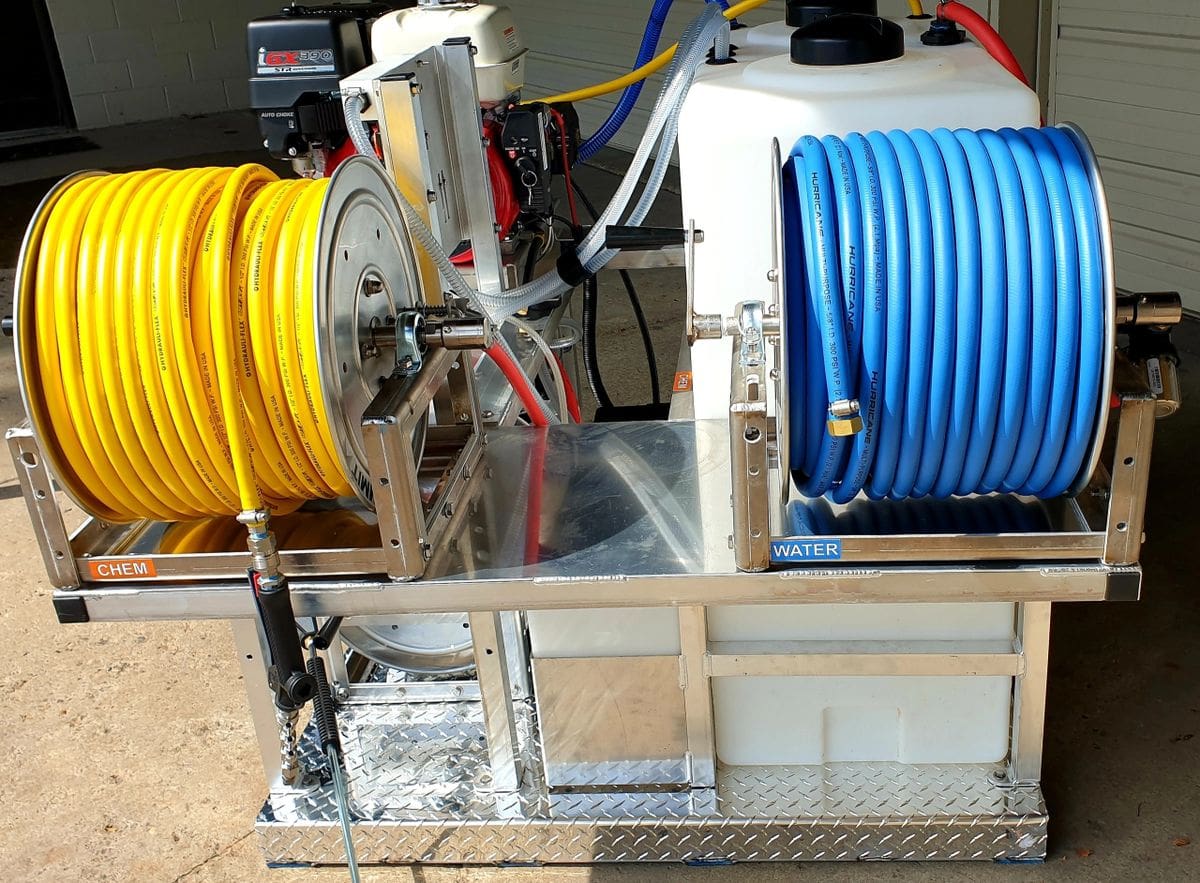

Hose & Reel Setup
- Hose Reels: Three matching 12" manual reels with aluminum frames and stainless steel internals
- Soft Wash Hose: 200' x 1/2"
- Water Supply Hose: 200' x 5/8"
- High-Pressure Hose: 200' x 3/8" non-marking gray hose
What’s Included
- Soft Wash Equipment: Soft wash gun, wand, and J-Rod with nozzles
- Pressure Washer Equipment: High-pressure gun, wand, and four nozzles
- Hose Reels: Three matching manual reels
- Hoses: Soft wash, water supply, and high-pressure hoses
- Filtration: Supply-line strainers and filters, including an SH-resistant filter with titanium clamp
- Skid: Fully welded heavy-duty aluminum skid with a single curb-side shelf
Available Options
- Electric Water Supply Reel: Electric reel upgrade available
- Electric Soft Wash Reel: Electric reel upgrade available
- Electric Pressure Washer Reel: Electric reel upgrade available
- Deep-Cycle Marine Battery: Available as an option
- Remote Rinse Module: Available as an option
Specifications
- SKU: CYC-PW55
- Soft Wash Power Source: 12V electric
- Soft Wash Pump: Remco Fatboy on-demand pump
- Soft Wash Flow: 7 GPM
- Pressure Washer Power Source: Gas
- Pressure Washer Engine: Electric-start Honda GX390
- Pressure Washer Flow: 5.7 GPM
- Pressure Washer Pressure: 3000 PSI
- Pressure Washer Drive: Gear drive
- Water Capacity: 55 gallons
- SH Capacity: 55 gallons
- Soap Capacity: 7 gallons
- Skid Dimensions: 40" x 48"
- Skid Material: Fully welded heavy-duty aluminum
- Battery: 12V deep-cycle battery not included
