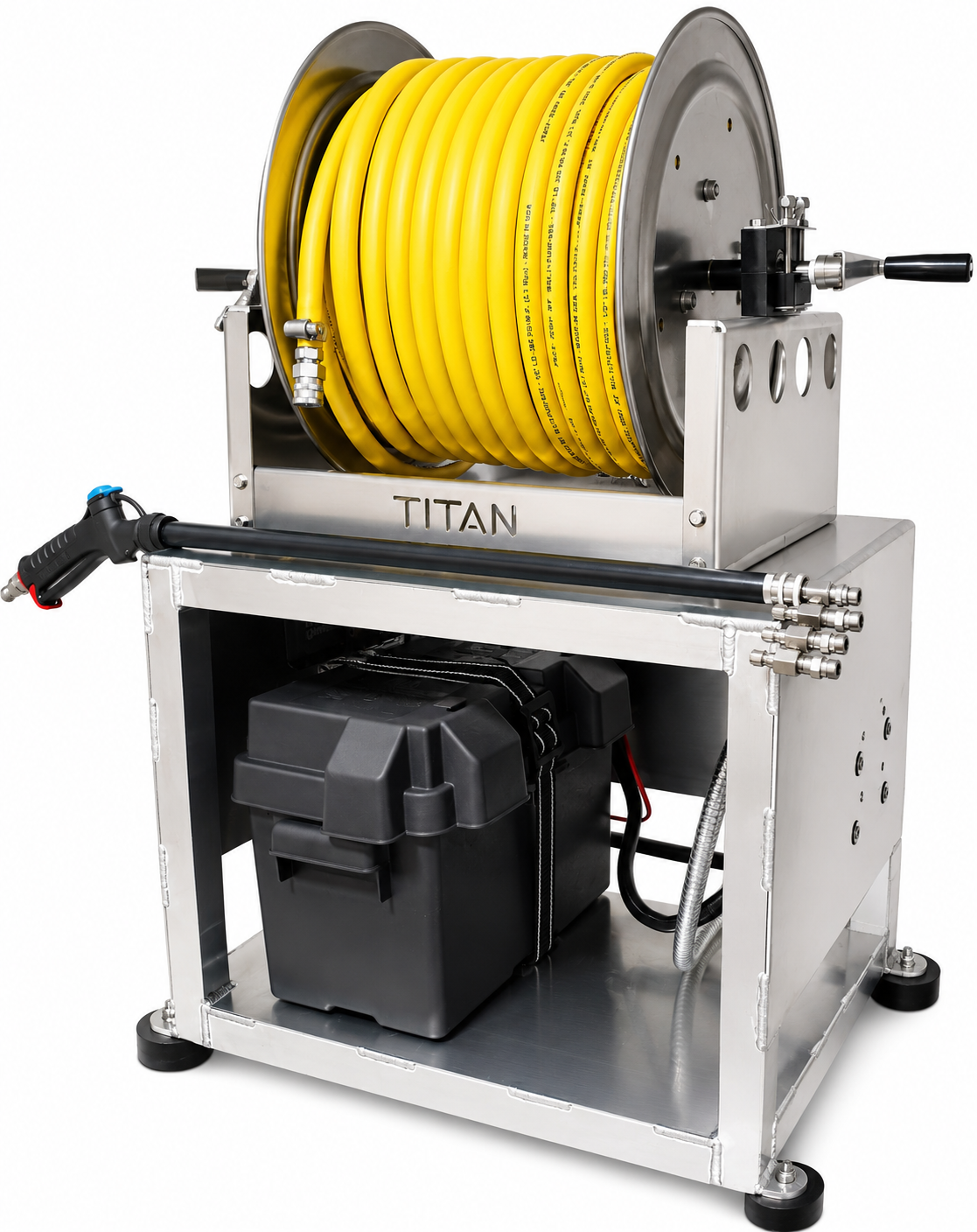

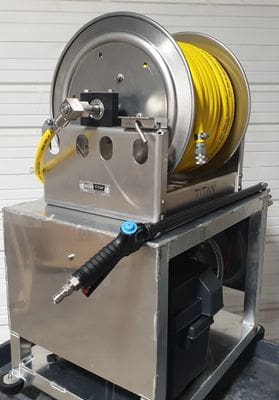

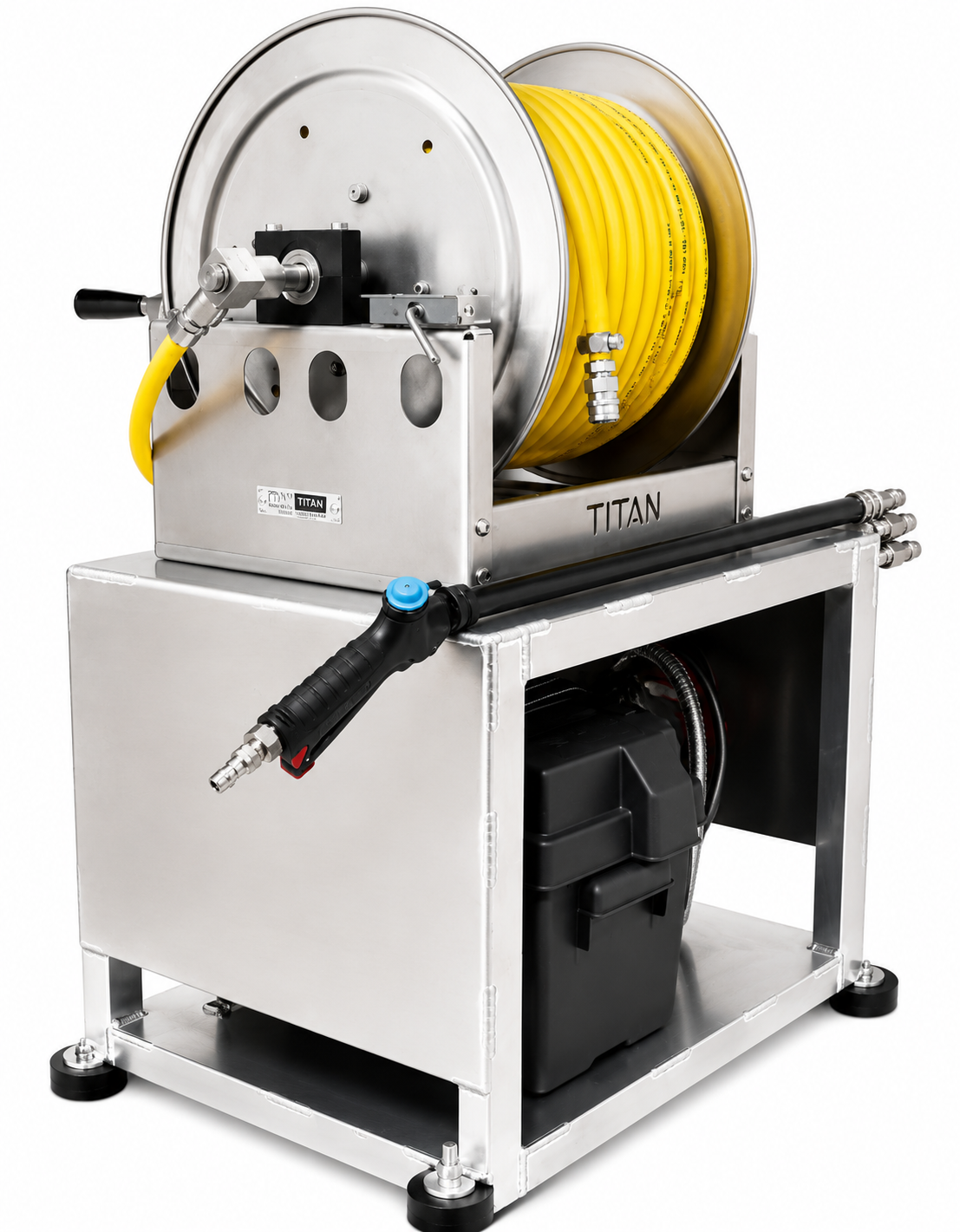

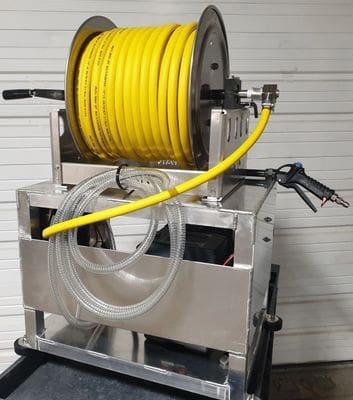

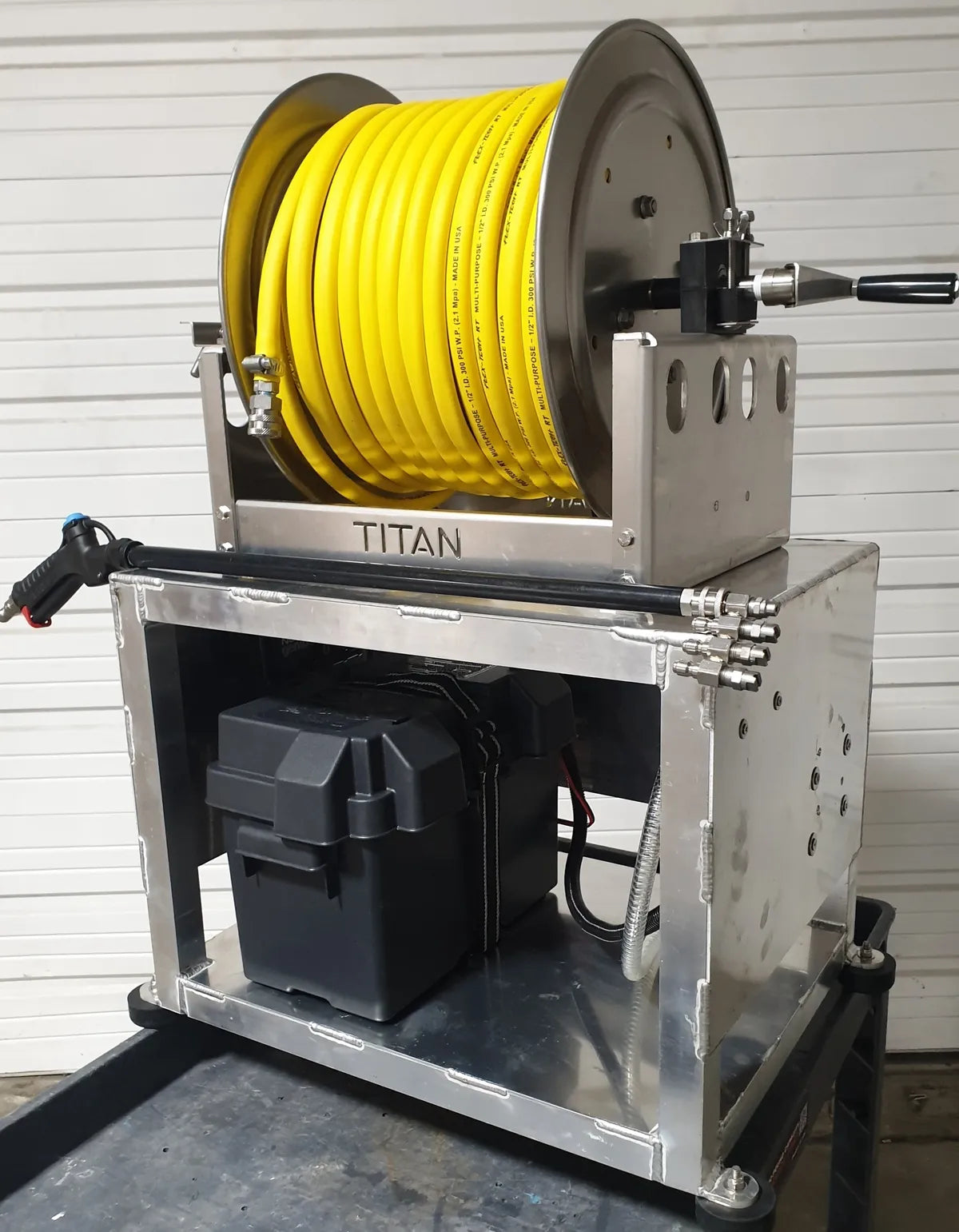

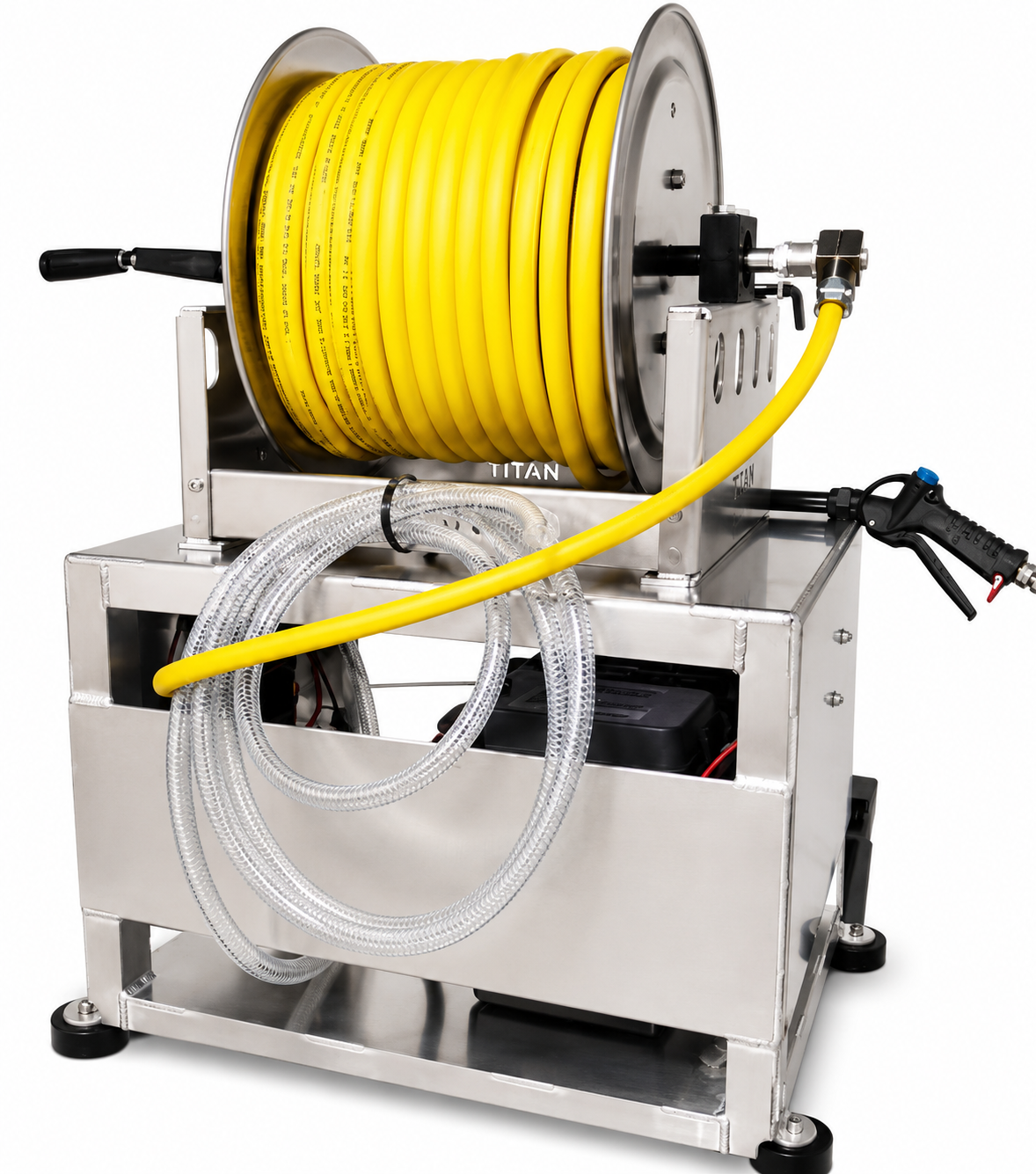

The Electric Mini 12V Soft Wash System gives you a compact, ready-to-build-around setup for professional exterior cleaning. Choose a 5.3 GPM or 7 GPM Remco 12-volt on-demand pump, both rated at 100 PSI. The pump sits on a dedicated stand for easier access when it’s time for service, removal, or replacement.

This 12V soft wash system comes pre-wired and includes a heavy-duty hose reel, 200' of chemical hose, onboard battery charger, spray trigger, wand, and J-Rod nozzle setup. You supply the solution tank and battery, making the Mini soft wash system a practical choice for building a compact soft wash rig or adding a dedicated soft wash system to an existing truck or trailer setup.

Pump Options

• 5.3 GPM Pump: Remco 12V on-demand pump rated at 5.3 GPM and 100 PSI
• 7 GPM Pump: Remco 12V on-demand pump rated at 7 GPM and 100 PSI
• Pump Style: 12-volt on-demand

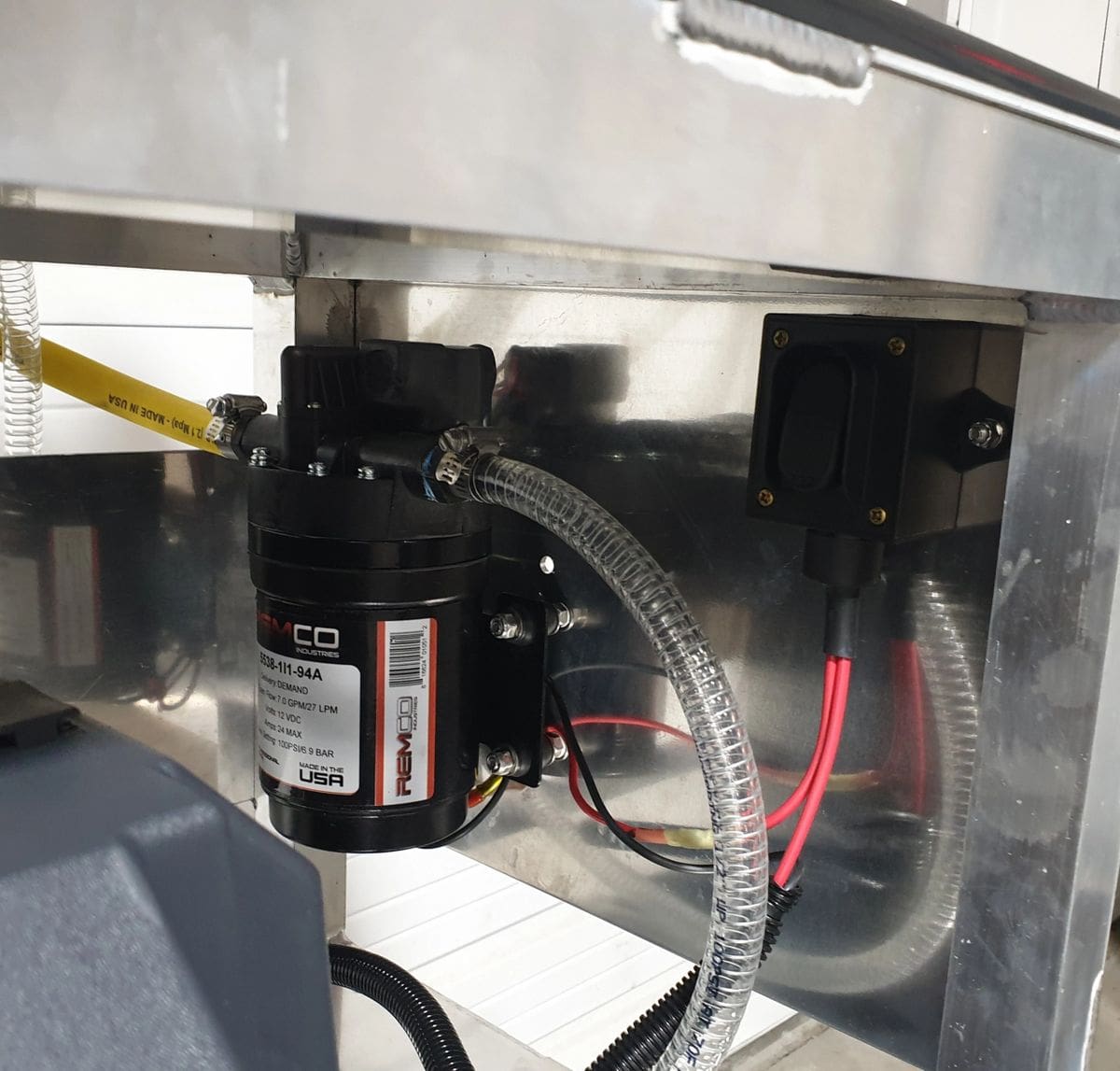

• Pump Mount: Dedicated stand designed to simplify pump access and service

Electrical System

• Power: 12V electrical system
• Wiring: Pre-wired with 10-gauge wire
• Battery Box: Included

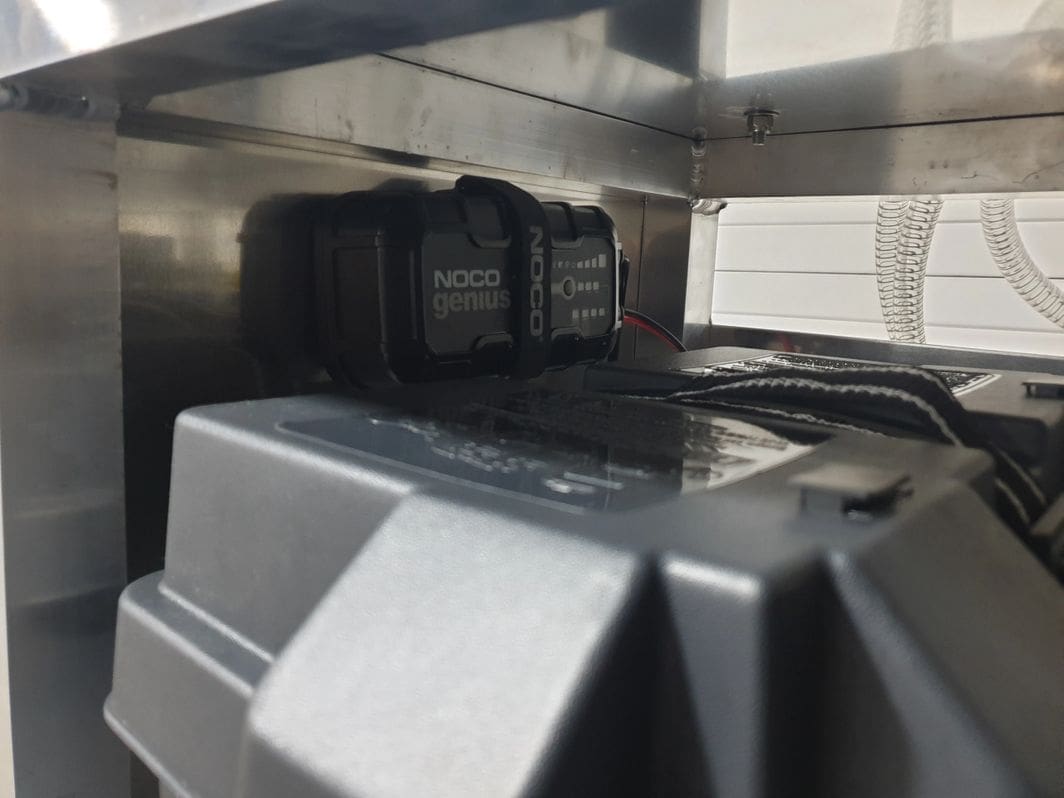

• Battery Charger: NOCO 10-amp onboard charger included
• Fuse: 25- or 30-amp fuse, depending on configuration
• Power Switch: Heavy-duty on/off switch
• Battery: Customer supplied; Group 24 or larger is recommended by the manufacturer

Hose & Reel Setup

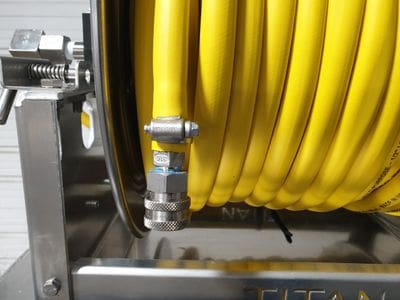

• Discharge Hose: 200' x 1/2" Flex Tech chemical hose
• Supply Hose: 10' x 1/2" poly-braided hose
• Supply Strainer: PVC strainer with titanium hose clamp
• Hose Reel: Heavy-duty aluminum or stainless steel frame
• Reel Internals: Stainless steel

What’s Included

• Remco Pump: Choice of 5.3 GPM or 7 GPM 12V pump
• Pump Stand: Dedicated mount for easier pump access
• Chemical Hose: 200' x 1/2"
• Supply Hose: 10' x 1/2" with strainer
• Hose Reel: Heavy-duty reel with stainless steel internals
• Battery Charger: NOCO 10-amp onboard charger

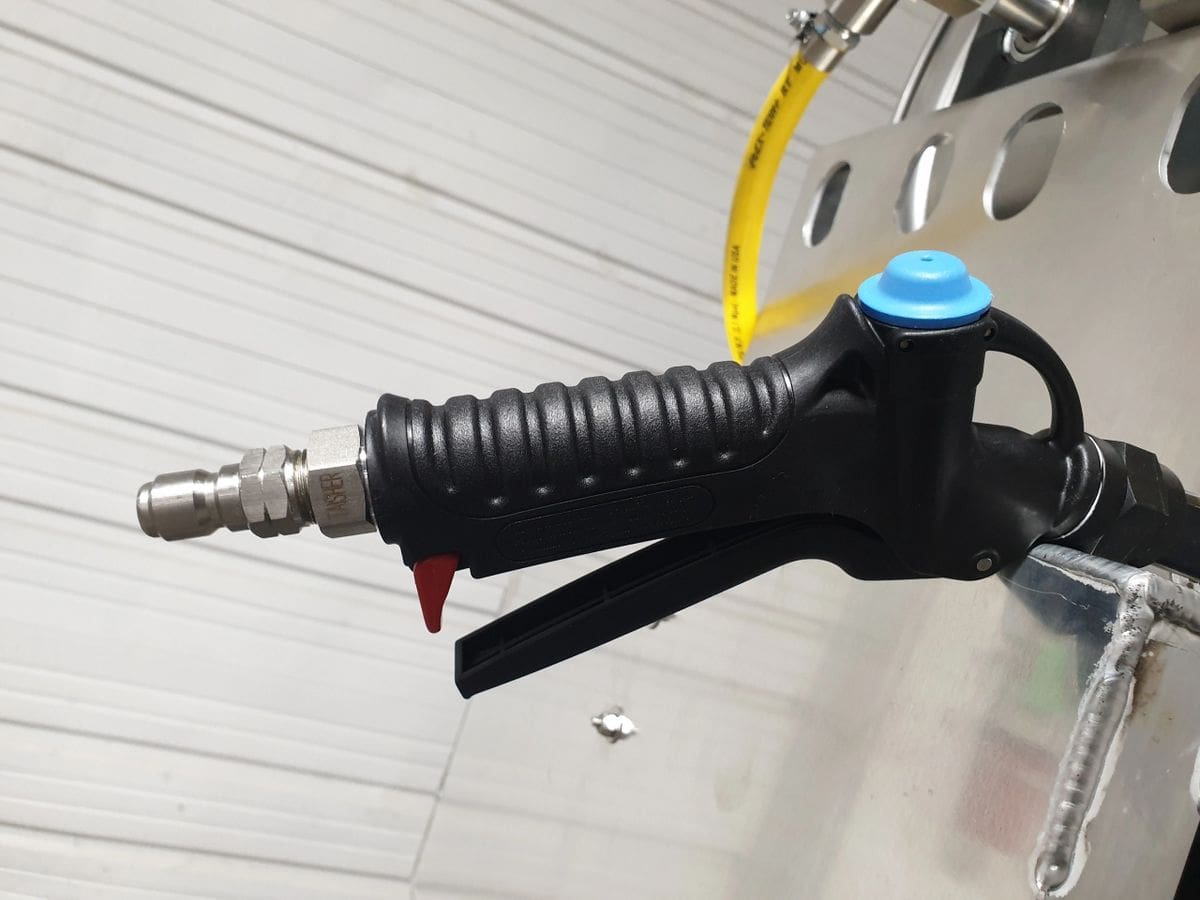

• Spray Trigger: 1/2" poly trigger
• Wand: 18" Schedule 80 PVC wand

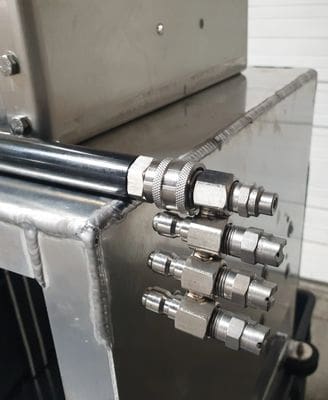

• J-Rod: Four nozzles in 0°, 15°, 25°, and 40° patterns

Construction

• Frame: Fully welded heavy-duty aluminum
• Fasteners: Stainless steel
• Fittings: Stainless steel, aluminum, poly, or PVC depending on application
• Chemical-Side Materials: Manufacturer specifies no steel, brass, or galvanized components

Available Options

• Hydro-Mixer: Optional proportioning system eliminates the need for batch mixing or allows the unit to be incorporated into an existing multi-tank setup
• Electric Hose Reel: Electric reel upgrade is available

Specifications

• SKU: MINI-CYC
• Pump Options: 5.3 GPM / 100 PSI or 7 GPM / 100 PSI
• Pump Brand: Remco
• Power: 12V
• Chemical Hose: 200' x 1/2"
• Supply Hose: 10' x 1/2"
• Overall Dimensions: 24" W x 18" D x 36" H
• Box/Frame Dimensions: 24" x 18" x 18"
• Tank: Not included
• Battery: Not included; Group 24 or larger recommended
