ENZ KBRV 1" Rotating Sewer Cleaning Nozzle

ENZ KBRV Rotojet Rotating Combination Forward Nozzle

Description
Downloads

Description

The ENZ KBRV 1" rotating sewer cleaning nozzle combines forward-directed and radial rotating jets with dedicated thrust jets for aggressive pipe cleaning. The KBRV design uses two semi-radial jets directed forward at 45° and two radial jets at 90°, helping loosen deposits and flush removed material forward through the pipe.

Both models use a 1" connection, include a front jet and handle operating pressures up to 3,600 PSI. Choose the 2.4" Rotojet 04.060V for 4"–12" pipe or the larger 4" Rotojet 04.100AV for 8"–24" pipe. Flow requirements and jet sizes vary by model, so you can match the nozzle to your pipe size and available jetter flow.

Best For

Removing grease deposits
Removing plastic deposits
Cleaning heat exchangers
Flushing service pipes from the house connection toward the main line

Downloads

Owner's Manual

↓ DOWNLOAD

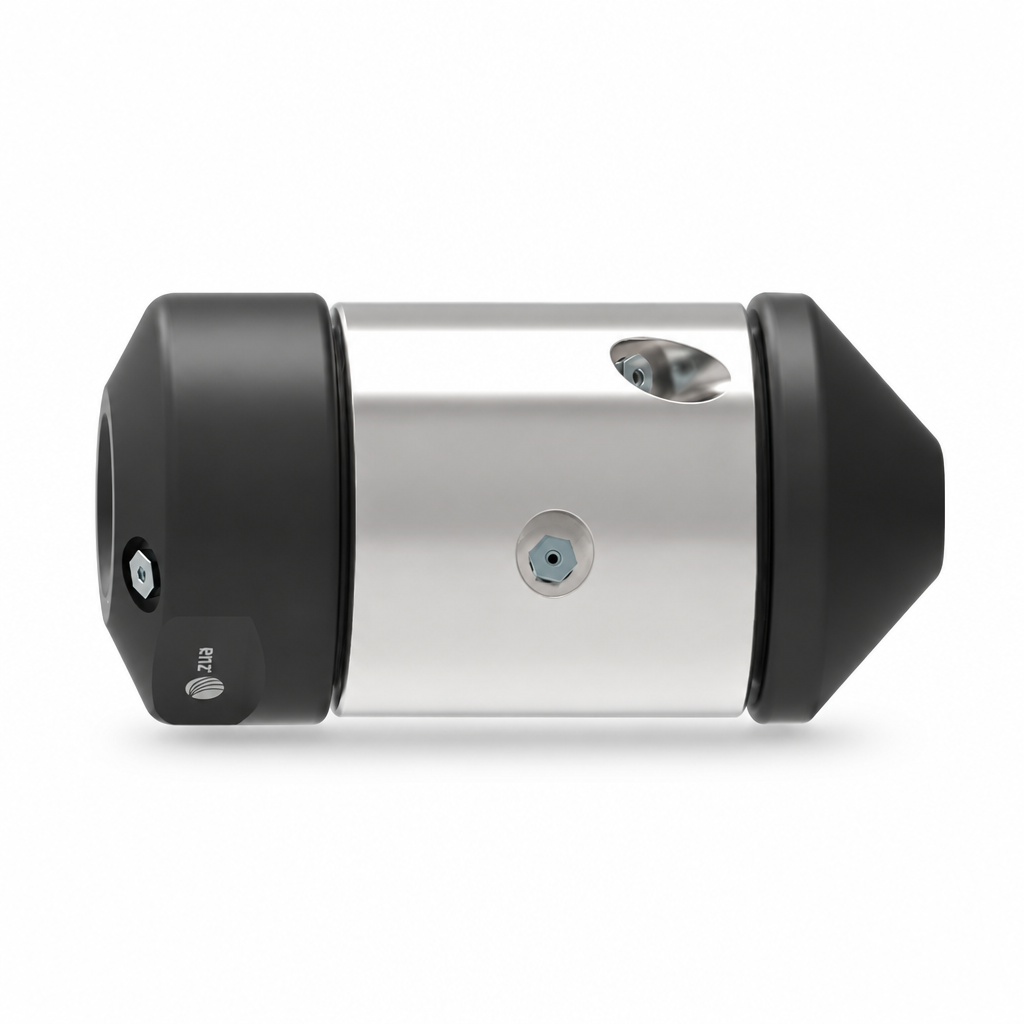

1" ENZ KBRV Rotating Combination Forward Nozzle

KEY FEATURES

Forward-Directed Cleaning: Two semi-radial jets at 45° help loosen deposits and flush removed material forward.
Radial Cleaning Jets: Two jets positioned at 90° provide cleaning action directly against the pipe wall.
Dedicated Thrust Jets: Three rear thrust jets provide the propulsion required by the KBRV jet arrangement.
Front Jet: Both models include a forward-facing jet for additional cleaning action.
Two Rotojet Sizes: Choose a 2.4" or 4" model based on pipe diameter and available flow.
3,600 PSI Maximum: Both 1" models are rated for operating pressures up to 3,600 PSI.
