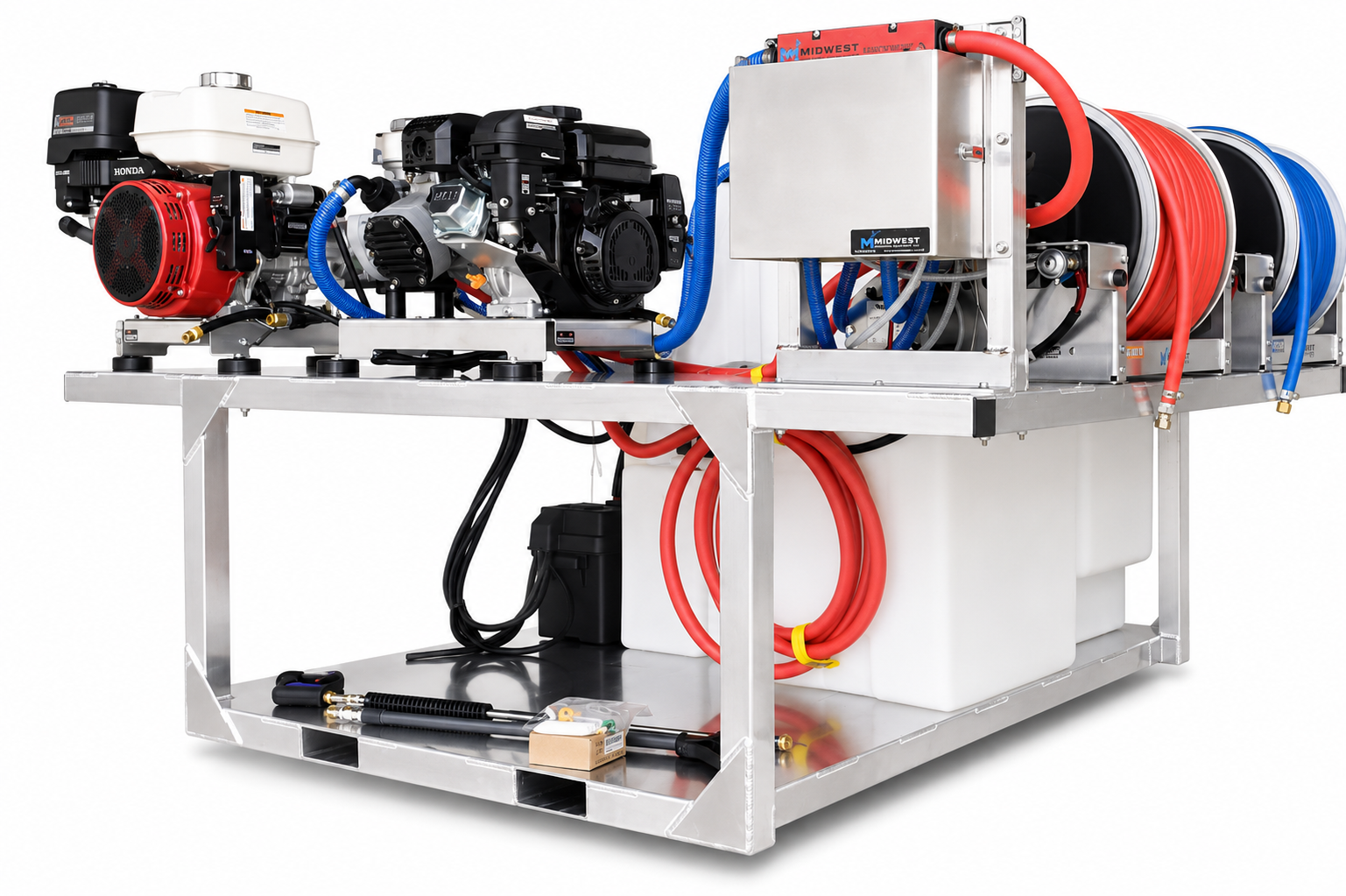

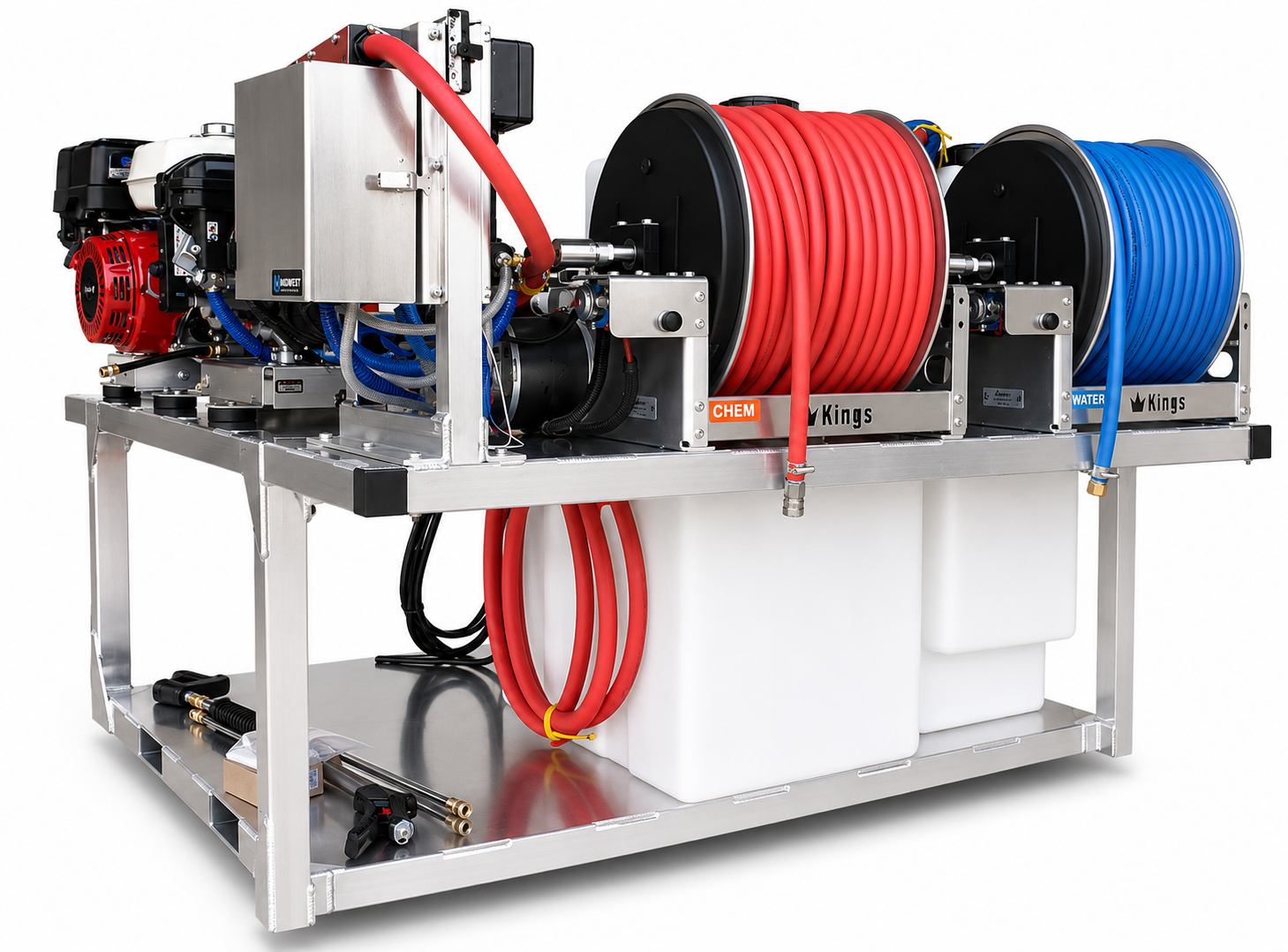

The Gas Soft Wash + Pressure Washer Truck Skid combines a professional soft wash system and pressure washer into one compact 48" x 60" skid. Built to fit short-bed trucks while still leaving room for an aftermarket ladder rack, this setup gives exterior cleaning crews water, chemical storage, proportioning, hose management, and both low-pressure chemical application and high-pressure cleaning in one package.
The pressure washer side delivers 5.7 GPM at 3000 PSI using an electric-start Honda iGX390 and gear-drive pump setup that bypasses back to the water tank. For soft washing, choose a gas-powered Comet P40 or AR45 pump paired with the Hydro-Mixer XL proportioning system. With three hose reels, 100 gallons of onboard water, 55 gallons of SH capacity, and two 7-gallon soap tanks, this soft wash and pressure washer skid is built for contractors who want a complete truck-mounted cleaning rig.
Soft Wash System
- Pump Options: Gas-powered Comet P40 or AR45
- Listed Output: Product description lists the soft wash system at approximately 11.5 GPM / 290 PSI
- Starting System: Pull-start engine on the standard soft wash setup
- Proportioning: Hydro-Mixer XL with dual soap metering valves
- Flush Control: Manual flush valve built into the proportioning system
- Spray Equipment: Includes soft wash gun, wand, and J-Rod with nozzles
Pressure Washer System
- Flow Rate: 5.7 GPM
- Pressure: 3000 PSI
- Engine: Electric-start Honda iGX390
- Drive: Gear-drive pump configuration
- Bypass: Pressure washer is set up to bypass back to the water tank
- Spray Equipment: Includes high-pressure gun, wand, and four nozzles
Tank Configuration
- Water Capacity: 100 gallons
- SH Tank: 55 gallons
- Soap Tanks: Two 7-gallon tanks
- Float Shutoff: Included in the water tank
- Supply Protection: Strainers and filters are installed on supply lines
- SH Filter: Chemical-resistant filter with titanium clamp
Hose & Reel Setup
- Reel Count: Three matching 12" manual hose reels
- Reel Construction: Aluminum frames with stainless steel internals
- Soft Wash Hose: 200' x 5/8"
- Water Supply Hose: 200' x 5/8"
- Pressure Washer Hose: 200' x 3/8" non-marking gray high-pressure hose
- Quick Connects: Stainless steel quick connects used on the soft wash system
Skid Construction
- Footprint: 48" x 60"
- Material: Fully welded heavy-duty aluminum
- Shelving: Dual shelves built into the skid
- Truck Fit: Compact enough for short-bed truck applications
- Ladder Rack Compatibility: Designed to allow room for an aftermarket ladder rack
What’s Included
- Soft Wash System: Gas-powered soft wash pump setup
- Pressure Washer: 5.7 GPM / 3000 PSI system with Honda iGX390
- Hydro-Mixer XL: Dual soap valves, heavy-duty cover, and manual flush valve
- Soft Wash Hose: 200' x 5/8"
- Water Supply Hose: 200' x 5/8"
- High-Pressure Hose: 200' x 3/8" non-marking gray hose
- Hose Reels: Three matching aluminum-frame manual reels
- Soft Wash Spray Equipment: Gun, wand, and J-Rod with nozzles
- Pressure Washer Spray Equipment: High-pressure gun, wand, and four nozzles
- Tank Hardware: Float shutoff, strainers, and supply-line filters
- Ladder Rack: comes standard
Available Options
- Remote Rinse Module: Optional remote rinse control
- Electric Start Soft Wash Engine: Available as an upgrade
- Electric Water Reel: Optional powered water-supply hose reel
- Electric Soft Wash Reel: Optional powered chemical hose reel
- Electric Pressure Washer Reel: Optional powered high-pressure hose reel
- Ladder Rack: Available as an add-on
- Surface Cleaner Tray: Available when the ladder rack option is selected
Specifications
- SKU: TSU-PW100
- Skid Size: 48" x 60"
- Water Capacity: 100 gallons
- SH Capacity: 55 gallons
- Soap Capacity: Two 7-gallon tanks
- Pressure Washer Output: 5.7 GPM at 3000 PSI
- Pressure Washer Engine: Honda iGX390, electric start
- Soft Wash Pressure: 290 PSI listed
- Soft Wash Hose: 200' x 5/8"
- Water Supply Hose: 200' x 5/8"
- High-Pressure Hose: 200' x 3/8"
- Hose Reels: Three 12" manual reels
- Battery: 12V deep-cycle battery not included
