Description

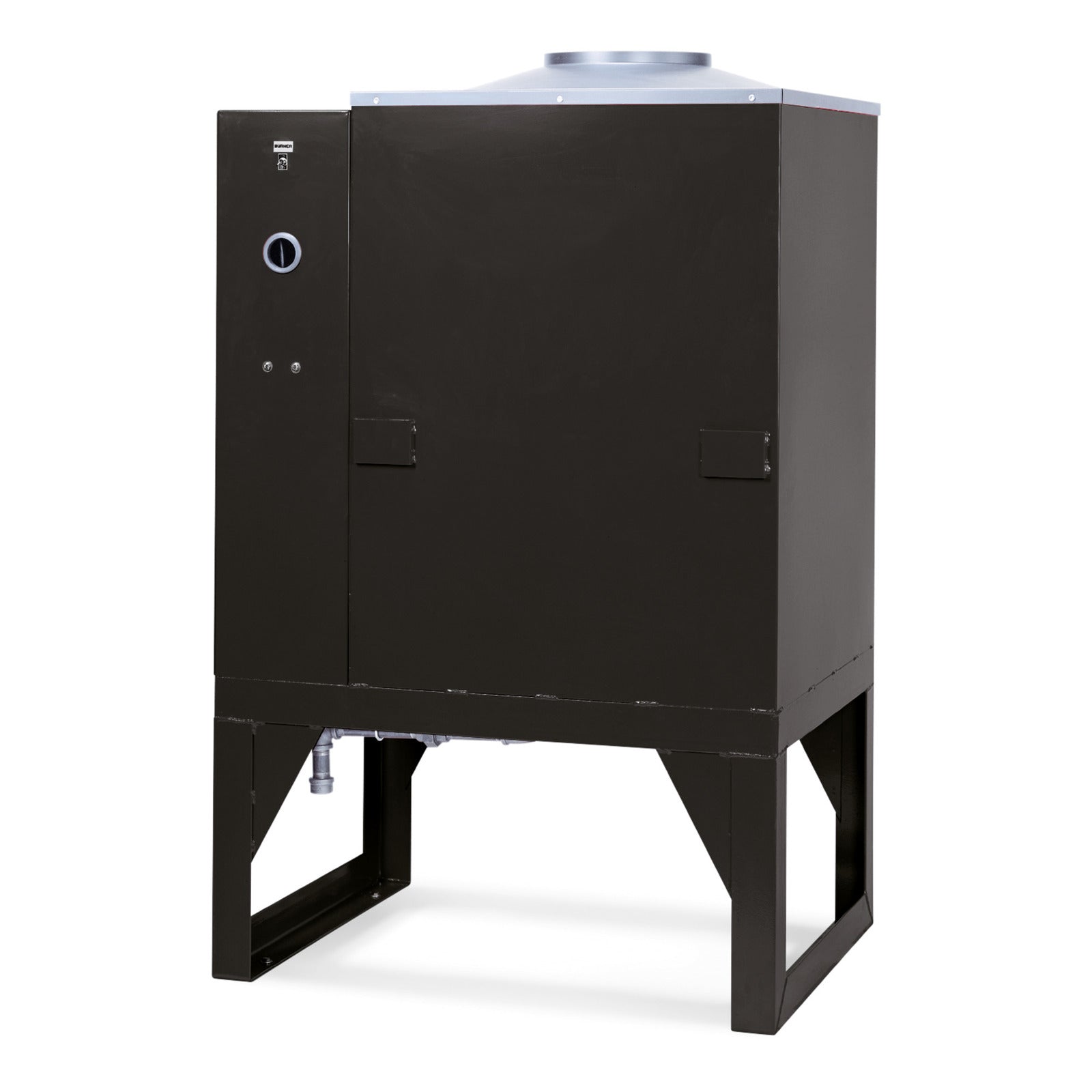

The Hotsy 9400 Series hot water heater module lets you add hot water cleaning performance to an existing cold water pressure washer without replacing your entire system. Designed for pressure washers delivering 6–10 GPM and up to 3,200 PSI, the 9400 Series is ideal for industrial facilities, fleet maintenance, manufacturing plants, food processing operations, and equipment wash bays where hot water is essential for removing grease, oil, and stubborn buildup.

Available in oil-fired and natural gas-fired models, the 9400 Series uses Hotsy's high-efficiency vertical heating coil to quickly heat pressurized water for faster, more effective cleaning. A built-in flow switch automatically controls burner operation, while 115V power and ETL certification make installation straightforward. Whether you're upgrading an existing stationary pressure washer or building a custom cleaning system, the 9400 Series provides a reliable way to add hot water performance.



9400 Series Models

Model Min GPM Max GPM Max PSI Power Amps BTU/hr Fuel
9450 6 10 3,200 115V / 1PH 8 550,872 Oil-Fired
9452 6 10 3,200 115V / 1PH 1 540,000 Natural Gas
9460 6 10 3,200 115V / 1PH 8 720,603 Oil-Fired
9462 6 10 3,200 115V / 1PH 1 950,000 Natural Gas
Downloads

Spec Sheet

HOTSY 9400 Series Hot Water Heater Module,  6–10 GPM | 3200 PSI Max ↓ DOWNLOAD

Owner's Manual

Owner's Manual ↓ DOWNLOAD
  • Oil-Fired
  • Natural-Gas-Fired
  • 550872
  • 720603
  • 540000
  • 950000
Specifications
Model Number
9450
Part Number
1.103-905.0
PSI
3200
GPM
6.0
Phase
1
Burner Fuel
Oil
Dimensions (L × W × H)
32.5"x25"x50.5"
Weight
525

CALL NOW

The Hotsy 9400 Series hot water heater module lets you add hot water cleaning performance to an existing cold water pressure washer without replacing your entire system. Designed for pressure washers delivering 6–10 GPM and up to 3,200 PSI, the 9400 Series is ideal for industrial facilities, fleet maintenance, manufacturing plants, food processing operations, and equipment wash bays where hot water is essential for removing grease, oil, and stubborn buildup.

Available in oil-fired and natural gas-fired models, the 9400 Series uses Hotsy's high-efficiency vertical heating coil to quickly heat pressurized water for faster, more effective cleaning. A built-in flow switch automatically controls burner operation, while 115V power and ETL certification make installation straightforward. Whether you're upgrading an existing stationary pressure washer or building a custom cleaning system, the 9400 Series provides a reliable way to add hot water performance.



9400 Series Models

Model Min GPM Max GPM Max PSI Power Amps BTU/hr Fuel
9450 6 10 3,200 115V / 1PH 8 550,872 Oil-Fired
9452 6 10 3,200 115V / 1PH 1 540,000 Natural Gas
9460 6 10 3,200 115V / 1PH 8 720,603 Oil-Fired
9462 6 10 3,200 115V / 1PH 1 950,000 Natural Gas

Spec Sheet

HOTSY 9400 Series Hot Water Heater Module,  6–10 GPM | 3200 PSI Max ↓ DOWNLOAD

Owner's Manual

Owner's Manual ↓ DOWNLOAD
HOTSY 9400 Series Hot Water Heater Module, 6–10 GPM | 3200 PSI Max
