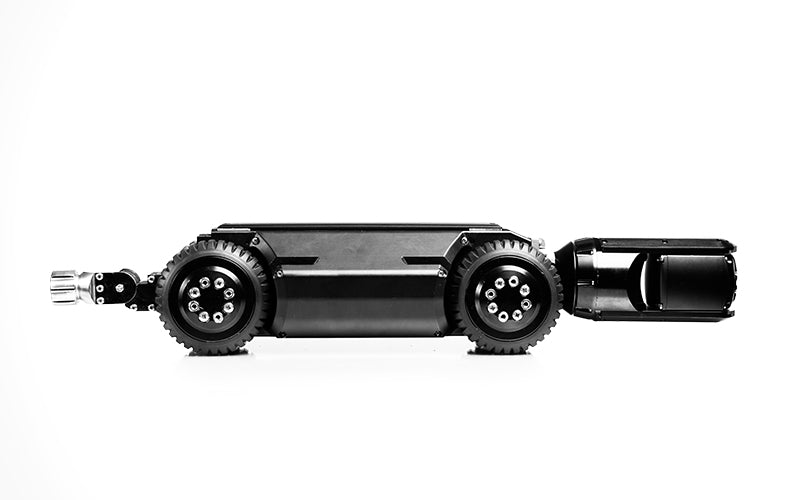

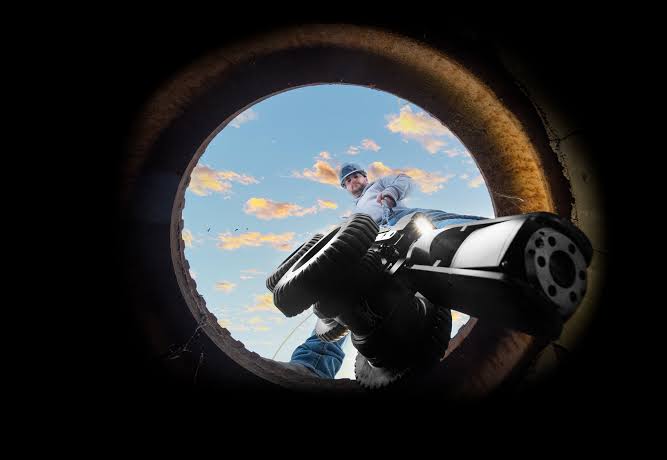

The Pipe Trekker A-200 pipe inspection crawler gives municipalities, contractors, and inspection crews a portable platform for sewer, stormwater, and pipeline inspections. Built for pipes 8" and larger, the A-200 combines magnetically coupled drives, up to 130 lb of pull force, Full HD PTZ imaging, and a motorized camera lift in a rugged crawler that's waterproof to 50 m / 164'.
Choose the A-200S when portability and a straightforward battery-powered field setup are the priority. Step up to the A-200X for a powered tether reel, 10" rugged tablet, reporting software, and rear camera. Both packages use the same capable sewer pipe inspection crawler platform and can be configured with different wheels, tracks, and power options to match the job.
Choose Your A-200 Package
- A-200S: Built around portability and mobility for crews that need to carry inspection equipment to remote manholes and work away from a dedicated CCTV truck. The S setup uses battery power and is designed around a lightweight handheld controller and manual tether management.
- A-200X: Includes the capabilities of the S package and adds a rear camera, powered tether reel with counter, 10" rugged tablet, and reporting software. The powered reel assists with tether payout and retrieval and can be used remotely or incorporated into a truck-based setup.
Shared A-200 Specifications
- Product Type: Pipe inspection crawler
- Minimum Pipe Diameter: 8" (200 mm)
- Maximum Diameter with Camera Centered: 36" (900 mm)
- Width: 6.0"–18.1" depending on configuration
- Height: 5.6"–21.7" depending on configuration
- Length: 20.6"–29.4" depending on configuration
- Weight: Up to 64.6 lb depending on configuration
- Construction: Stainless steel, machined aluminum, sapphire lens cover, and acrylic
- Depth Rating: 50 m / 164' water depth
- Operating Temperature: 23°F–104°F (-10°C–50°C)
- Maximum Speed: Up to 24 m/min
- Drive System: Magnetically coupled dual DC gear motors with gear train
- Steering: Skid style
- Pull Force: 130 lb (580 N)
- Sensors: Incline, roll, leak, pan/tilt, and distance counter
- Transmitter: Sonde
- Maximum Tether Available: 1,100' (310 m)
- Tether Diameter: 6.5 mm
- Tether Jacket: Polyurethane
- System Voltage: 19.2 VDC
- Battery: LiFe 6000 mAh
- Manufacturer Warranty: 1 year parts and labor; optional 2- and 3-year coverage available
Camera Specifications
- Camera: Full HD PTZ camera
- Resolution: 1080p / 2 MP
- Pan: 360° continuous
- Tilt: ±140° / 280° total
- Optical Zoom: 10x
- Digital Zoom: 12x
- Focus: Automatic or manual
- Exposure: Automatic or manual
- Camera Lighting: 900 lumens
- Auxiliary Lighting: 1,500 lumens

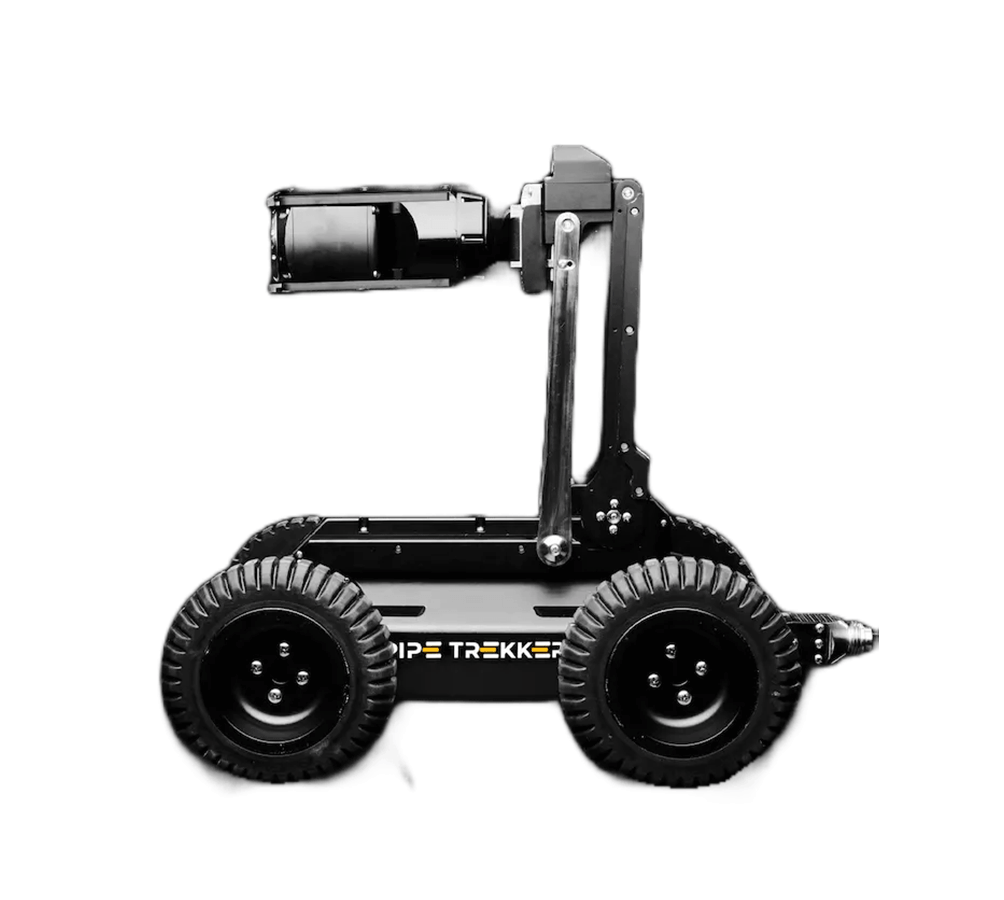

- Camera Positioning: Motorized lift arm
A-200S vs. A-200X Comparison
| Feature | A-200S | A-200X |
|---|---|---|
| Minimum Pipe Diameter | 8" | 8" |
| Camera Centering | Up to 36" | Up to 36" |
| Camera | Full HD PTZ | Full HD PTZ |
| Pull Force | 130 lb | 130 lb |
| Controller | Weatherproof handheld controller | 10" rugged tablet |
| Tether Reel | Manual | Powered reel with counter |
| Tether Retrieval | Manual | Powered retrieval with assisted payout |
| Maximum Tether Available | Up to 1,100' | Up to 1,100' |
| Rear Camera | Not included as an X-package upgrade | Included |
| Reporting Software | Optional software integrations | Included with rugged tablet |
| Hybrid Power | Options available | Supported through powered reel |
| Primary Advantage | Portability and straightforward field deployment | Powered tether handling and expanded inspection reporting |
Traction & Wheel Options
- Rubber Wheels: General-purpose wheel option suited to surfaces such as concrete and ductile iron pipe
- Carbide Wheels: Available for additional grip in PVC and clay pipe

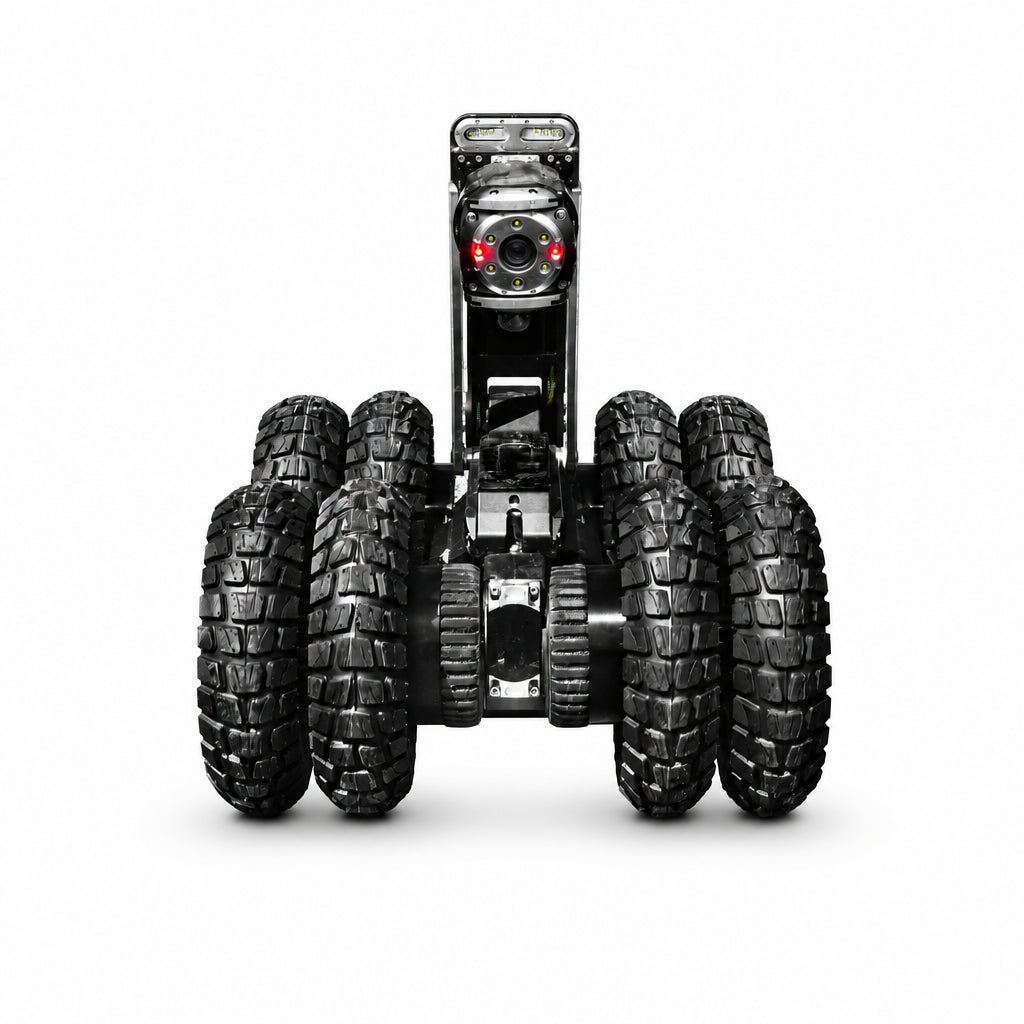

- Pneumatic Wheels: Available for increased traction, stability, and shock absorption in sediment, mud, and debris
- Tracks: Available for larger pipes and difficult conditions including mud, sand, gravel, silt, and obstacles
- Wheel Spacers: Available to increase crawler width and stability in larger-diameter pipes
Inspection & Reporting
- Basic Inspections: Record pipe inspection footage and document conditions in the field
- Software Integration: Pipe Trekker supports integrations with third-party pipe inspection software
- PACP Workflows: Compatible software integrations can support NASSCO-compliant PACP reporting
- A-200X Reporting: The rugged tablet provides built-in tools for creating jobs, adding observations to photos and videos, and generating inspection reports

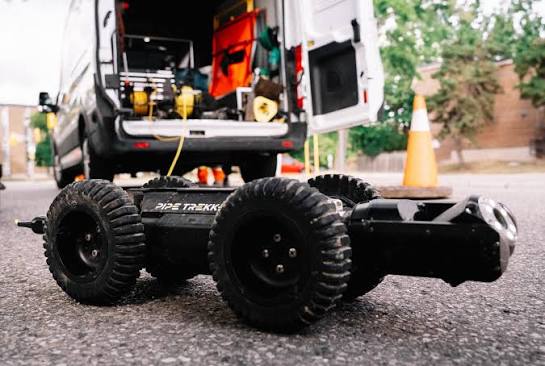

- Truck Integration: The A-200 platform can move between portable field use and more traditional truck-based inspection setups
