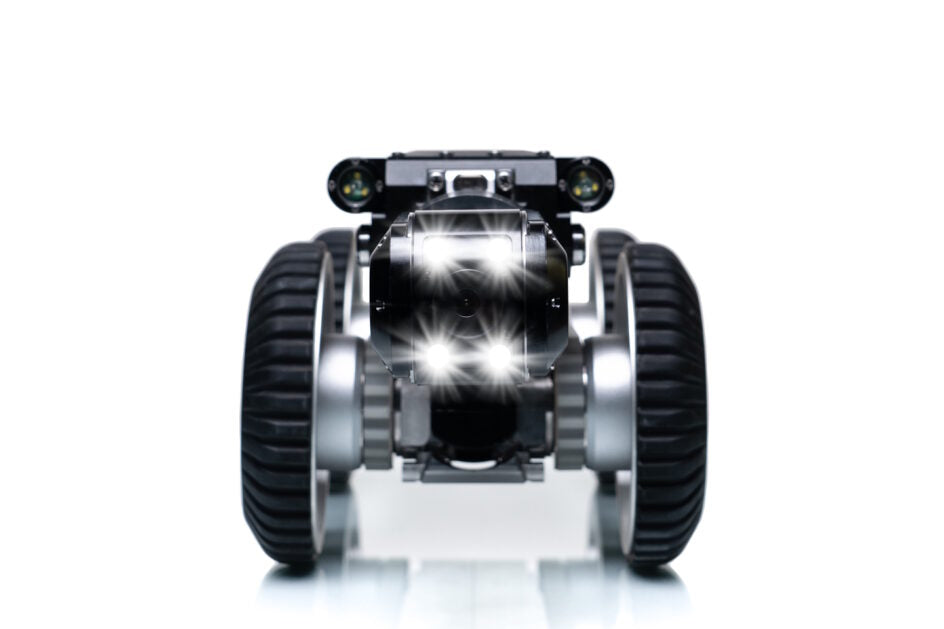

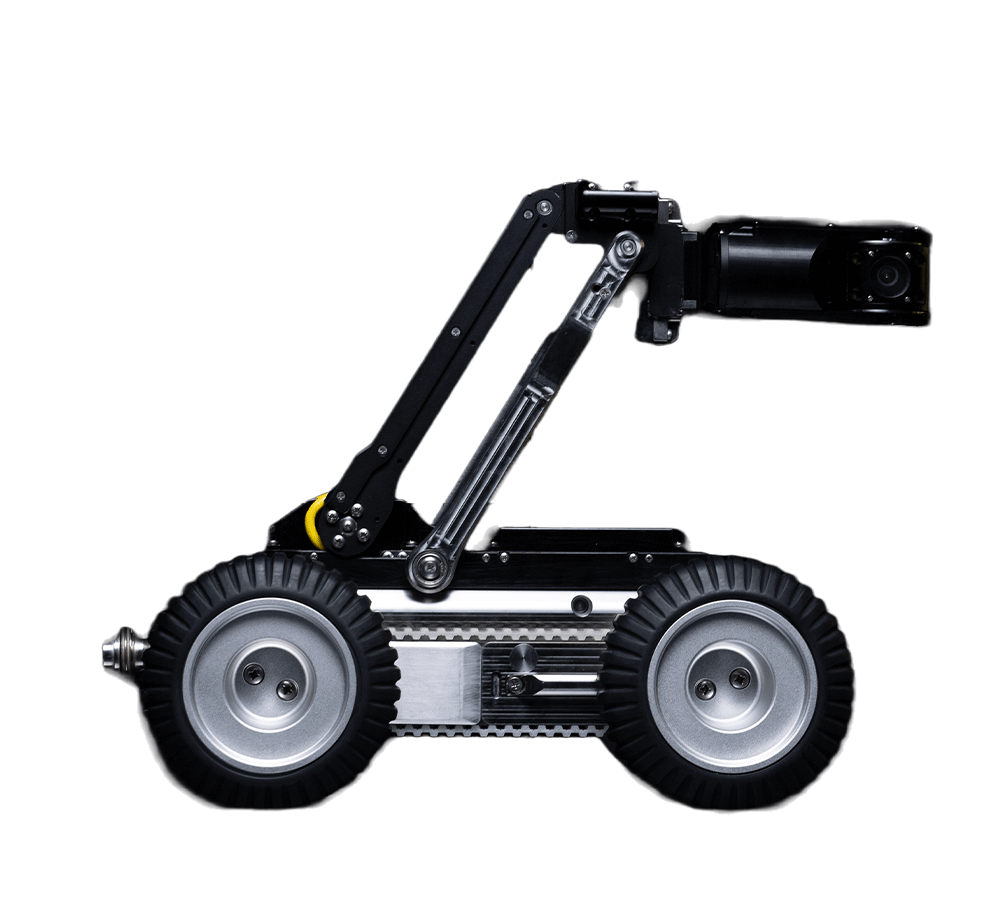

The Pipe Trekker A-150 pipe inspection crawler gives municipalities, contractors, and inspection crews a compact, portable platform for wastewater and sewer inspections. Built for pipes starting at 6", the fully steerable crawler uses a track-belt drive to move through disjoints, mud, debris, and other obstacles while a robotic lift arm helps center the camera in pipes up to 24".
Choose the A-150S when portability and a straightforward battery-powered setup are the priority. Step up to the A-150X when you want powered tether handling, tablet-based controls and reporting, and additional traction options. Both packages use the same capable portable sewer inspection crawler platform with Full HD pan/tilt imaging and a 50 m / 164' depth rating.
Choose Your A-150 Package
- A-150S: The portability-focused package uses a handheld controller, counter reel, and battery-powered crawler. Its compact two-case setup is designed to be carried into remote inspection locations where a larger truck-based system may not be practical.
- A-150X: Adds a powered counter reel and rugged tablet controller with Pipe Trekker inspection software. The powered reel assists tether payout and automatically retrieves the crawler, while the tablet adds field reporting capabilities. Carbide wheel options are also included for additional traction in PVC and clay pipe.
Shared A-150 Specifications
- Product Type: Portable pipe inspection crawler
- Minimum Pipe Diameter: 6" (150 mm)
- Maximum Diameter with Camera Centered: 24" (600 mm)
- Drive System: Fully steerable compact track-belt drive
- Camera: Full HD pan/tilt camera
- Camera Pan: 360°
- Camera Tilt: 270°
- Camera Positioning: Robotic motorized lift arm
- Wheel System: Modular external wheel kits
- Power: Battery-powered operation with hybrid power options available
- Depth Rating: 50 m / 164'
- Truck Integration: Hybrid and truck-mount options available
A-150S vs. A-150X Comparison
| Feature | A-150S | A-150X |
|---|---|---|
| Pipe Range | 6"–24" | 6"–24" |
| Camera | Full HD pan/tilt | Full HD pan/tilt |
| Camera Movement | 360° pan / 270° tilt | 360° pan / 270° tilt |
| Camera Lift | Robotic lift arm | Robotic lift arm |
| Drive System | Fully steerable track-belt drive | Fully steerable track-belt drive |
| Controller | Handheld controller | Rugged tablet controller |
| Reel | Counter reel | Powered counter reel |
| Tether Retrieval | Manual | Automatic powered retrieval |
| Assisted Tether Payout | No | Yes |
| Distance Tracking | Counter reel | Powered counter reel with on-screen distance |
| Battery Operation | Yes | Yes |
| Hybrid Power | Options available | Yes, through powered reel |
| Reporting | Video and inspection data recording | Tablet-based inspection reporting and report generation |
| Carbide Wheel Options | Available separately | Included with X package |
| Waterproof Rating | 50 m / 164' | 50 m / 164' |
| Primary Advantage | Maximum portability and simple field deployment | Powered tether handling and expanded reporting capabilities |
Inspection & Reporting
- A-150S Workflow: The handheld controller provides a straightforward way to capture video and inspection data without adding unnecessary complexity to field inspections
- A-150X Workflow: The rugged tablet adds inspection reporting tools for creating jobs, documenting observations, capturing photos and videos, and generating reports
- Third-Party Integrations: Pipe Trekker supports integrations with inspection platforms including WinCan and other third-party software
- PACP Workflows: Compatible third-party software can be used when certified NASSCO PACP reporting is required
Traction & Pipe Conditions
- Track-Belt Drive: Helps the crawler move over pipe disjoints, mud, debris, and other obstacles
- Modular Wheels: External wheel kits increase traction and stability and can raise the crawler for larger pipe diameters
- Carbide Wheels: Provide additional grip in PVC and clay pipe and are included as an option with the A-150X package
