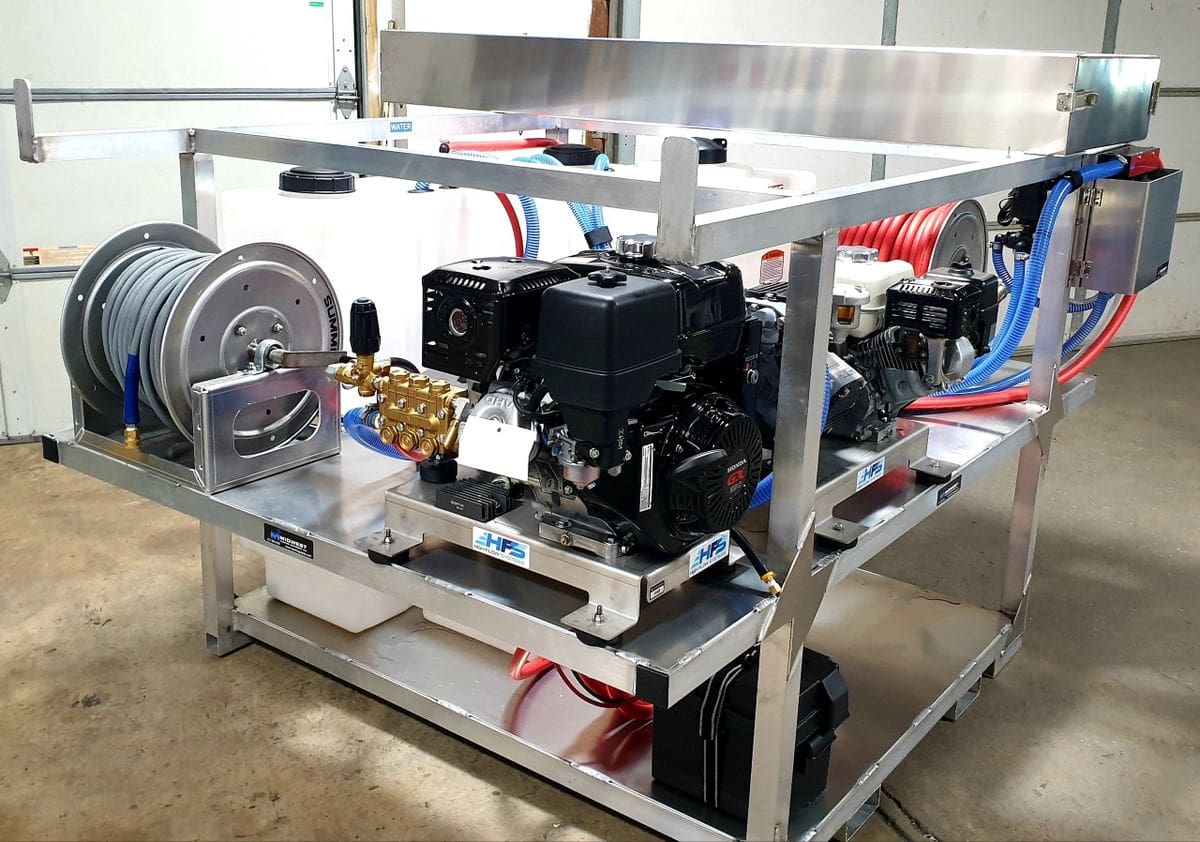

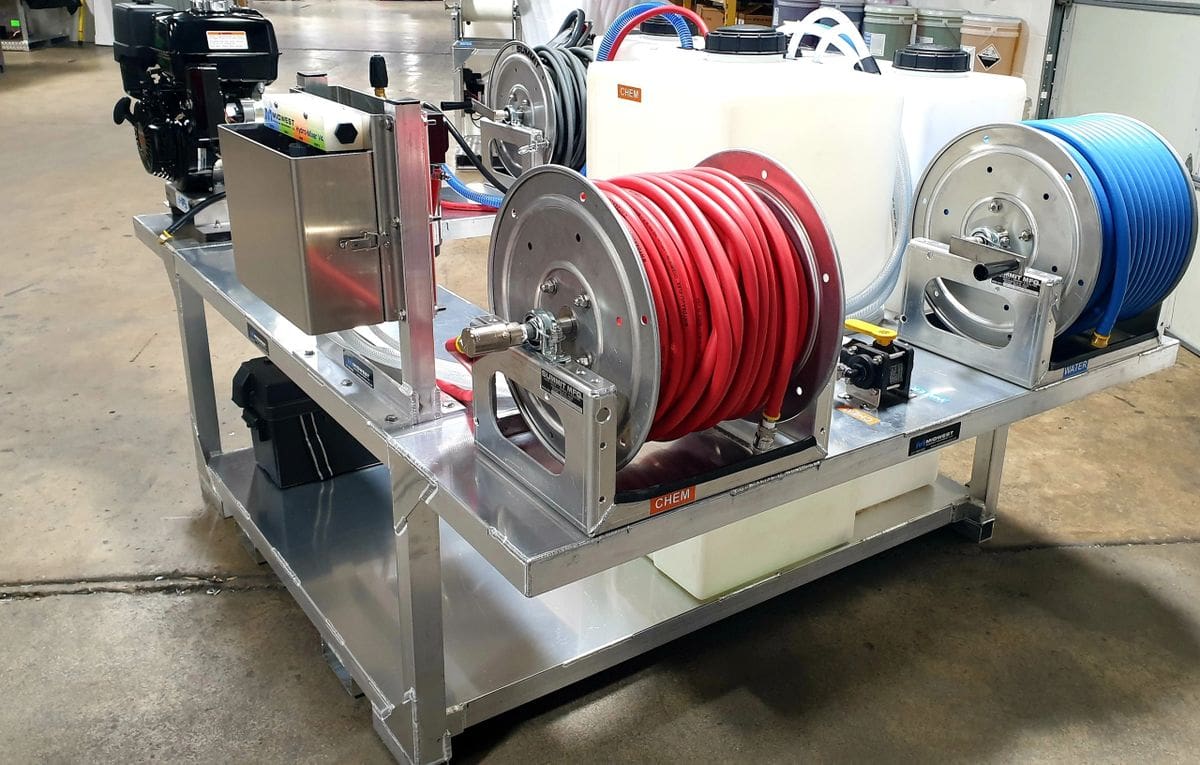

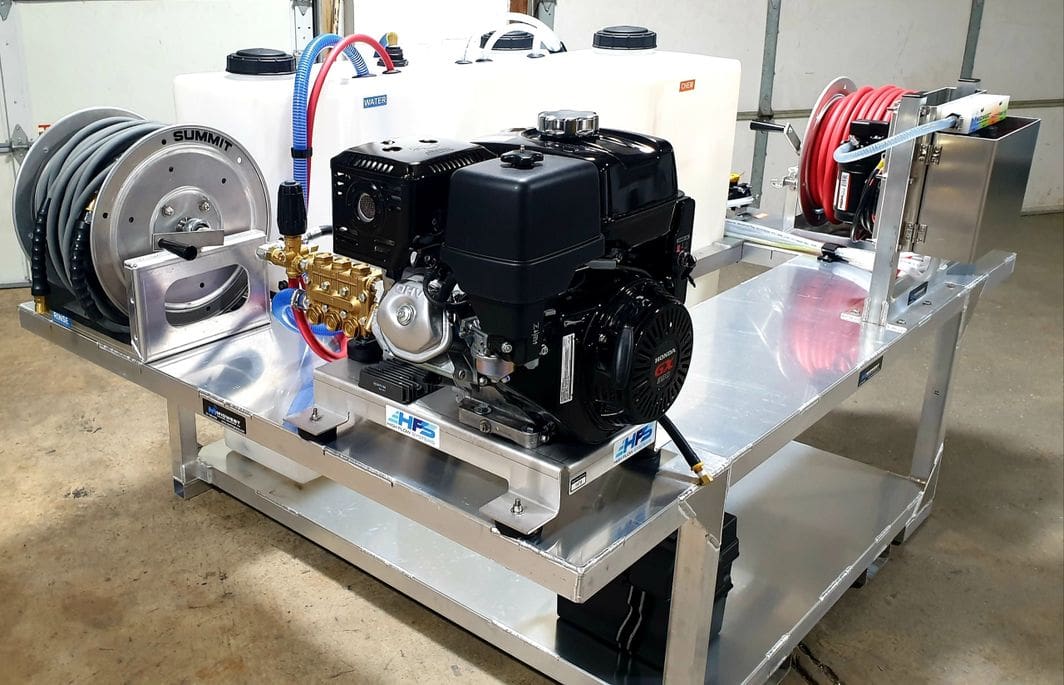

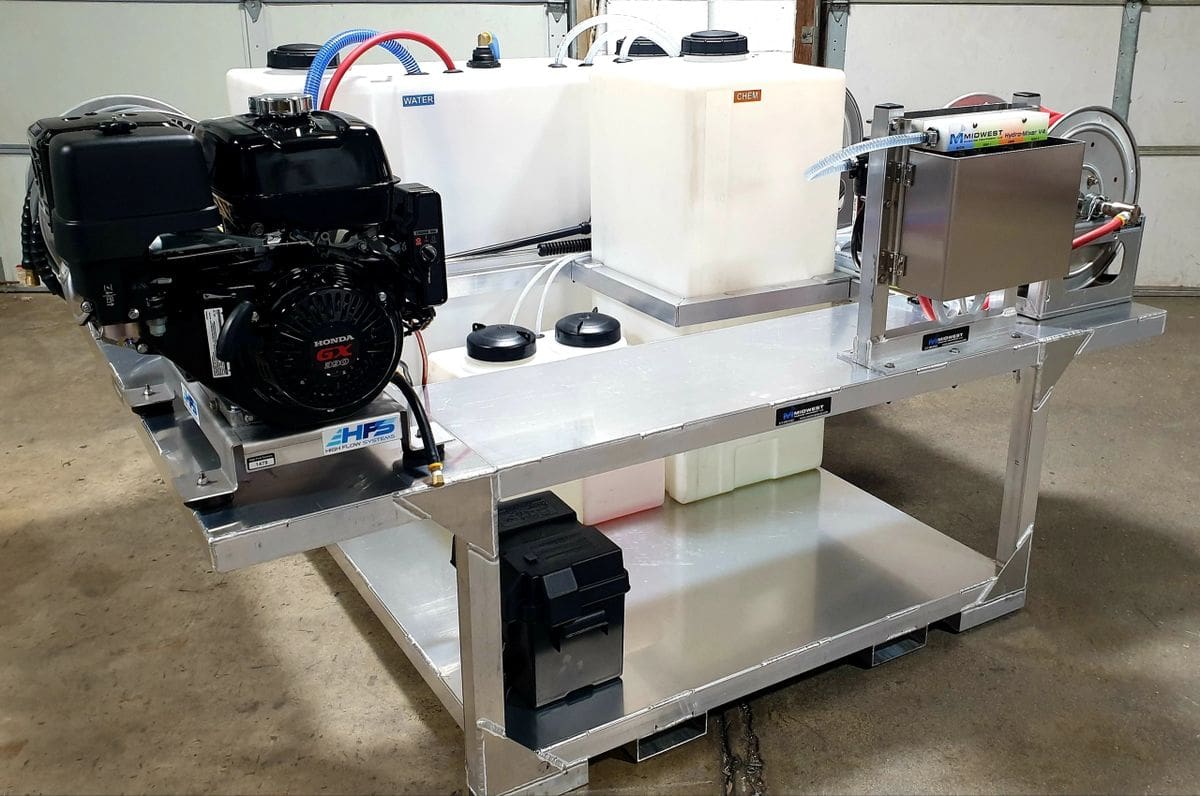

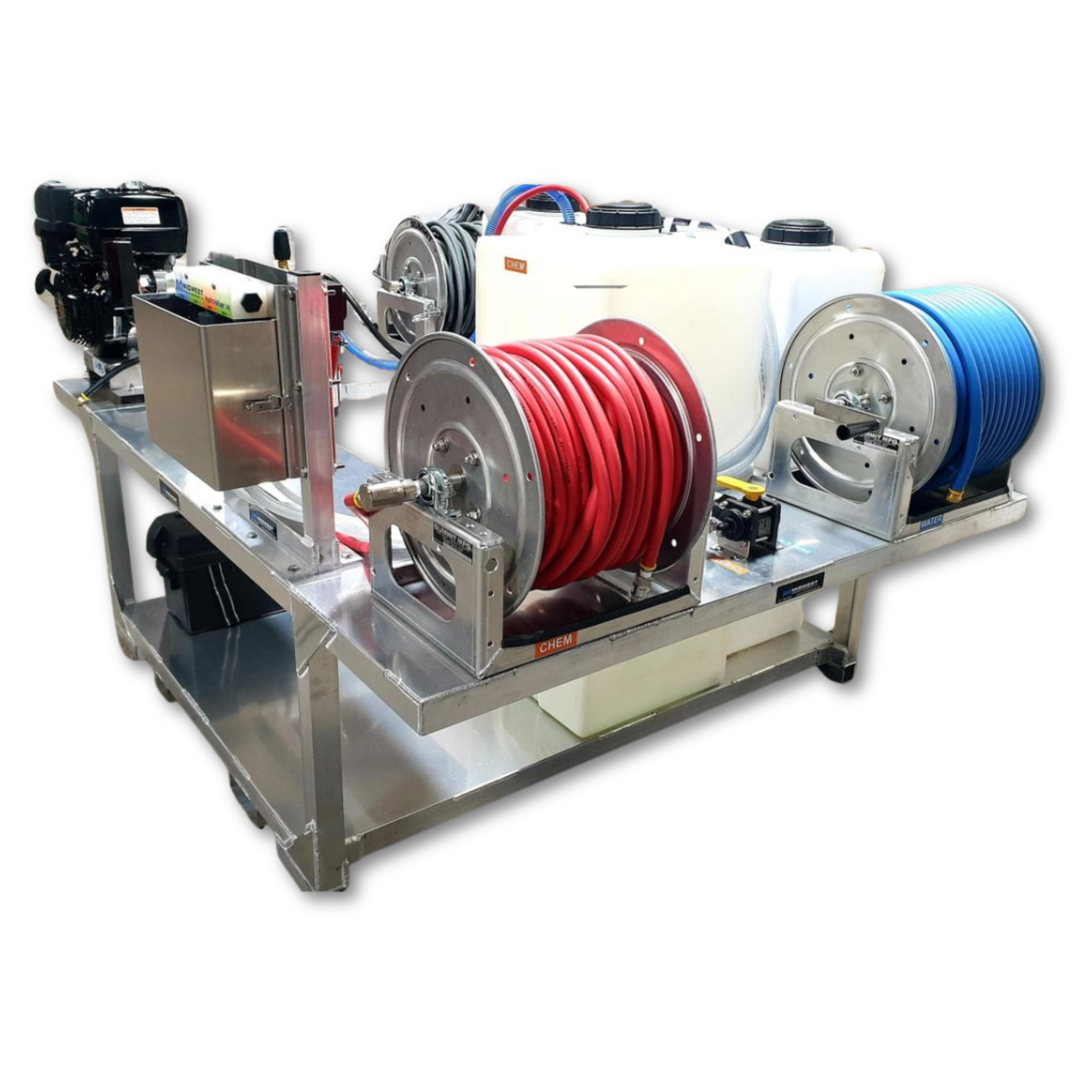

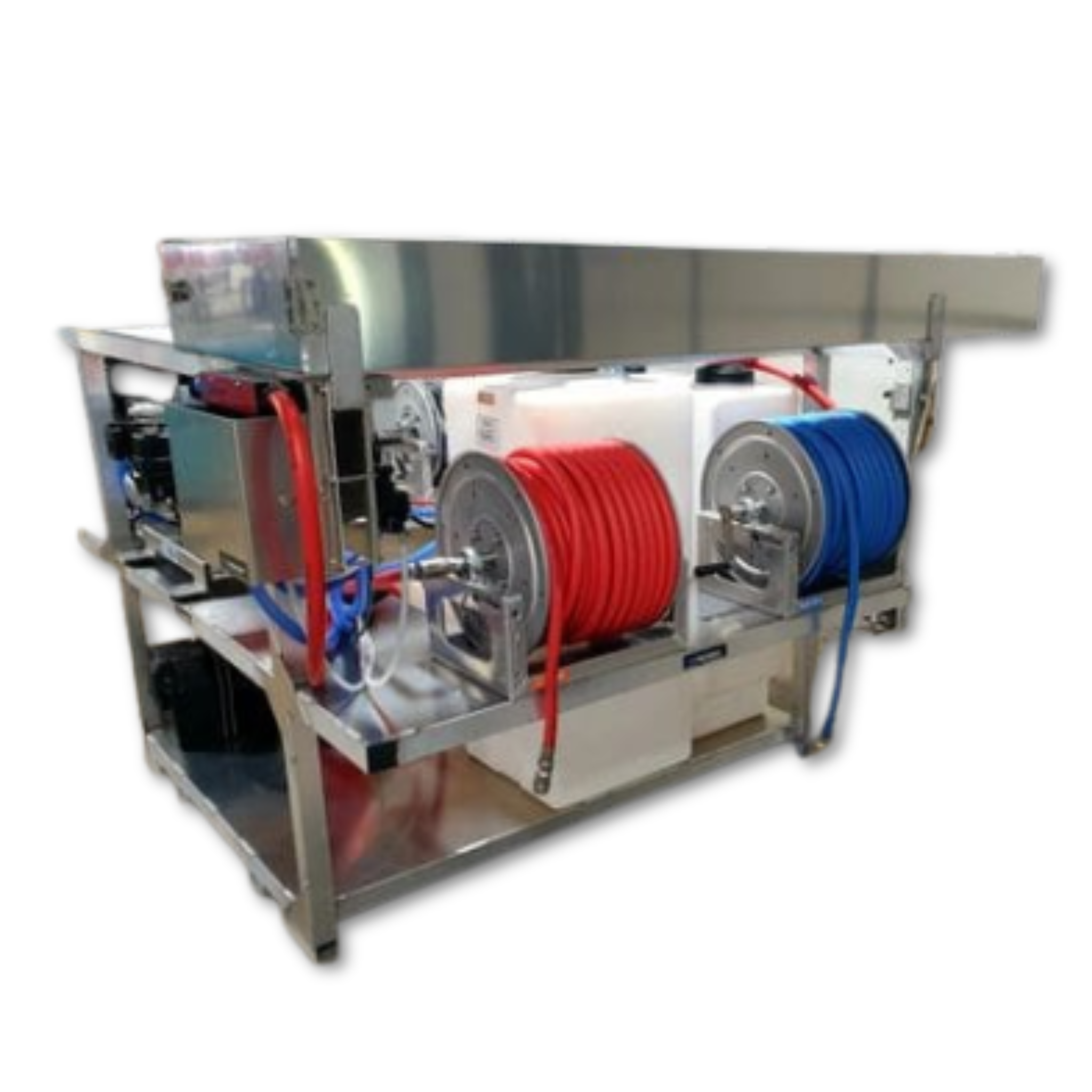

The PW Soft Wash & Pressure Washer Truck Skid puts a complete soft wash and pressure washing setup on one compact 48" x 60" platform. You get a 7 GPM Remco Fatboy 12V soft wash pump alongside a 5.7 GPM, 3000 PSI gear-drive pressure washer powered by an electric-start Honda iGX390.
With onboard water, SH, and soap tanks, three matching hose reels, and a Hydro-Mixer V4 proportioning system, this soft wash and pressure washer skid gives exterior cleaning contractors one organized setup for switching between chemical application and high-pressure cleaning. The compact footprint is designed to fit short truck beds while leaving room for an aftermarket ladder rack.
Soft Wash System
- Pump: Remco Fatboy on-demand 12V pump
- Maximum Flow: 7 GPM
- Electrical Protection: Fuse protection included
- Control: Heavy-duty on/off switch
- Chemical Hose: 200' x 1/2" soft wash hose
- Connections: Stainless steel quick connects on the soft wash system
Pressure Washer System
- Flow: 5.7 GPM
- Pressure: 3000 PSI
- Drive: Gear drive
- Engine: Electric-start Honda iGX390
- Bypass: Pressure washer is set up to bypass back to the water tank
- High-Pressure Hose: 200' x 3/8" non-marking gray hose
Tank Configuration
- Water Capacity: 100 gallons
- SH Tank: 55 gallons
- Soap Tanks: Two 7-gallon tanks
- Water Tank: Float shutoff included
- Supply Filtration: Strainers and filters on supply lines
- SH Filtration: SH-resistant filter with titanium clamp

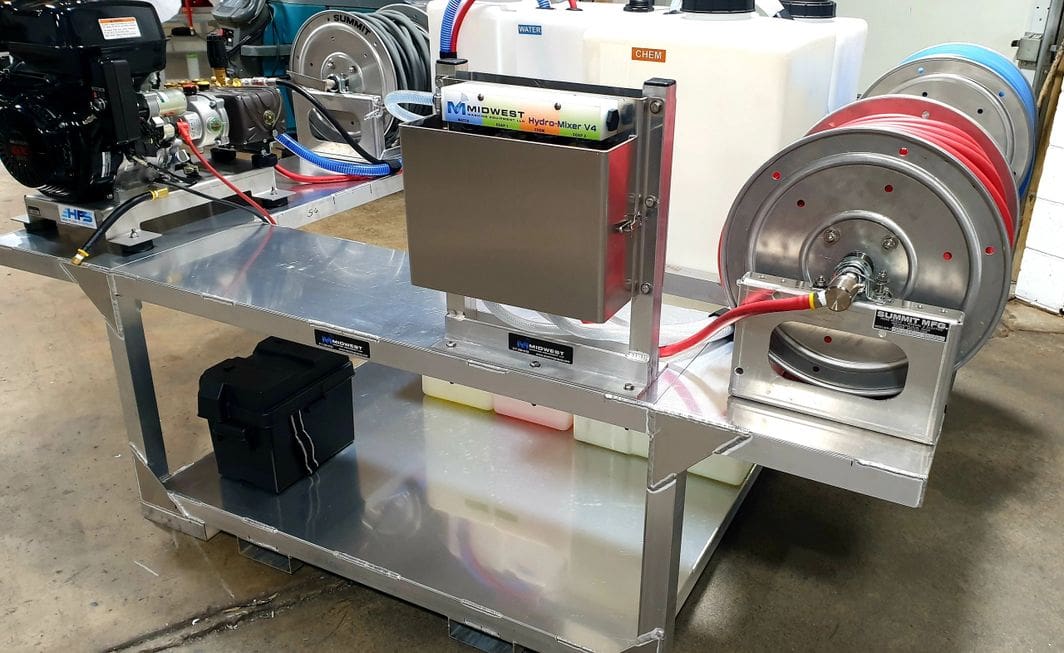

Hydro-Mixer V4
- Proportioning System: Hydro-Mixer V4
- Soap Control: Dual soap valves
- Protection: Heavy-duty cover
- Flush System: Manual flush valve

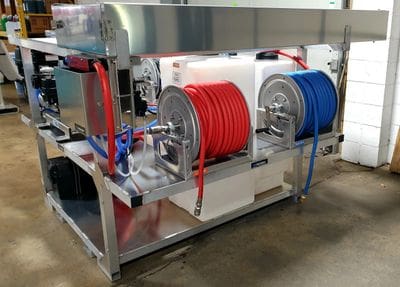

Hose & Reel Setup
- Hose Reels: Three matching 12" manual reels with aluminum frames and stainless steel internals
- Soft Wash Hose: 200' x 1/2"
- Water Supply Hose: 200' x 5/8"
- High-Pressure Hose: 200' x 3/8" non-marking gray hose
What’s Included
- Soft Wash Equipment: Soft wash gun, wand, and J-Rod with nozzles
- Pressure Washing Equipment: High-pressure gun, wand, and four nozzles
- Hose Reels: Three matching manual reels
- Hoses: Soft wash, water supply, and high-pressure hoses
- Filtration: Supply-line strainers and filters
- Skid: Fully welded heavy-duty aluminum platform with a curb-side shelf
Available Options
- Electric Water Supply Reel: Electric reel upgrade available
- Electric Soft Wash Reel: Electric reel upgrade available
- Electric Pressure Washer Reel: Electric reel upgrade available
- Deep-Cycle Marine Battery: Available as an option
- Remote Rinse Module: Optional remote rinse control
- Ladder Rack: Available as an option
- Surface Cleaner Tray: Holds up to a 24" surface cleaner and requires the ladder rack
- Remote Downstream Module: Available with injector
Specifications
- SKU: CYC-PW100
- Soft Wash Power: 12V electric
- Soft Wash Pump: Remco Fatboy on-demand pump
- Soft Wash Flow: 7 GPM
- Pressure Washer Flow: 5.7 GPM
- Pressure Washer Pressure: 3000 PSI
- Pressure Washer Engine: Honda iGX390 with electric start
- Pressure Washer Drive: Gear drive
- Water Capacity: 100 gallons
- SH Capacity: 55 gallons
- Soap Capacity: Two 7-gallon tanks
- Skid Dimensions: 48" x 60"
- Skid Material: Fully welded heavy-duty aluminum
- Battery: 12V deep-cycle battery not included with the standard configuration
